1987 Kawasaki X2 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

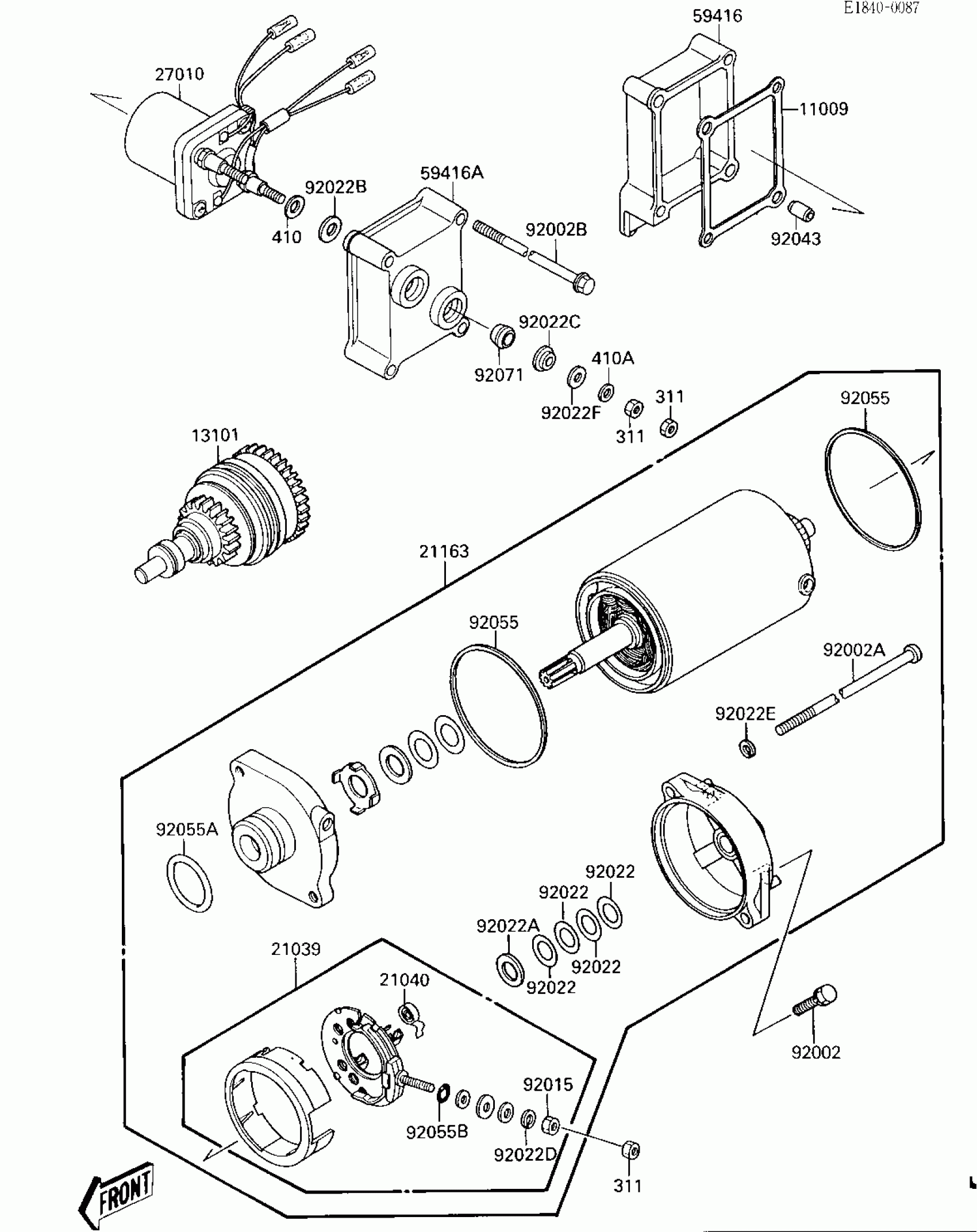

1987 Kawasaki X2 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,6X25

92002-3714

1
Out of stock

92002A

BOLT

92002-3744

1
Out of stock

92002B

BOLT

92002-3773

1
Out of stock

92015

NUT,6MM

92015-3710

1

$3.75

In stock

92022

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

92022A

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022B

WASHER

92022-3035

1
Out of stock

92022C

WASHER

92022-3036

1
Out of stock

92022D

WASHER,6MM

92022-3711

1
Out of stock

92022E

WASHER,SPRING,5MM

92022-3712

1
Out of stock

92022F

WASHER

92022-553

1
Out of stock

92043

PIN

92043-3715

1

$5.84

In stock

92055

RING-O,64MM

92055-1086

1

$9.68

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

311

NUT-HEX,6MM

311R0600

1

$0.75

In stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock

410A

1

$0.80

In stock
