1987 Kawasaki X2 Electrical Equipment Diagram

← All diagrams

Find the part on the Electrical Equipment diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

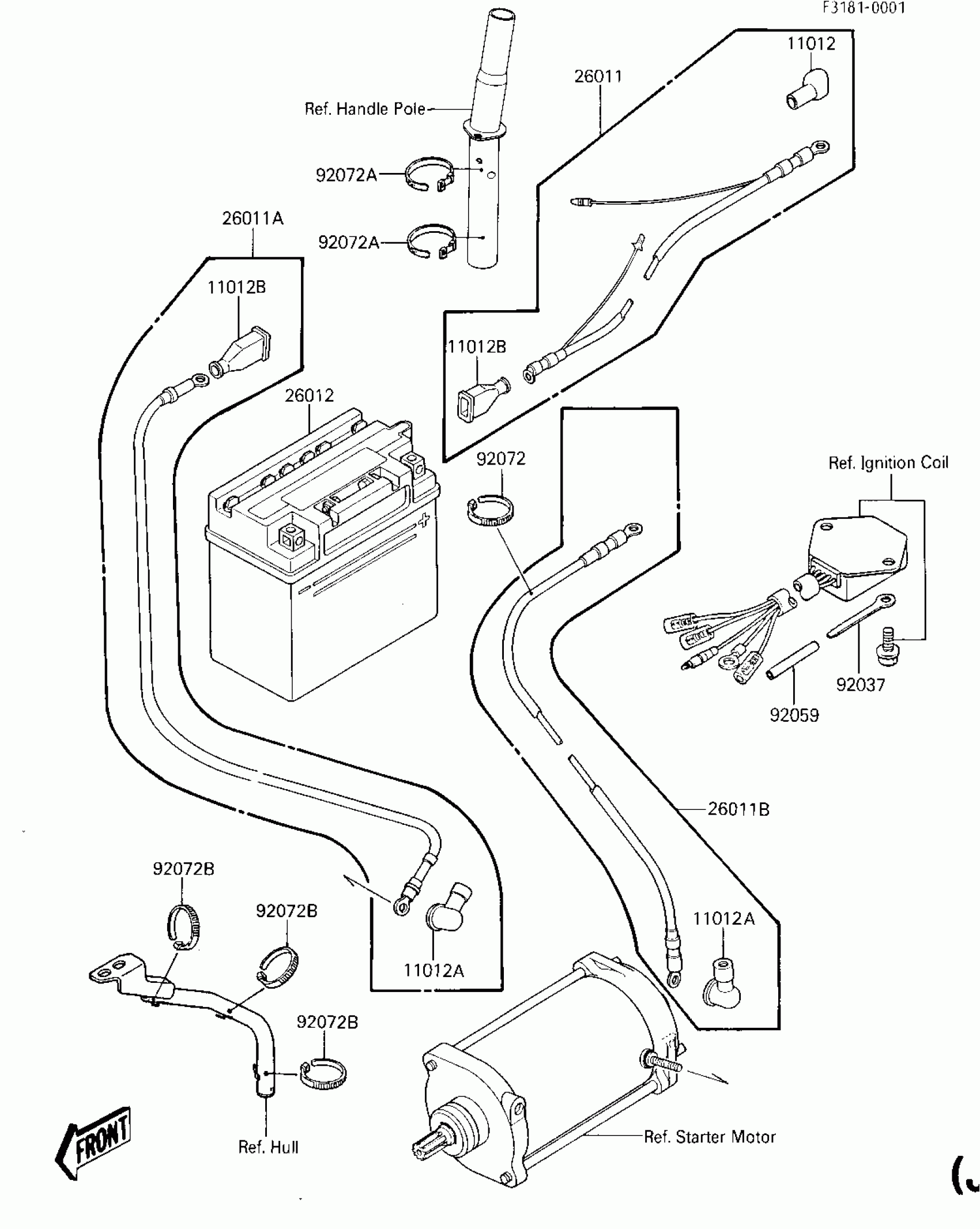

1987 Kawasaki X2 Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

11012A

CAP

11012-3004

1

$7.44

In stock

11012B

CAP.,TERMINAL

59176-501

1
Out of stock

26011

1

$34.73

In stock

26011A

1

$47.72

In stock

26011B

WIRE-LEAD,STARTER

26011-3717

1

$47.55

In stock

26012

YUA BAT YB16CL-B

K26012-3704

1

$126.40

In stock

92037

CLAMP,L=100

92037-3736

1

$4.85

In stock

92059

TUBE,VINYL,5X73

92059-3017

1
Out of stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=149

92072-031

1

$3.97

In stock

92072B

BAND

92072-3505

1
Out of stock
