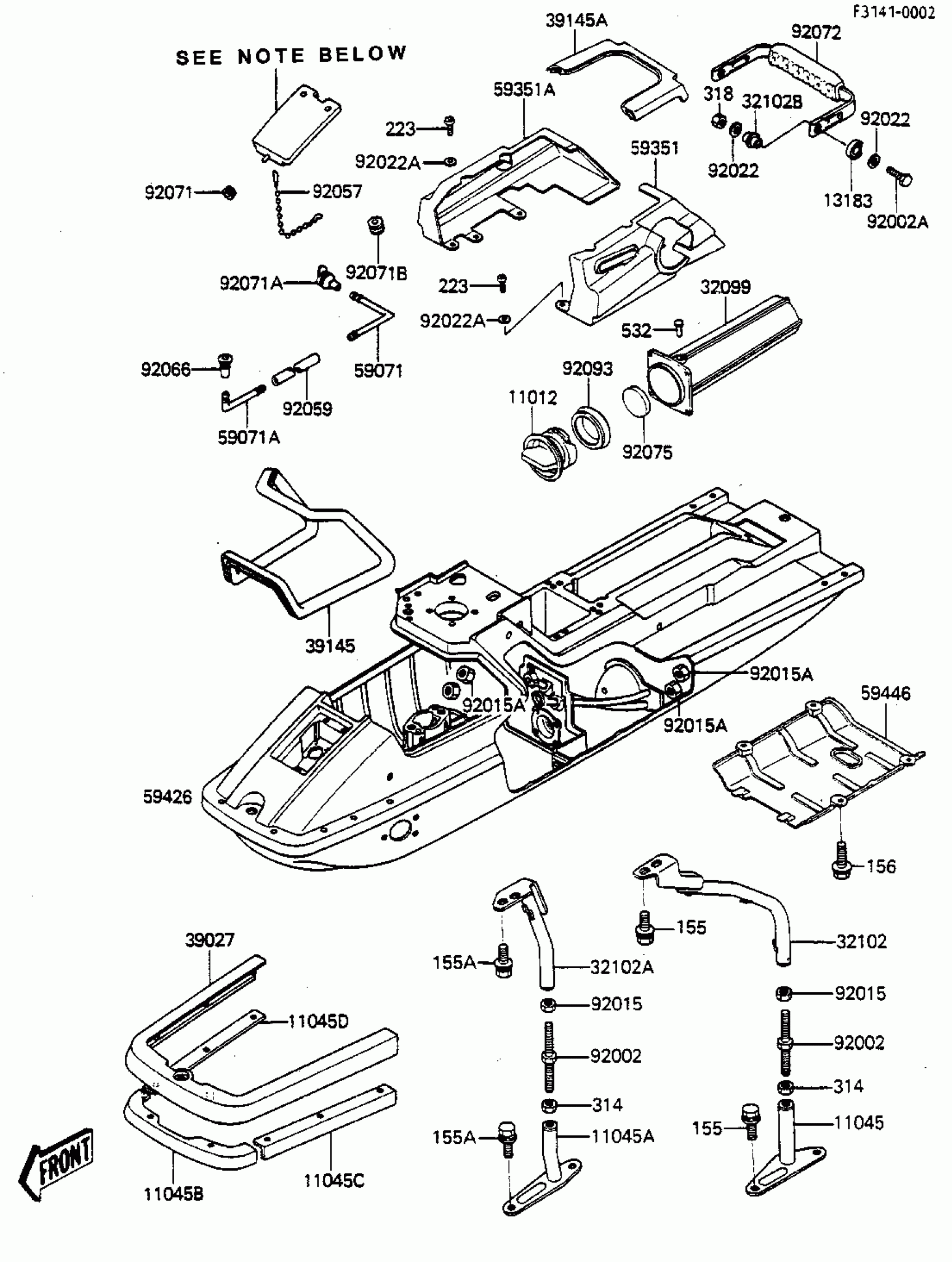

Find the part on the Hull diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki X2 Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3708

1
Out of stock

11045

BRACKET,DECK,LH

11044-3710

1
Out of stock

11045A

BRACKET,DECK,RH

11044-3711

1
Out of stock

11045B

BRACKET,BUMPER,CNT

11045-3710

1
Out of stock

11045C

BRACKET,BUMPER,LH

11045-3711

1
Out of stock

11045D

BRACKET,BUMPER,RH

11045-3712

1
Out of stock

13183

PLATE

13169-3714

1
Out of stock

14024

COVER-TANK CAP,JET WT

14024-3710-8C

1
Out of stock

32099

CASE,FIRE EXT.

32099-3705

1
Out of stock

32102

PIPE,DECK,LH

32033-3718

1

$151.72

In stock

32102A

PIPE,DECK,RH

32033-3719

1
Out of stock

32102B

PIPE

32102-3704

1
Out of stock

39027

BUMPER-FRONT

39027-3702

1

$259.40

In stock

39145

TRIM-SEAL

39145-3701

1
Out of stock

39145A

TRIM-SEAL,DECK

39145-3702

1
Out of stock

59071

JOINT

59071-3706

1

$9.41

In stock

59071A

JOINT

59071-3714

1
Out of stock

59351

DECK,LH,JET WHITE

59351-3708-8C

1
Out of stock

59351A

DECK,RH,JET WHITE

59351-3709-8C

1
Out of stock

59426

HULL-COMP,JET WHITE

59426-5512-8C

1

$1,527.08

In stock

59446

COVER-JET PUMP

59446-3703

1
Out of stock

92002

BOLT,10MM

92002-3731

1
Out of stock

92002A

BOLT,8X30

92002-3742

1
Out of stock

92015

NUT,10MM

92015-3737

1

$5.73

In stock

92015A

NUT,20MM

92015-3738

1

$7.22

In stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92022A

WASHER

92022-567

1
Out of stock

92057

CHAIN,COVER,L=250

92057-3701

1
Out of stock

92059

TUBE,5.8X10.8X220

92059-3765

1

$7.24

In stock

92066

PLUG

92066-3706

1
Out of stock

92071

GROMMET

92071-3733

1

$3.71

In stock

92071A

GROMMET

92071-3736

1
Out of stock

92071B

GROMMET

92071-3737

1

$4.85

In stock

92072

BAND,TANDEM

92072-3711

1

$138.56

In stock

92075

DAMPER

92075-3719

1

$7.79

In stock

92093

SEAL,OSR70X82X7.5

92093-3704

1
Out of stock

155

1

$4.71

In stock

155A

BOLT-WSP-SMALL,8X18

155R0818

1
Out of stock

156

BOLT-WP,6X22

156R0622

1

$3.66

In stock

223

SCREW-PAN-WS-CROS,6X20

223R0620

1
Out of stock

314

1

$1.68

In stock

318

NUT-HEX-SMALL

318R0800

1

$3.33

In stock

532

RIVET-FLAT

532R0508

1
Out of stock
