1987 Kawasaki X2 Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1987 Kawasaki X2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

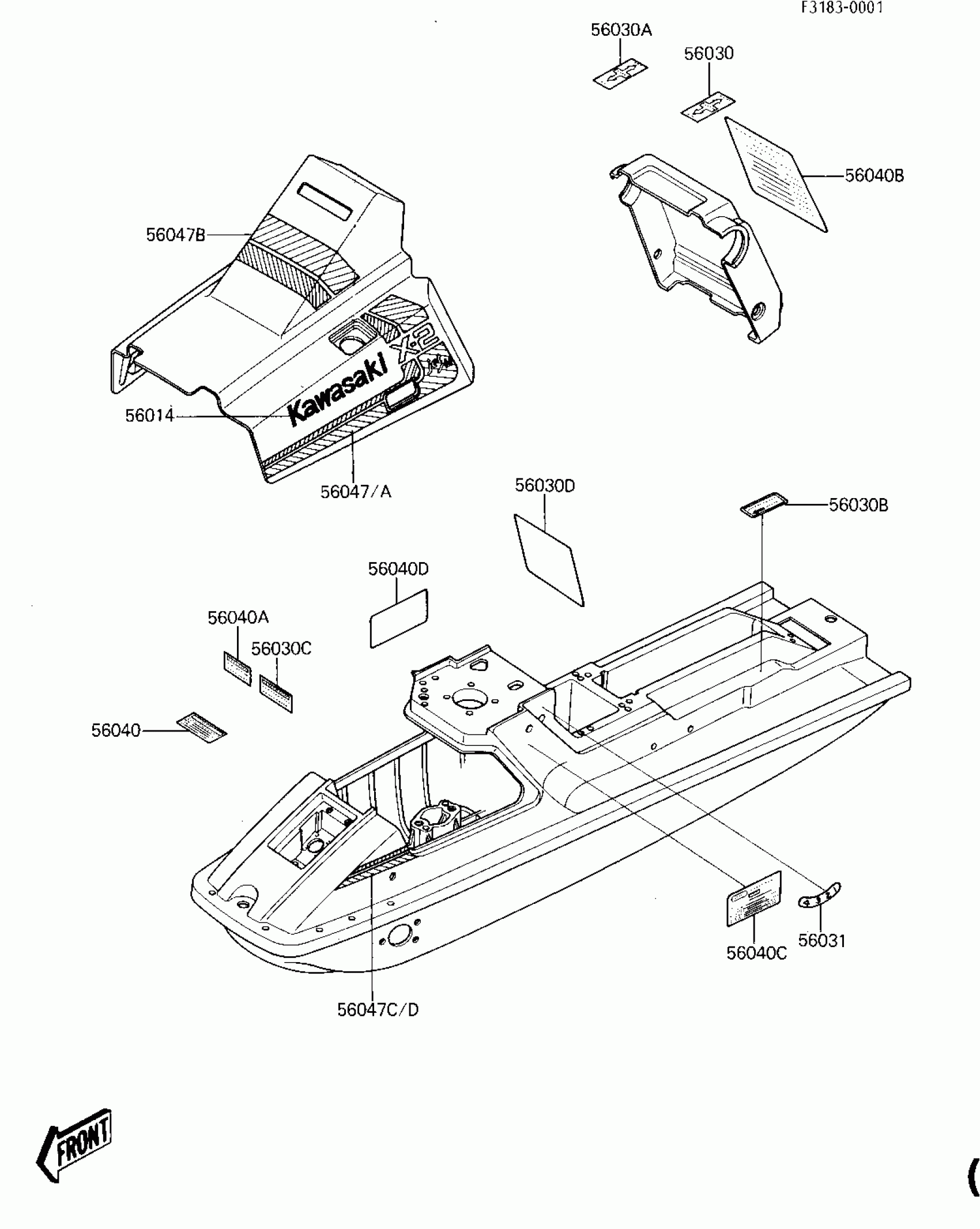

1987 Kawasaki X2 Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56014

EMBLEM,KAWASAKI

56014-1138

1

$2.44

In stock

56030

LABEL,NOZZLE

56030-3718

1

$1.02

In stock

56030A

LABEL,FUEL

56030-3719

1
Out of stock

56030B

LABEL,FIRE EXTINGUISHER

56030-3720

1
Out of stock

56030C

LABEL,OIL

56030-3721

1

$1.81

In stock

56030D

LABEL,LAUNCHING

56030-3723

1
Out of stock

56031

LABEL,MANUAL

56031-3705

1

$0.95

In stock

56040

LABEL,WARNING

56040-3711

1

$2.44

In stock

56040A

LABEL-WARNING,FUEL

56040-3712

1
Out of stock

56040B

LABEL-WARNING,SAFETY

56040-3713

1
Out of stock

56040C

LABEL,WARNING

56040-3714

1

$5.37

In stock

56040D

1

$1.93

In stock

56047

PATTERN

56047-1112

1

$21.86

In stock

56047A

PATTERN

56047-1113

1

$16.85

In stock

56047B

PATTERN

56047-1114

1

$7.66

In stock

56047C

PATTERN

56047-1115

1

$13.73

In stock

56047D

PATTERN

56047-1116

1

$13.73

In stock
