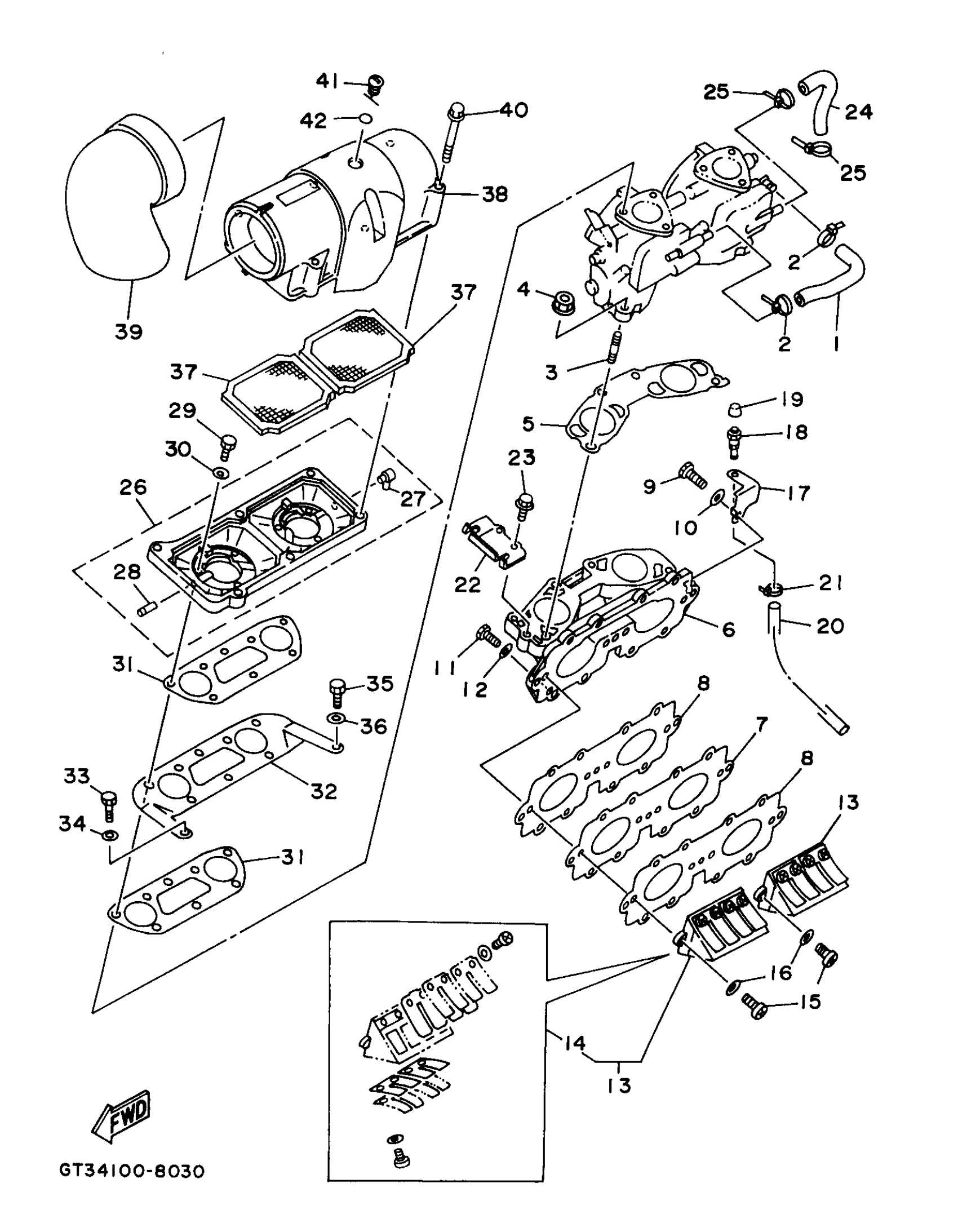

Yamaha WVT700W (WAVEVENTURE 700) 1998 INTAKE Diagram

#

Description
Price

1

PIPE 3

62T-24313-01-00

$10.75

2

CLAMP

90465-10098-00

$2.24

3

BOLT, STUD

90116-08M60-00

$4.48

4

NUT

90179-08M15-00

$6.83

5

. GASKET, MANIFOLD

62T-13556-00-00

$12.15

6

MANIFOLD, INTAKE

62T-13555-00-00

$129.84

7

. PLATE,REED VALVE

62T-13624-00-00

$19.39

8

. GASKET

62T-13566-00-00

$9.11

9

BOLT(3RV)

97014-06035-00

$1.54

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

BOLT(62Y)

97013-06025-00

$1.33

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

REED VALVE ASSY

62T-13610-00-00

$159.69

14

. REED SET

62T-W0004-00-00

$75.23

15

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.31

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

PLATE

62T-14243-01-00

$18.49

18

NIPPLE, GREASE

61L-5169A-00-00

$8.94

19

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

20

HOSE (L445)

90445-09M21-00

Unavailable

21

CLAMP

90465-10098-00

$2.24

22

PLATE

62T-14527-02-00

$18.49

23

BOLT, WITH WASHER(61B)

97513-06516-00

Unavailable

24

PIPE 4

62T-24314-01-00

$8.61

25

CLAMP

90465-10098-00

$2.24

26

COVER, CARBURETOR 2

62T-14284-01-8S

$146.25

27

NIPPLE, HOSE

6E5-11372-01-00

$10.43

28

. PIPE, JOINT

6H1-14485-00-00

$6.94

29

BOLT(62Y)

97013-06020-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

$2.80

31

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.69

32

PLATE

62T-14255-00-00

$44.76

33

BOLT (661)

97013-06012-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

$2.80

35

BOLT

90109-06M66-00

$10.99

36

WASHER, PLATE

90201-06M31-00

$2.80

37

ELEMENT, AIR CLEANER

62T-14451-00-00

$38.49

38

COVER, CARBURETOR 1

62T-14283-01-00

$50.73

39

PIPE

62T-14419-00-00

$77.60

40

BOLT, WITH WASHER

90119-05M02-00

$3.43

41

GROMMET

62T-14435-00-00

$3.79

42

. O-RING

93210-13M63-00

$3.69
