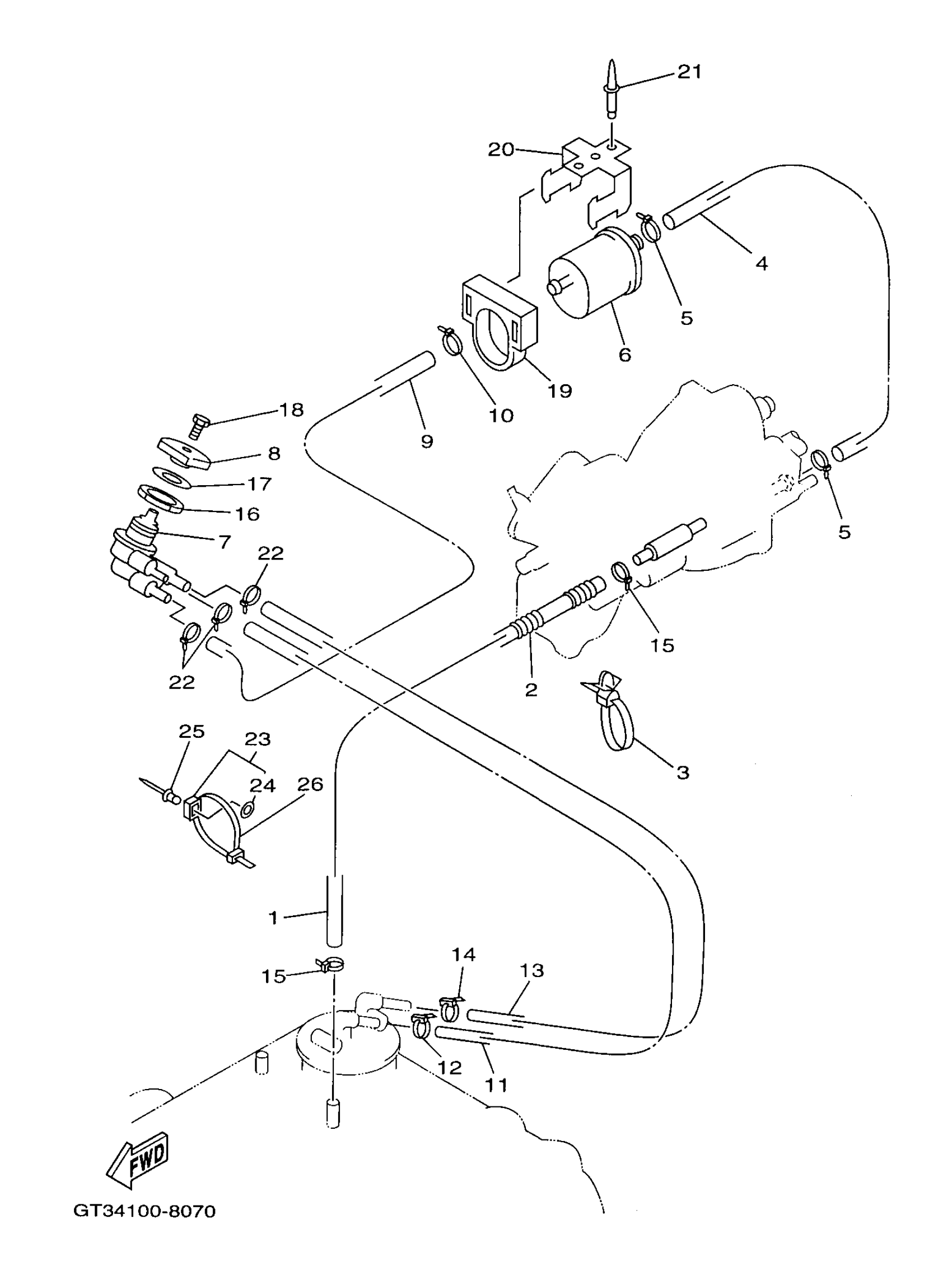

Yamaha WVT700W (WAVEVENTURE 700) 1998 FUEL Diagram

#

Description
Price

1

HOSE

90445-10ME2-00

Unavailable

2

HOSE(6TC)

90446-14M51-00

$5.67

3

CLAMP(62T)

90465-12M56-00

$6.64

4

HOSE (L400)

90445-10M43-00

$5.96

5

CLAMP

90465-10098-00

$1.68

6

FILTER ASSY

6K8-24560-21-00

$28.64

7

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

8

LEVER, COCK

6R7-24524-00-00

$7.03

9

HOSE (L1700)

90445-10M87-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

HOSE (L1040)

90445-10MA9-00

$56.27

12

CLAMP

90465-10098-00

$1.68

13

HOSE (L400)

90445-10M43-00

$5.96

14

CLAMP

90465-10098-00

$1.68

15

CLAMP

90465-10098-00

$1.68

16

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

17

WASHER, PLATE

90202-229U1-00

$14.35

18

SCREW, BIND

98980-04008-00

$3.05

19

HOLDER

EU0-67817-00-00

$13.33

20

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

21

RIVET (EU0)

90267-48938-00

$5.00

22

CLAMP

90465-10098-00

$1.68

23

CLAMP COMP (EU0)

90600-91736-00

Unavailable

24

. WASHER, PLAIN

90201-05925-00

Unavailable

25

RIVET, BLIND

90267-48802-00

$1.98

26

BAND (EU0)

90601-20009-00

$6.36
