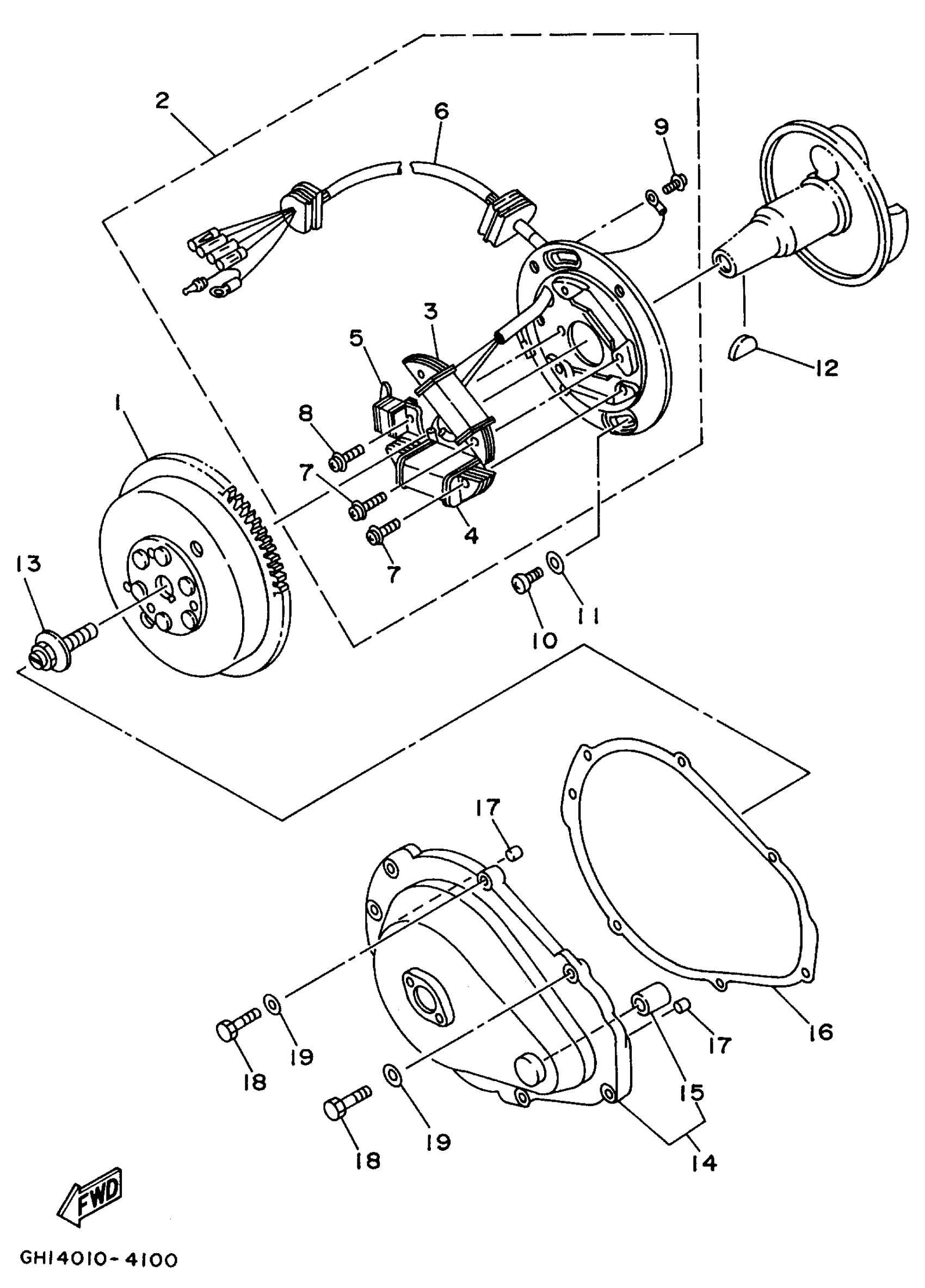

Find the part on the Generator diagram for your 1995 Yamaha Wave Venture (WVT700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Venture (WVT700T) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

62T-85550-01-00

1
Out of stock

2

BASE ASSY

6R8-85560-11-00

1
Out of stock

3

COIL, CHARGE

62T-85520-01-00

1

$160.99

In stock

4

. COIL, LIGHTING

62T-85533-00-00

1

$172.99

In stock

5

. COIL, PULSER

6M6-85580-00-00

1

$171.99

In stock

6

LEAD WIRE ASY

6R8-85515-10-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1

$3.84

In stock

8

. SCREW, WITH WASHER

97902-04122-00

1

$6.46

In stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

13

BOLT(63M)

90109-10M72-00

1

$31.99

In stock

14

COVER, FLYWHEEL

6R8-81337-00-8S

1

$111.49

In stock

15

. BUSH, SOLID

90380-12M29-00

1
Out of stock

16

. GASKET, HOLE COVER

6M6-81365-A0-00

1

$33.40

In stock

17

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

18

BOLT

90101-06M27-00

1

$2.90

In stock

19

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock
