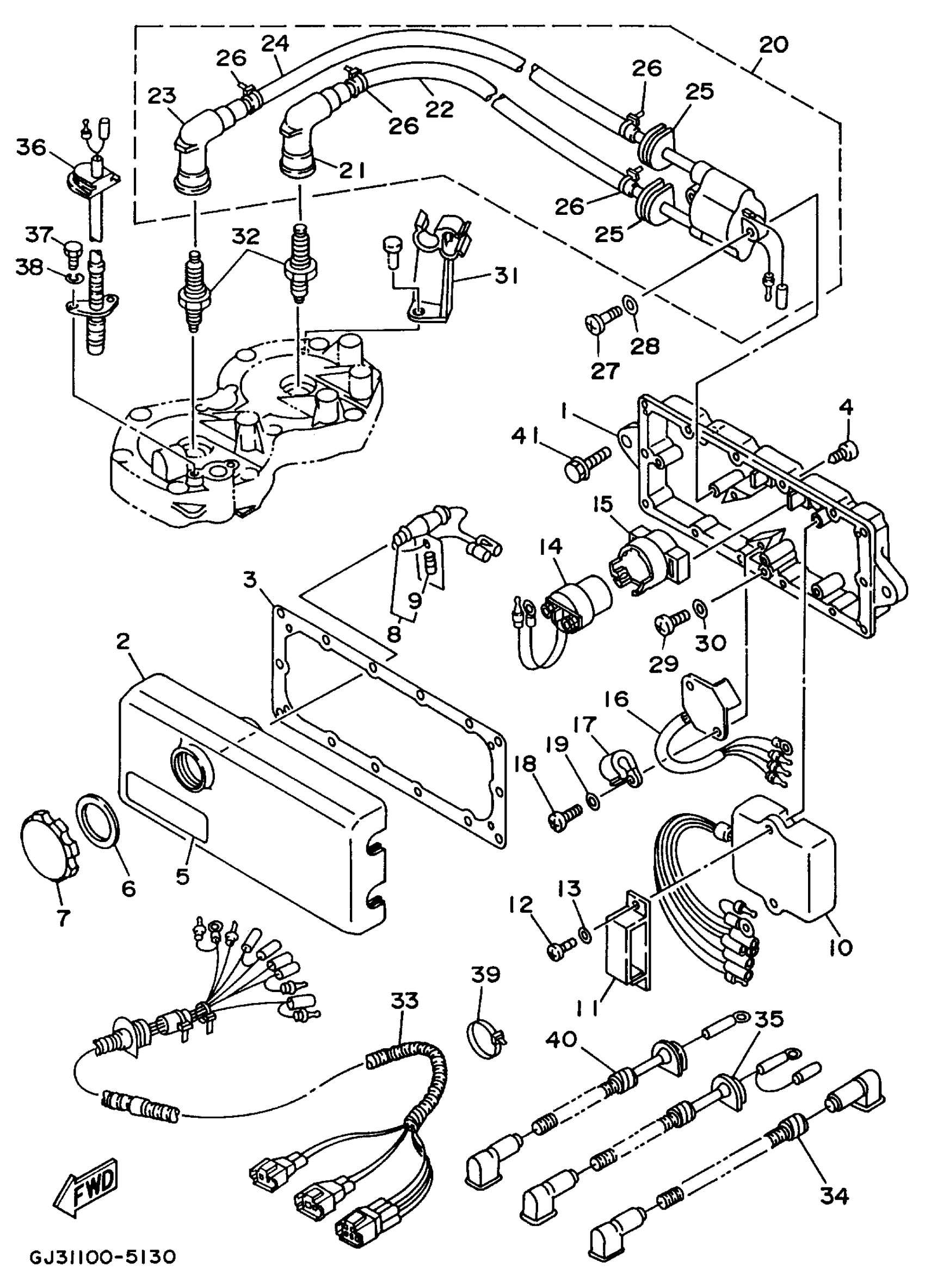

Yamaha WVT700T (WAVE VENTURE) 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

62L-8552A-00-8P

$159.69

2

COVER, CASE

6M6-8552E-01-00

$77.60

3

GASKET, TERMINAL

6M6-81921-00-00

$20.13

4

SCREW, TAPPING(65J)

97780-60625-00

$2.64

5

MARK 3

6R7-83623-40-00

$7.16

6

GASKET

6M6-81844-00-00

$10.99

7

CAP

6M6-8132W-00-00

$14.16

8

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

9

FUSE (10A)

1E6-82151-00-00

$5.80

10

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

11

CLAMP

90464-06M29-00

$6.27

12

SCREW, PAN HEAD

98580-06016-00

$2.96

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

STARTER RELAY ASSY

6G1-81941-10-00

$68.39

15

HOLDER, RELAY

6M6-81952-01-00

Unavailable

16

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

17

CLAMP

90465-08028-00

$4.31

18

SCREW, PAN HEAD

98580-06016-00

$2.96

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

IGNITION COIL ASSY

62E-85570-11-00

$198.21

21

. CAP, PLUG

62E-82371-10-00

Unavailable

22

TUBE, CORD 2

6R8-82352-00-00

Unavailable

23

. CAP, PLUG

62E-82371-10-00

Unavailable

24

TUBE, CORD 2

6R8-82352-00-00

Unavailable

25

GROMMET

90480-06M43-00

$5.69

26

CLAMP

90465-10098-00

$2.24

27

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.71

28

WASHER, PLAIN (646)

92990-06600-00

$2.80

29

SCREW, PAN HEAD

98580-06016-00

$2.96

30

WASHER, PLAIN (646)

92990-06600-00

$2.80

31

CLAMP, CORD

62T-82361-00-00

$10.99

32

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

33

EXTENSION, WIRE LEAD

63N-82553-00-00

$247.75

34

WIRE, LEAD

63N-82117-00-00

$116.40

35

WIRE, LEAD

63N-82117-11-00

$74.61

36

THERMOSWITCH ASSY

62T-82560-01-00

$199.99

37

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

38

WASHER, SPRING

92995-06100-00

$3.04

39

CLAMP (6E5)

90465-13M11-00

Unavailable

40

WIRE, LEAD

6M6-82117-21-00

Unavailable

41

BOLT, WITH WASHER

90119-089U2-00

$3.06
