1997 Yamaha Wave Runner Iii (WRA700V) Jet Unit Diagram

← All diagrams

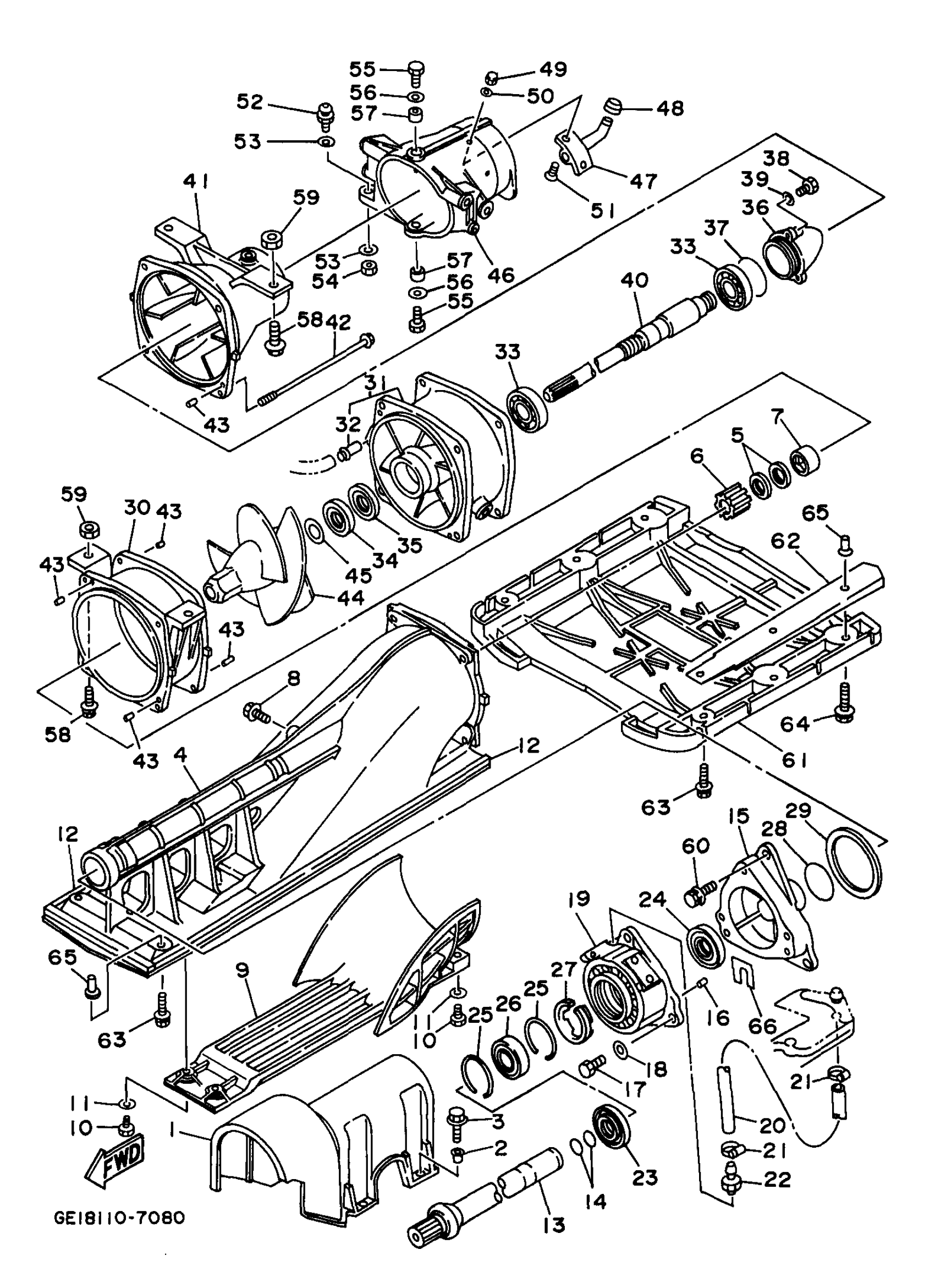

Find the part on the Jet Unit diagram for your 1997 Yamaha Wave Runner Iii (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner Iii (WRA700V) Jet Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

6R8-51381-01-00

1
Out of stock

2

COLLAR

90387-06M70-00

1
Out of stock

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

1
Out of stock

4

DUCT, INTAKE

6R8-51311-02-94

1
Out of stock

5

OIL SEAL(6R8)

93102-18M35-00

—
Out of stock

6

BUSHING, DRIVE SHAFT

6R8-45318-00-00

1
Out of stock

7

SPACER

6R8-51348-02-94

1
Out of stock

8

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

1
Out of stock

9

SCREEN, INTAKE

62G-51333-01-CA

1
Out of stock

10

BOLT (FJ0)

97080-06018-00

—
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

. FELT, PACKING

6R8-51367-01-00

1
Out of stock

13

SHAFT,COUPLER

6R8-51323-10-00

1
Out of stock

14

O-RING(6R7)

93210-17MA4-00

1
Out of stock

15

HOUSING, BEARING

62G-45331-01-94

1
Out of stock

16

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

17

BOLT (62G)

97095-08025-00

—
Out of stock

18

.. WASHER, PLATE

92990-08600-00

1
Out of stock

19

HOUSING, BEARING

61X-G5332-00-00

1
Out of stock

20

HOSE (L445)

90445-09M21-00

—
Out of stock

21

CLAMP

90465-10098-00

1
Out of stock

22

NIPPLE, HOSE

61L-45378-00-00

1
Out of stock

23

OIL SEAL(62T)

93101-25M55-00

—
Out of stock

24

OIL SEAL

93101-24001-00

—
Out of stock

25

CIRCLIP

93430-47M04-00

1
Out of stock

26

BEARING(62G)

93306-205U6-00

1
Out of stock

27

SPACER

63M-51348-00-00

1
Out of stock

28

O-RING

93210-35M72-00

—
Out of stock

29

SEAL

6K8-45127-00-00

1
Out of stock

30

HOUSING, IMPELLER

6R8-51312-03-94

1
Out of stock

31

DUCT, IMPELLER

6R7-51315-01-94

1
Out of stock

32

. NIPPLE

6K8-51129-00-00

1
Out of stock

33

BEARING (6K8)

93306-205U1-00

—
Out of stock

34

OIL SEAL(6R7)

93102-25M34-00

—
Out of stock

35

OIL SEAL(6R7)

93101-25M50-00

—
Out of stock

36

CAP

62T-51326-00-00

1
Out of stock

37

. O-RING

93210-46M16-00

1
Out of stock

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

39

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

40

SHAFT, DRIVE

6R8-45511-00-00

1
Out of stock

41

NOZZULE

6R8-51318-01-94

1
Out of stock

42

BOLT(6R8)

90101-06M04-00

—
Out of stock

43

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

44

IMPELLER

6R7-51321-00-8S

1
Out of stock

45

SPACER

62T-51348-00-00

1
Out of stock

46

NOZZLE,DEFLECTOR

6R8-51313-03-94

1
Out of stock

47

SPOUT

62G-62693-00-00

1
Out of stock

48

CAP, SPOUT

6R8-62695-00-00

1
Out of stock

49

.. NUT

95380-05800-00

1
Out of stock

50

. WASHER, PLAIN

92990-05200-00

1
Out of stock

51

SCREW(617)

98780-05012-00

—
Out of stock

52

. BOLT, JOINT

6R7-42316-00-00

1
Out of stock

53

WASHER, PLATE

90201-06M31-00

1
Out of stock

54

NUT(650)

95380-06700-00

—
Out of stock

55

BOLT, HEXAGON

97095-08018-00

1
Out of stock

56

.. WASHER, PLATE

92990-08600-00

1
Out of stock

57

COLLAR

90387-08M08-00

1
Out of stock

58

BOLT, WITH WASHER

90119-109U8-00

1
Out of stock

59

NUT

90179-10925-00

1
Out of stock

60

BOLT, WITH WASHER

90119-08907-00

1
Out of stock

61

PLATE 2

FJ0-62731-01-00

1
Out of stock

62

SPACER 1

GE1-6889B-00-00

1
Out of stock

63

BOLT, WITH WASHER

90119-06896-00

1
Out of stock

64

BOLT, WITH WASHER

90119-06930-00

1
Out of stock

65

NUT(FJ0)

90179-06947-00

—
Out of stock

66

SHIM (T=0.5)

GD0-67249-A0-00

1
Out of stock

66

SHIM (T=1.0)

GD0-67249-00-10

1
Out of stock
