1997 Yamaha Wave Runner III (WRA700V) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1997 Yamaha Wave Runner III (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

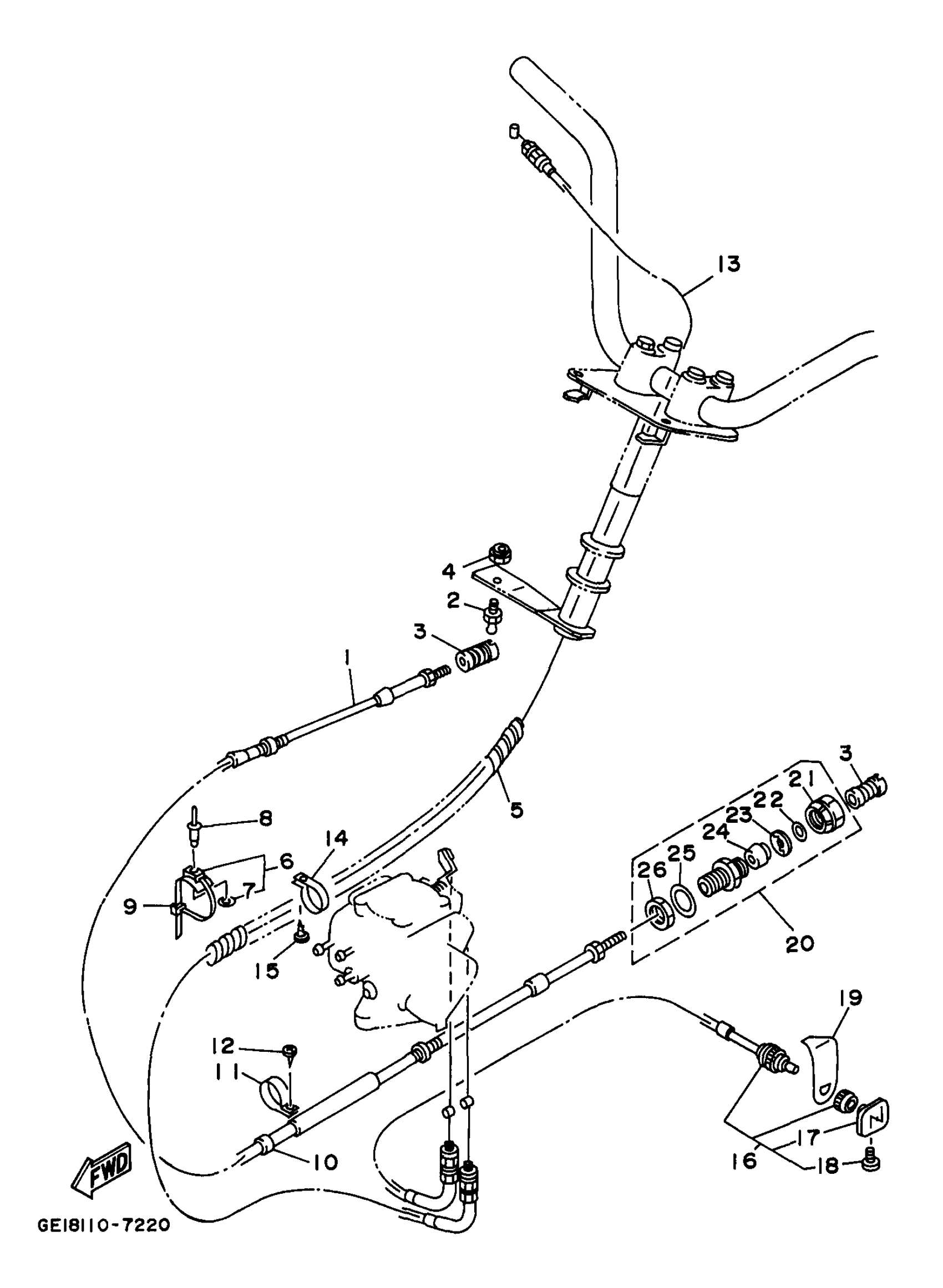

1997 Yamaha Wave Runner III (WRA700V) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

FJ0-61481-00-00

1

$197.49

In stock

2

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

3

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

4

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

5

SPIRAP 11

90699-36U01-00

1
Out of stock

6

CLAMP COMP (EU0)

90600-91736-00

1

$6.68

In stock

7

. WASHER, PLAIN

90201-05925-00

1
Out of stock

8

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

9

BAND (EU0)

90601-20009-00

1

$6.46

In stock

10

PACKING, HOSE 2

FJ0-67578-00-00

1
Out of stock

11

CLIP, NYLON 18

90600-918U3-00

1
Out of stock

12

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

1
Out of stock

13

CABLE, THROTTLE 1

EU0-67252-02-00

1

$121.99

In stock

14

CLIP, NYLON 18

90600-918U3-00

1
Out of stock

15

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

1
Out of stock

16

CABLE ASSY, CHOKE

GA9-U7242-32-00

1
Out of stock

17

KNOB, CHOKE

GP7-U724C-00-00

1
Out of stock

18

SCREW, KNOB

GP7-U724D-00-00

1
Out of stock

19

PLATE, CHOKE

FJ0-67243-00-00

1

$11.49

In stock

20

CONNECTOR, CABLE

EU0-67267-00-00

1

$43.19

In stock

21

. CAP

EU0-62694-00-00

1

$14.49

In stock

22

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

23

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

24

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

25

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

26

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock
