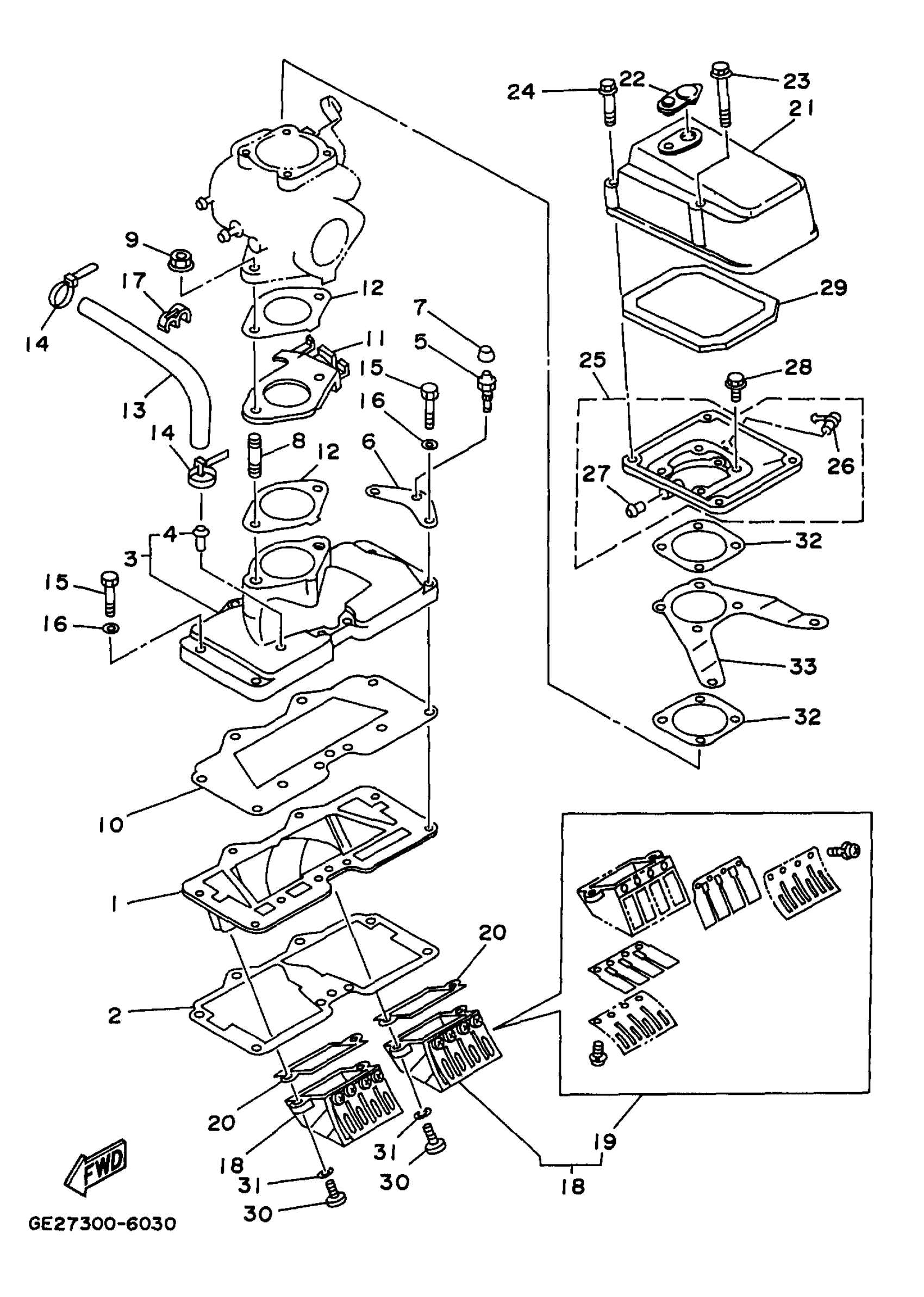

Yamaha WRA700V (WAVE RUNNER III) 6E18 1997 INTAKE Diagram

#

Description
Price

1

MANIFOLD 1

61X-13641-01-94

Unavailable

2

GASKET

61X-13566-A1-00

$12.62

3

MANIFOLD, INTAKE

61X-13555-01-8P

Unavailable

4

. PIPE, JOINT 4

652-24461-00-00

$5.31

5

NIPPLE, GREASE

61L-5169A-00-00

$7.40

6

PLATE

61L-14243-00-00

Unavailable

7

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

8

BOLT, STUD

90116-08M14-00

$5.07

9

NUT

90179-08M15-00

$6.37

10

GASKET

61X-13563-A1-00

Unavailable

11

PLATE

6M6-14527-02-94

Unavailable

12

GASKET, MANIFOLD

6M6-13556-A1-00

$5.91

13

HOSE (L400)

90445-10M43-00

$5.96

14

CLAMP

90465-10098-00

$1.68

15

BOLT(3RV)

97014-06035-00

$1.54

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

CLAMP(6R8)

90464-10M38-00

Unavailable

18

REED VALVE ASSY

61X-13610-01-00

Unavailable

19

. REED SET

61X-W0004-00-00

Unavailable

20

. GASKET, VALVE SEAT

61X-13621-A0-00

Unavailable

21

COVER, CARBURETOR 1

61X-14283-01-00

$42.41

22

GROMMET

6K8-14435-00-00

$11.35

23

BOLT, WITH WASHER

90119-05M02-00

$3.46

24

BOLT, WITH WASHER

90119-05M01-00

Unavailable

25

COVER, CARBURETOR 2

6R8-14284-00-98

Unavailable

26

NIPPLE, HOSE

6E5-11372-01-00

$9.99

27

. PIPE, JOINT

6H1-14485-00-00

$6.64

28

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

29

ELEMENT, AIR CLEANER

6M6-14451-00-00

Unavailable

30

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

31

WASHER, PLAIN (646)

92990-05600-00

Unavailable

32

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.99

33

PLATE

6R7-14255-00-00

Unavailable
