1997 Yamaha Wave Runner Iii (WRA700V) Gasket Kit Diagram

← All diagrams

Find the part on the Gasket Kit diagram for your 1997 Yamaha Wave Runner Iii (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

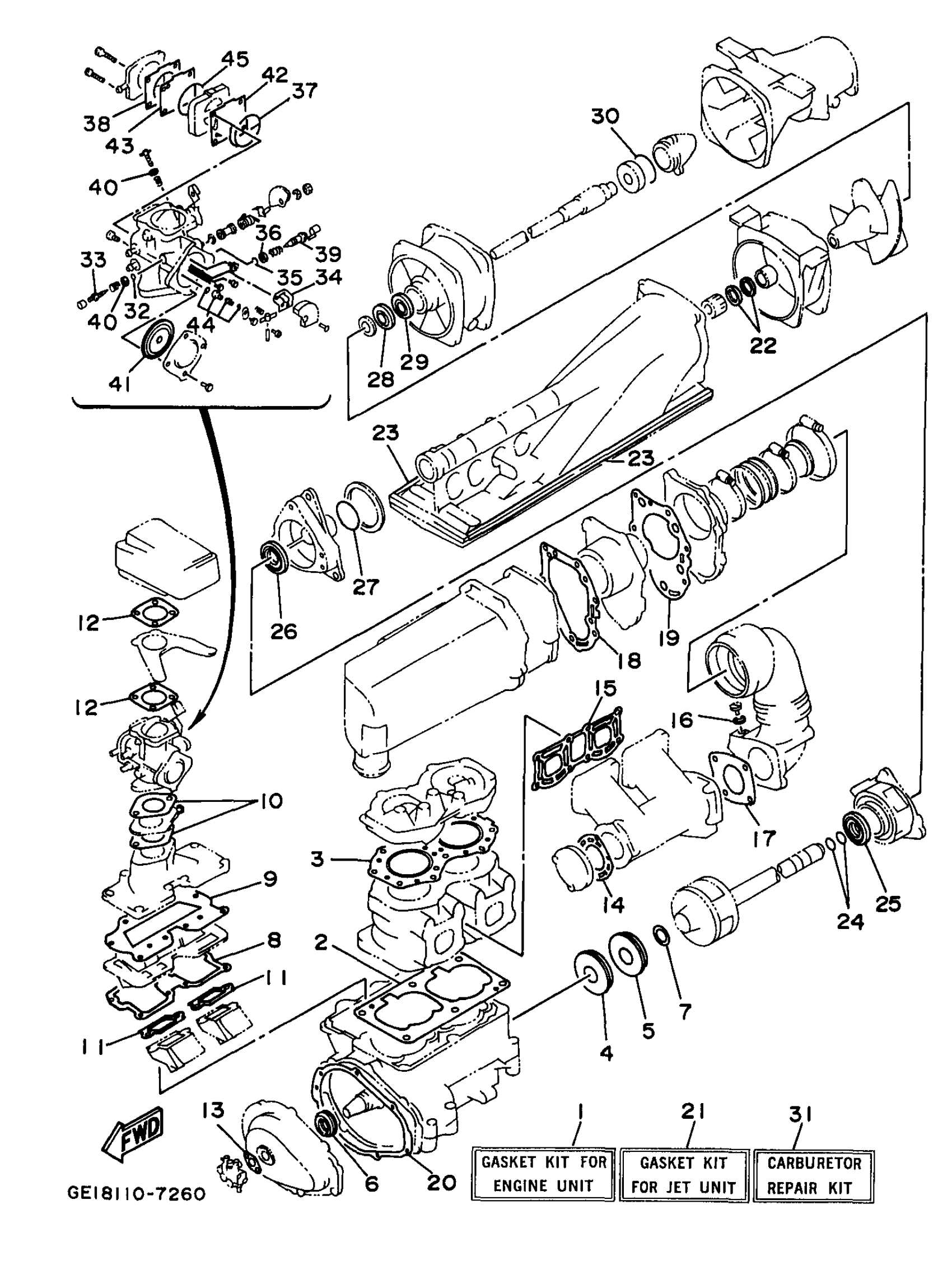

1997 Yamaha Wave Runner Iii (WRA700V) Gasket Kit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET KIT

61X-W0001-02-00

1
Out of stock

2

GASKET, CYLINDER

6M6-11351-A2-00

1
Out of stock

3

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

1
Out of stock

4

. OIL SEAL

93102-36M33-00

1
Out of stock

5

. OIL SEAL

93101-36M46-00

1
Out of stock

6

. OIL SEAL

93103-32M01-00

1
Out of stock

7

SEAL

62T-45127-01-00

1
Out of stock

8

GASKET

61X-13566-A1-00

1
Out of stock

9

GASKET

61X-13563-A1-00

1
Out of stock

10

GASKET, MANIFOLD

6M6-13556-A1-00

1
Out of stock

11

. GASKET, VALVE SEAT

61X-13621-A0-00

1
Out of stock

12

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1
Out of stock

13

. GASKET, PUMP CASE

6R8-13116-A0-00

1
Out of stock

14

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

1
Out of stock

15

GASKET, EXHAUST PIPE

61X-14613-A1-00

1
Out of stock

16

GASKET

90430-08003-00

1
Out of stock

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

1
Out of stock

18

. GASKET, SILENCER

6R7-14755-A0-00

1
Out of stock

19

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

1
Out of stock

20

. GASKET, HOLE COVER

6M6-81365-A0-00

1
Out of stock

21

GASKET KIT FOR JET UNIT

6R8-W0001-23-00

1
Out of stock

22

OIL SEAL(6R8)

93102-18M35-00

—
Out of stock

23

. FELT, PACKING

6R8-51367-01-00

1
Out of stock

24

O-RING(6R7)

93210-17MA4-00

—
Out of stock

25

OIL SEAL(62T)

93101-25M55-00

—
Out of stock

26

OIL SEAL

93101-24001-00

—
Out of stock

27

O-RING

93210-35M72-00

—
Out of stock

28

OIL SEAL(6R7)

93102-25M34-00

—
Out of stock

29

OIL SEAL(6R7)

93101-25M50-00

—
Out of stock

30

. O-RING

93210-46M16-00

1
Out of stock

31

CARBURETOR REPAIR KIT

6M6-W0093-12-00

1
Out of stock

32

. O-RING

6K8-14562-00-00

1
Out of stock

33

. PLATE, NEEDLE FITTING

6K8-14946-10-00

1
Out of stock

34

. GASKET

6K8-14536-11-00

1
Out of stock

35

O-RING

583-14561-00-00

—
Out of stock

36

. WASHER

6K8-14537-00-00

1
Out of stock

37

. O-RING

6K8-14564-00-00

1
Out of stock

38

. GASKET, FUEL PUMP 1

6K8-24431-20-00

1
Out of stock

39

. SCREW, PILOT

6K8-14923-10-00

1
Out of stock

40

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

41

. DIAPHRAGM, PUMP

6R7-14541-00-00

1
Out of stock

42

. DIAPHRAGM

6K8-24411-20-00

1
Out of stock

43

. VALVE, CHECK

6K8-24421-10-00

1
Out of stock

44

NEEDLE

61X-14916-16-00

1
Out of stock

45

. O-RING

6K8-14563-00-00

1
Out of stock
