1997 Yamaha Wave Runner III (WRA700V) Engine Hatch Diagram

← All diagrams

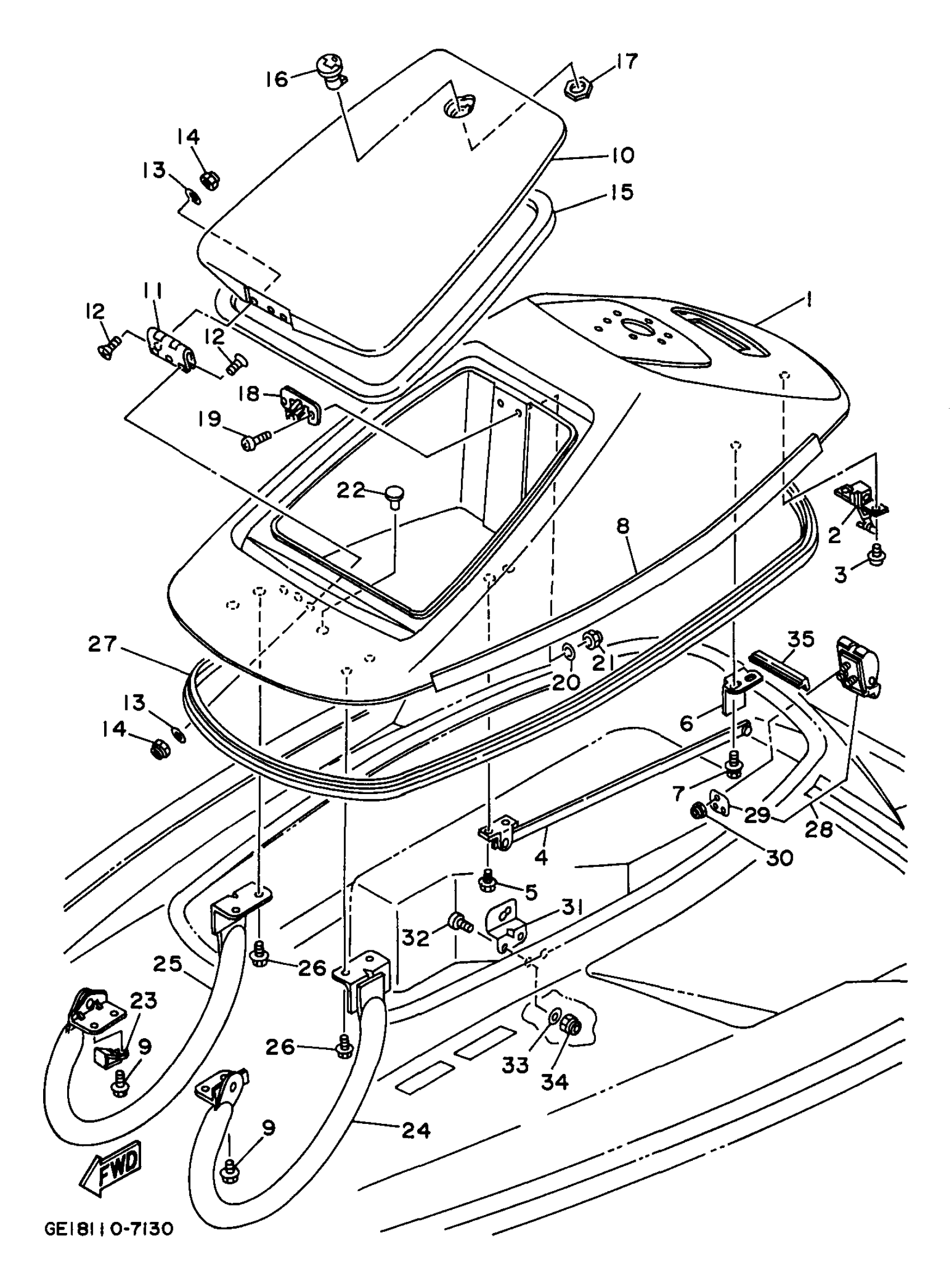

Find the part on the Engine Hatch diagram for your 1997 Yamaha Wave Runner III (WRA700V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner III (WRA700V) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP. (GA9-U516A-01-P0)

GA9-U516A-02-P0

1
Out of stock

2

HOOK, HATCH LOCK

FJ0-62843-00-00

1
Out of stock

3

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

4

SUPPORT, HATCH

FJ0-62891-01-00

1

$121.99

In stock

5

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

6

FIX, PLATE

FJ0-62892-30-00

1
Out of stock

7

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

8

TRIM 1

GA9-U516C-30-00

1
Out of stock

9

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

10

LID, ENGINE HATCH

GA9-U517B-00-P2

1
Out of stock

11

HINGE

FJ0-65173-00-00

1

$45.99

In stock

12

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

13

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

14

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

15

PACKING 3

FJ0-62665-00-00

1
Out of stock

16

LOCK, LID

FJ0-65172-00-00

1

$36.03

In stock

17

NUT, HEXAGON (1E6)

90170-22187-00

—

$9.83

In stock

18

HOOK, LID LOCK

FJ0-65174-00-00

1
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

21

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

22

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

23

CLAMP

90465-08M33-00

1

$9.98

In stock

24

HINGE, HATCH (LH)

FJ0-65163-11-00

1
Out of stock

25

HINGE, HATCH (RH)

FJ0-65163-21-00

1
Out of stock

26

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

27

PACKING

FJ0-62663-00-00

1
Out of stock

28

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

29

. PLATE, HATCH LOCK

FJ0-6284F-00-00

1
Out of stock

30

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

31

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

1
Out of stock

32

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

35

TRIM

GA9-U5162-00-00

1
Out of stock
