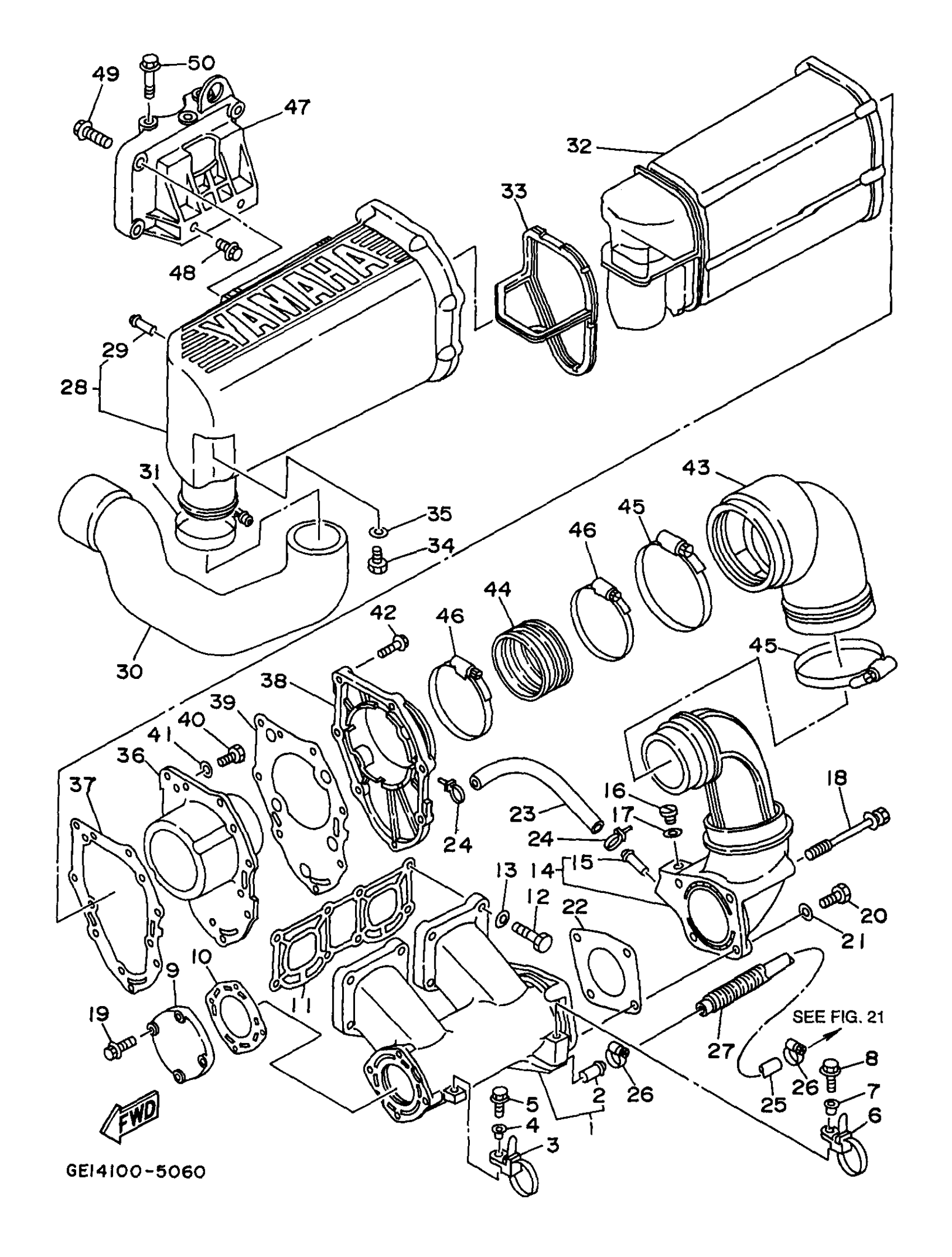

Yamaha WRA700V (WAVE RUNNER III) 6E18 1997 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

62G-14711-00-9M

Unavailable

2

. NIPPLE

6K8-51129-00-00

$9.62

3

CLAMP

90465-12M53-00

$5.00

4

COLLAR

90387-06M05-00

$6.45

5

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

6

CLAMP

90465-12M53-00

$5.00

7

COLLAR

90387-06M05-00

$6.45

8

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

9

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

10

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

11

GASKET, EXHAUST PIPE

61X-14613-A1-00

$27.26

12

BOLT

97013-08035-00

$4.48

13

.. WASHER, PLATE

92990-08600-00

$2.17

14

RING, JOINT

61L-14712-00-00

Unavailable

15

. NIPPLE

6K8-51129-00-00

$9.62

16

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

17

GASKET

90430-08003-00

$1.08

18

BOLT, WITH WASHER

97513-08590-00

Unavailable

19

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

20

BOLT (682)

97013-08025-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

$2.17

22

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

23

HOSE (L380)

90445-14M25-00

Unavailable

24

CLAMP

90465-10098-00

$1.68

25

HOSE (L380)

90445-14M25-00

Unavailable

26

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

27

HOSE (L230)

90446-20M24-00

Unavailable

28

MUFFLER 2

6R7-14721-00-8S

$363.62

29

. PIPE, JOINT

6R7-14485-00-00

$11.99

30

PIPE, OUTLET

6R8-14752-00-00

Unavailable

31

HOSE CLAMP ASSY

90450-94001-00

$14.38

32

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

33

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

34

BOLT(62Y)

97013-06020-00

Unavailable

35

WASHER, PLAIN (646)

92990-06600-00

Unavailable

36

DIFFUSER

6R7-14785-00-8S

$104.53

37

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

38

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

39

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

40

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

Unavailable

42

BOLT, WITH WASHER(63M)

97513-06530-00

$3.98

43

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

44

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

45

CLAMP, HOSE

90460-90M11-00

$42.60

46

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

47

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

48

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

49

BOLT, WASHER BASED

90105-10M45-00

$5.45

50

BOLT, WITH WASHER

90119-10M72-00

$5.55
