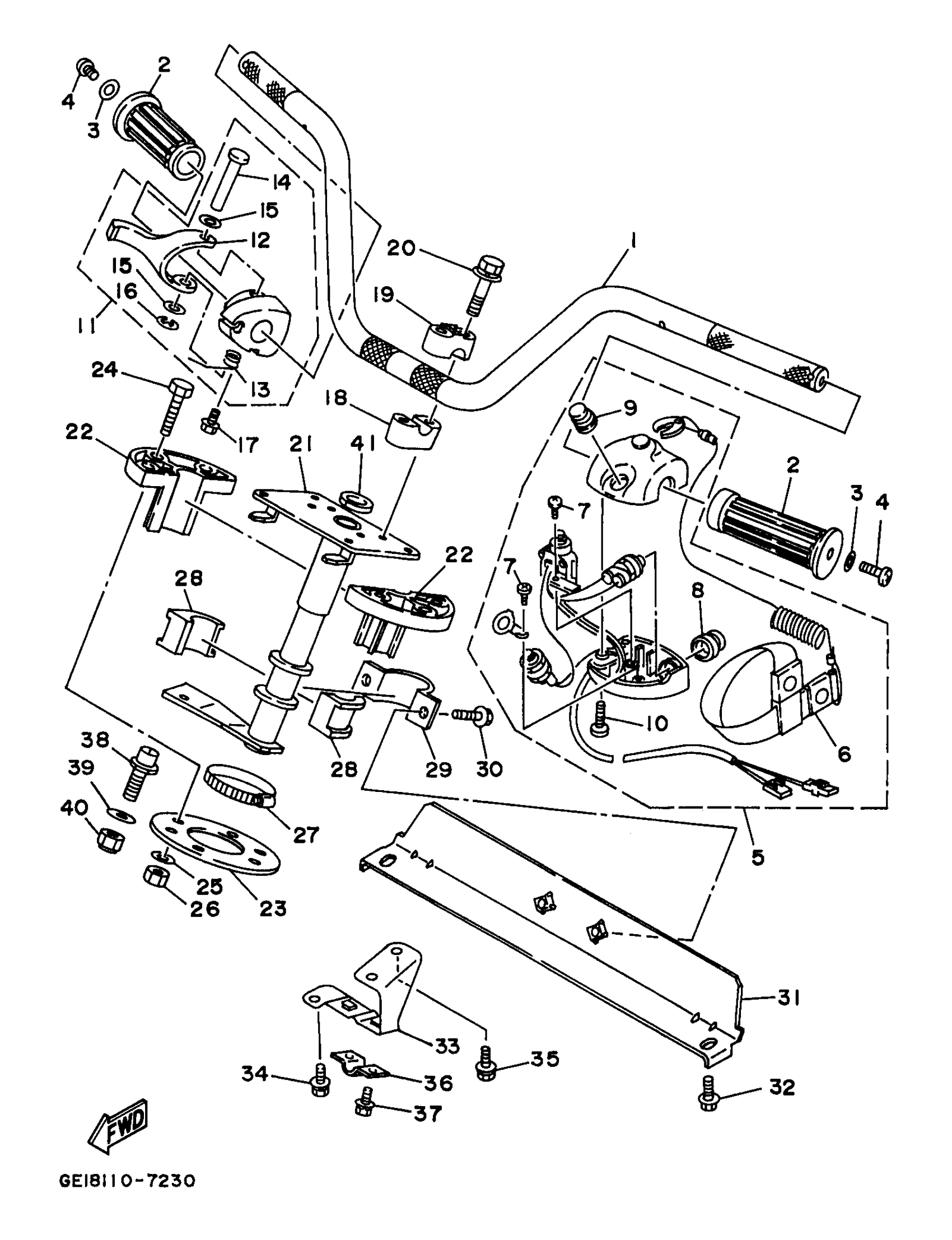

Yamaha WRA700V (WAVE RUNNER III) 6E18 1997 STEERING 1 Diagram

#

Description
Price

1

HANDLE

GA9-U1552-01-00

Unavailable

2

GRIP, HANDLE

EU0-26241-01-00

$27.26

3

WASHER, PLATE

90201-05800-00

$0.65

4

SCREW

90149-059U5-00

Unavailable

5

SWITCH BOX ASSY

GA7-68310-01-00

$222.71

6

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

7

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

8

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

9

. START BUTTON COMP

FK7-68313-02-00

$11.31

10

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

11

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

12

. LEVER, THROTTLE

EW2-67255-00-00

$21.48

13

. SPRING

EW2-67256-00-00

$6.36

14

. SHAFT

EW2-67257-01-00

$13.99

15

WASHER, PLAIN (646)

92990-05600-00

Unavailable

16

CIRCLIP (EU0)

99080-04600-00

$1.70

17

SCREW, WITH WASHER

90159-05900-00

$2.17

18

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

19

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

20

BOLT, WITH WASHER

90119-08925-00

Unavailable

21

COLUMN, STEERING

FJ0-61541-01-00

Unavailable

22

BEARING, COLUMN

EU0-61417-00-00

Unavailable

23

SEAL, RUBBER

EU0-61439-30-00

Unavailable

24

BOLT(JF7)

97080-06030-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

NUT, SELF-LOCKING

95720-06300-00

$1.82

27

BAND, HOSE 42

90601-142U6-00

Unavailable

28

BEARING, STEERING

8F3-23812-00-00

$9.25

29

JOINT, BEARING

EU0-61588-00-00

Unavailable

30

BOLT, WITH WASHER

90119-08903-00

Unavailable

31

BRACKET, BEARING

FJ0-61433-00-00

Unavailable

32

BOLT, WITH WASHER

90119-08903-00

Unavailable

33

BRACKET, STOPPER CABLE

GE1-61467-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06926-00

Unavailable

35

BOLT, WITH WASHER

90119-08903-00

Unavailable

36

STOPPER CABLE

EU0-61468-01-00

Unavailable

37

BOLT, WITH WASHER

90119-06926-00

Unavailable

38

PIN, STOPPER

EU0-61314-30-00

Unavailable

39

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

40

NUT, NYLON (FN8)

95720-10300-00

Unavailable

41

PACKING, STEERING COLUMN

EU0-61469-00-00

Unavailable
