1994 Yamaha Wave Runner III GP (WRA700S) Engine Hatch Diagram

← All diagrams

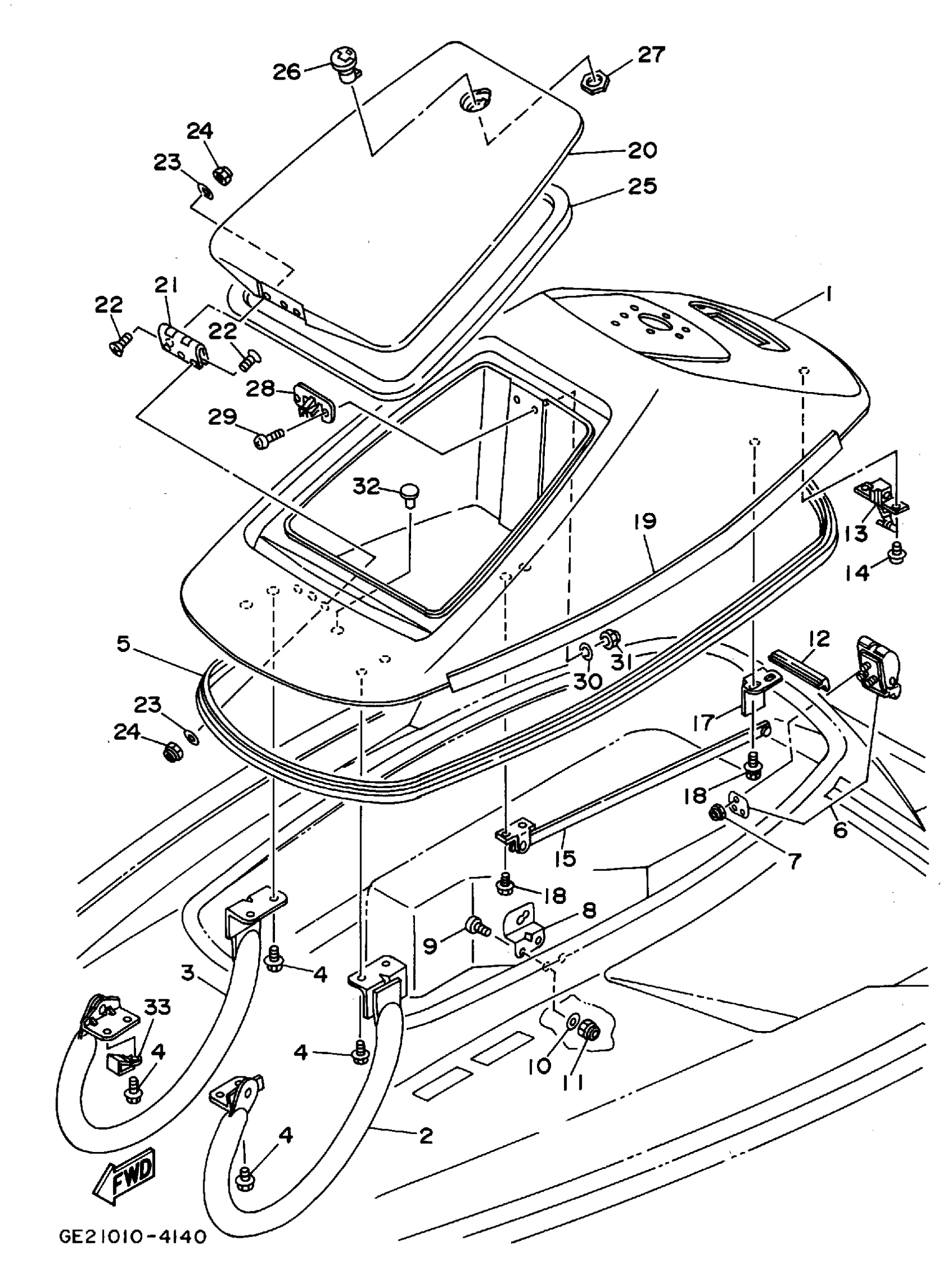

Find the part on the Engine Hatch diagram for your 1994 Yamaha Wave Runner III GP (WRA700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Runner III GP (WRA700S) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP. (GA9-U516A-01-P0)

GA9-U516A-02-P0

1
Out of stock

2

HINGE, HATCH (LH)

FJ0-65163-11-00

1
Out of stock

3

HINGE, HATCH (RH)

FJ0-65163-21-00

1
Out of stock

4

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

5

PACKING

FJ0-62663-00-00

1
Out of stock

6

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

7

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

8

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

12

TRIM

GA9-U5162-00-00

1
Out of stock

13

HOOK, HATCH LOCK

FJ0-62843-00-00

1
Out of stock

14

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

15

SUPPORT, HATCH

FJ0-62891-01-00

1

$121.99

In stock

16

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

17

FIX, PLATE

FJ0-62892-30-00

1
Out of stock

18

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

19

TRIM (FJ0-65162-31-00)

GA9-U5162-30-00

1
Out of stock

20

LID, ENGINE HATCH

GA9-U517B-00-P2

1
Out of stock

21

HINGE

FJ0-65173-00-00

1

$45.99

In stock

22

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

25

PACKING 3

FJ0-62665-00-00

1
Out of stock

26

LOCK, LID

FJ0-65172-00-00

1

$36.03

In stock

27

NUT, HEXAGON (1E6)

90170-22187-00

—

$9.83

In stock

28

HOOK, LID LOCK

FJ0-65174-00-00

1
Out of stock

29

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

30

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

31

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

32

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

33

CLAMP

90465-08M33-00

1

$9.98

In stock
