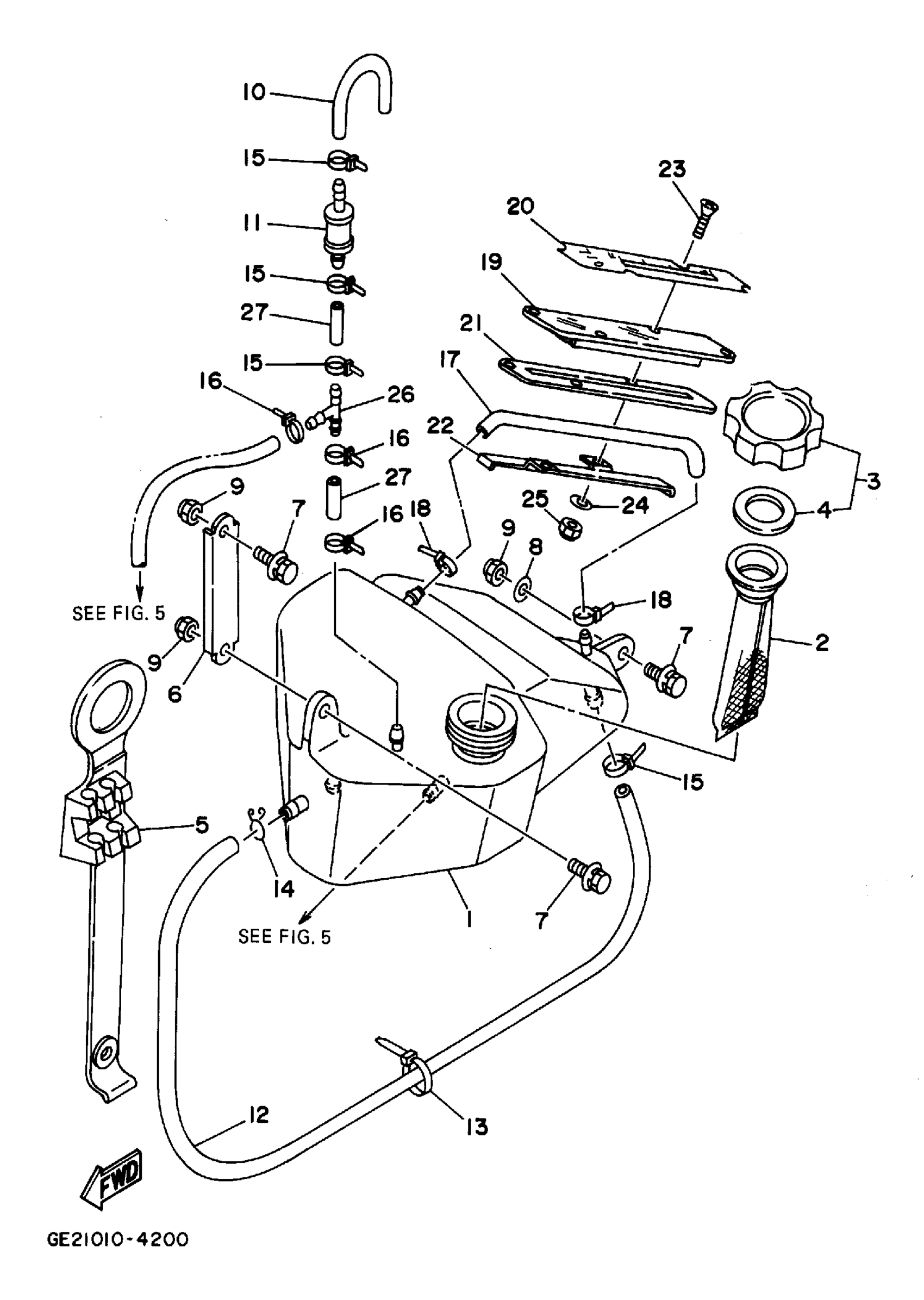

Yamaha WRA700S (WAVE RUNNER III GP) 1994 OIL TANK FOR OIL INJECTION Diagram

#

Description
Price

1

TANK, OIL

FJ0-67751-00-00

$127.26

2

FILTER

FJ0-67752-00-00

Unavailable

3

OIL TANK CAP ASSY.

GE2-6784A-01-00

Unavailable

4

PACKING, OIL CAP

FJ0-67841-02-00

Unavailable

5

HOLDER, OIL PIPE 2

6R8-13173-00-00

Unavailable

6

BRACKET, OIL TANK

FJ0-67755-00-00

Unavailable

7

BOLT, HEX (MIRROR)

90119-06924-00

Unavailable

8

WASHER, PLATE

90201-06020-00

$5.86

9

NUT, SELF-LOCKING

95720-06300-00

$1.82

10

HOSE

F3D-6215E-00-00

Unavailable

11

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

12

HOSE (FJ0)

90446-11900-00

$15.77

13

BAND

90601-20008-00

$7.27

14

CLIP(72X)

90467-11M08-00

$2.50

15

CLAMP

90465-10098-00

$1.68

16

CLAMP

90465-10098-00

$1.68

17

HOSE (FJ0)

90446-09906-00

Unavailable

18

CLAMP

90465-10098-00

$1.68

19

LEVEL GAUGE 1

FJ0-67753-01-00

Unavailable

20

LABEL, OIL GAUGE

FJ0-64189-01-00

Unavailable

21

PACKING

FJ0-67754-00-00

Unavailable

22

BASE, LEVEL GAUGE

FJ0-67757-01-00

Unavailable

23

. SCREW, FLAT HEAD

98780-05018-00

$3.26

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

NUT, FLANGE

95720-05300-00

$1.28

26

PIPE, JOINT 4

6R8-24378-00-00

Unavailable

27

HOSE (L420)

90445-092K1-00

Unavailable
