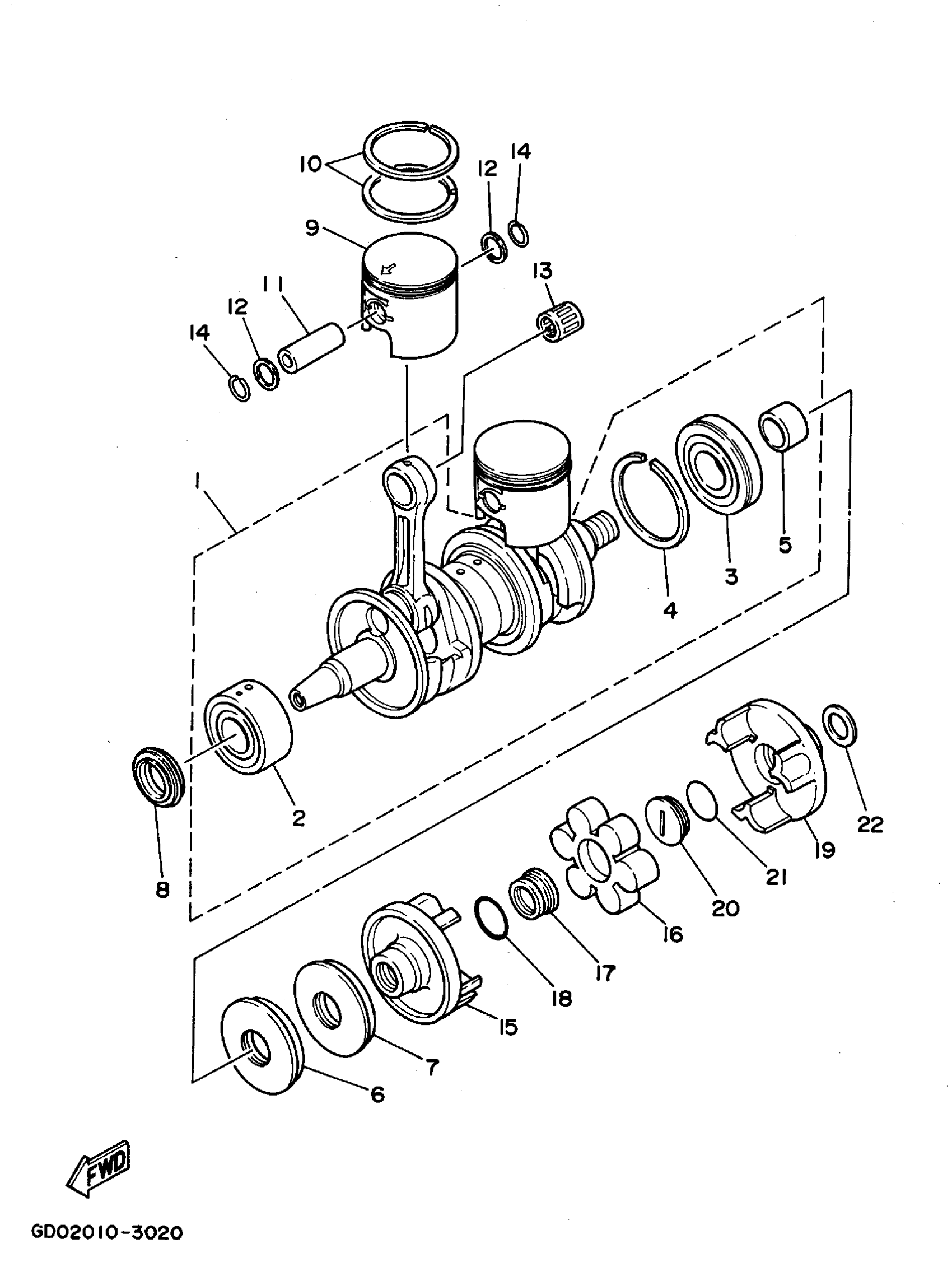

Yamaha WRA700S (WAVE RUNNER III GP) 1994 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

62T-11400-02-00

$1,406.05

2

BEARING(8AB)

93305-30601-00

$188.82

3

BEARING(6M6)

93306-307U3-00

$72.67

4

CIRCLIP (834)

93440-80023-00

$12.59

5

COLLAR, DRIVE SHAFT

6M6-45526-00-00

Unavailable

6

. OIL SEAL

93102-36M33-00

$15.55

7

. OIL SEAL

93101-36M46-00

$17.41

8

. OIL SEAL

93103-32M01-00

$14.81

9

PISTON (STD)

61X-11631-02-93

$110.59

9

PISTON (0.50MM O/S)

61X-11636-02-00

$101.50

10

PISTON RING SET (STD)

61X-11603-01-00

$56.99

10

PISTON RING SET (0.50MM O/S)

61X-11605-01-00

$61.99

11

PIN, PISTON

61X-11633-00-00

$18.52

12

WASHER, PLATE(61X)

90201-20M04-00

$5.69

13

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$34.68

14

CIRCLIP (8H0)

93450-21053-00

Unavailable

15

FLANGE, COUPLING

6M6-45813-10-8P

$124.23

16

RUBBER SHAFT COUPLING

61X-4581J-00-00

$96.95

17

NUT, RING

6M6-5114E-00-00

Unavailable

18

O-RING

93210-30M31-00

$8.11

19

FLANGE, COUPLING

6M6-45813-22-8P

$127.26

20

NUT, RING

6R7-5114E-01-00

Unavailable

21

O-RING

93210-30M31-00

$8.11

22

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
