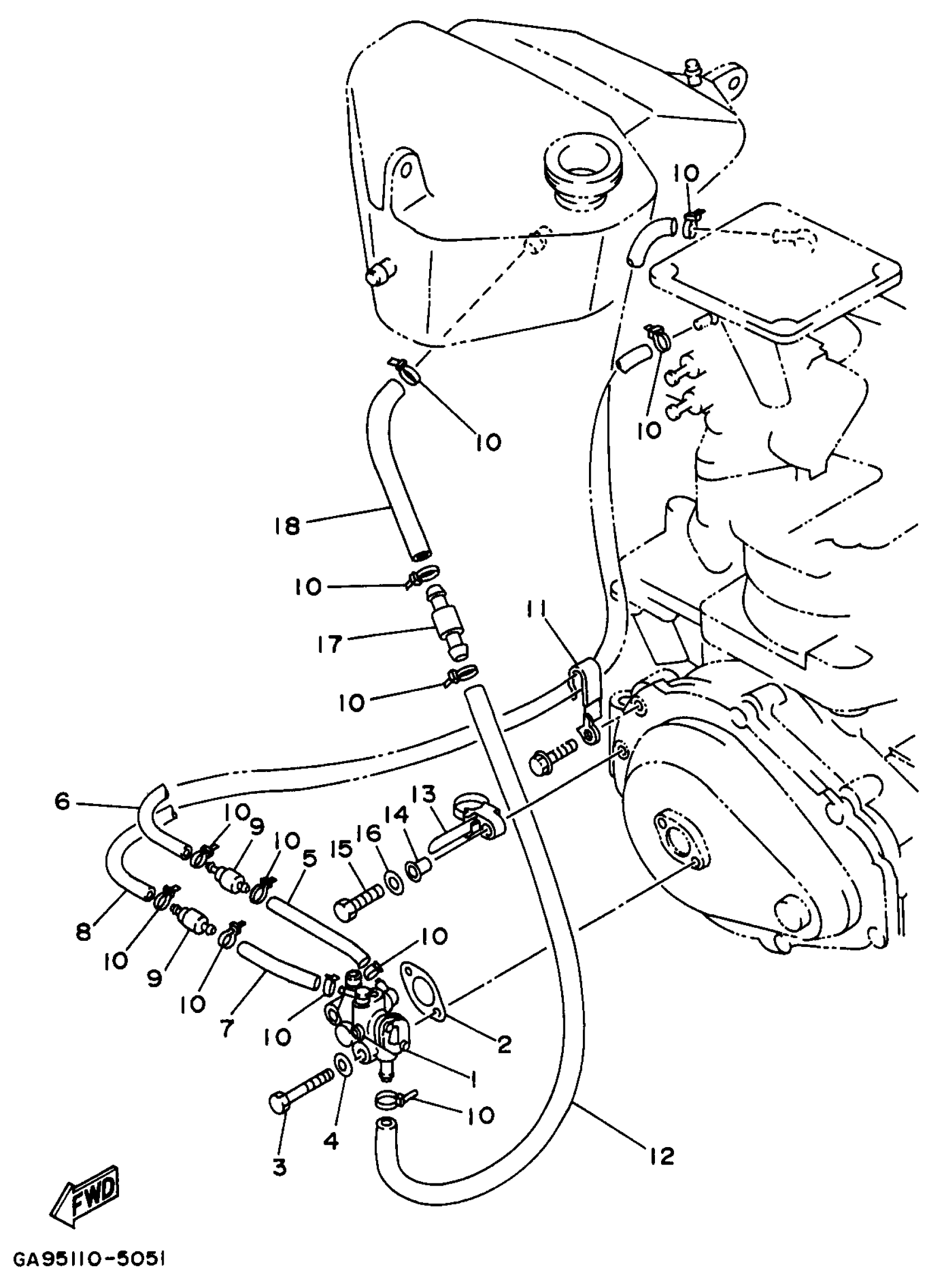

Yamaha WRA650U (WAVE RUNNER III) 1996 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSEMBLY

6R8-13200-10-00

Unavailable

2

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

3

BOLT(J52)

97080-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

HOSE(62T)

90446-07M48-00

Unavailable

6

HOSE(62T)

90446-07M48-00

Unavailable

7

HOSE(62T)

90446-07M48-00

Unavailable

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

$39.61

10

CLAMP

90465-10098-00

$1.68

11

CLAMP

90465-08M37-00

Unavailable

12

HOSE (L700)

90445-117F2-00

$22.86

13

CLAMP

90465-12M53-00

$5.00

14

COLLAR

90387-06M05-00

$6.45

15

BOLT(J52)

97080-06035-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

$1.84

17

PIPE, JOINT 2

6R3-24377-00-00

$6.56

18

HOSE (L390)

90445-115K6-00

Unavailable
