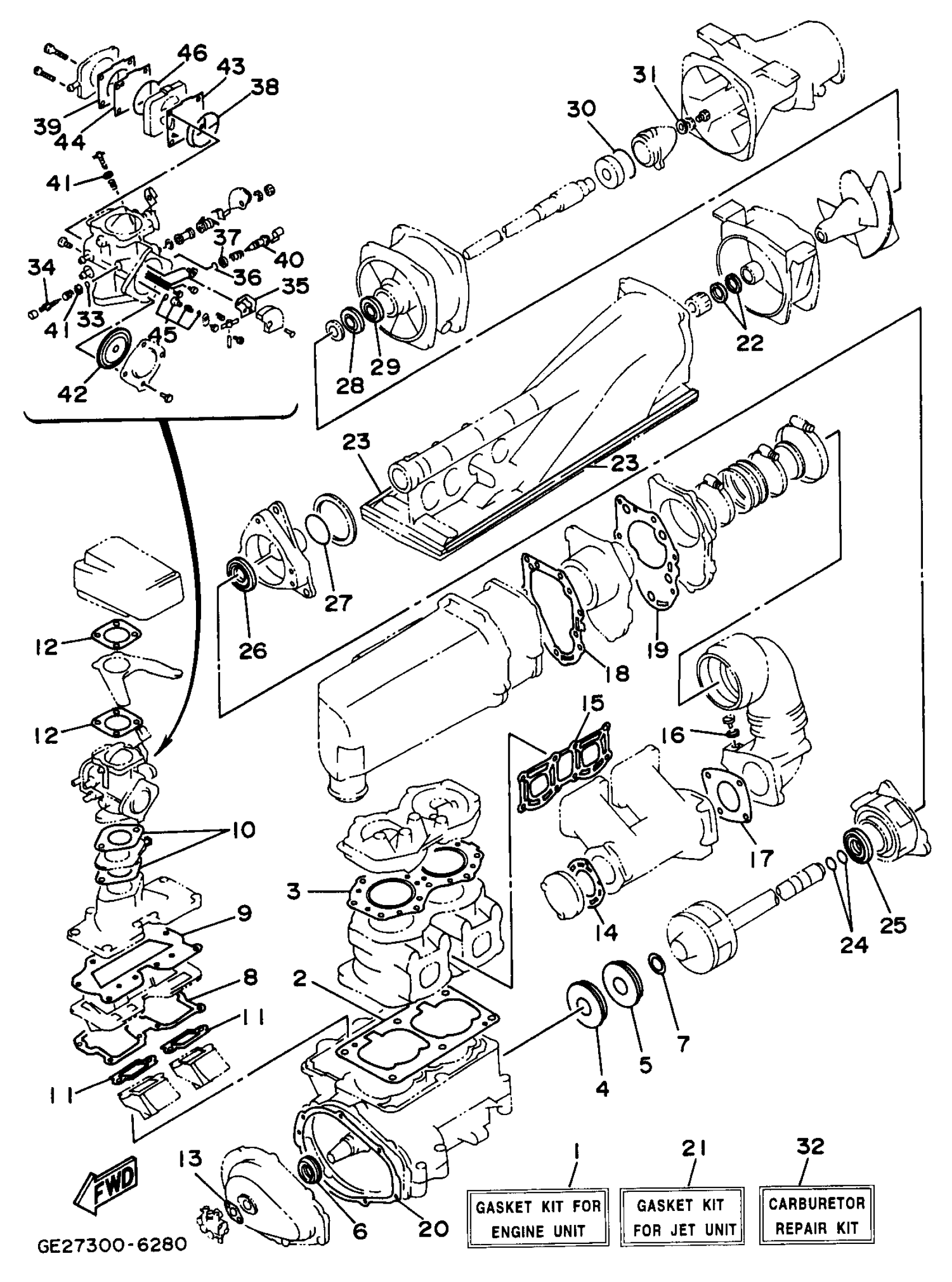

Yamaha WRA650U (WAVE RUNNER III) 1996 GASKET KIT Diagram

#

Description
Price

1

GASKET KIT,ENGINE

6R8-W0001-02-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

3

GASKET, CYL. HEAD

6R7-11181-A1-00

Unavailable

4

. OIL SEAL

93102-36M33-00

$15.55

5

. OIL SEAL

93101-36M46-00

$17.41

6

. OIL SEAL

93103-32M01-00

$14.81

7

SEAL

62T-45127-01-00

Unavailable

8

GASKET

6M6-13566-A2-00

Unavailable

9

GASKET

6M6-13563-A1-00

Unavailable

10

GASKET, MANIFOLD

6M6-13556-A1-00

$5.91

11

GASKET, VALVE SEAT

6M6-13621-A1-00

Unavailable

12

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.99

13

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

14

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

15

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.62

16

GASKET

90430-08003-00

$1.08

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

18

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

19

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

20

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

21

GASKET KIT FOR JET UNIT

6R8-W0001-23-00

Unavailable

22

OIL SEAL(6R8)

93102-18M35-00

Unavailable

23

. FELT, PACKING

6R8-51367-01-00

$10.36

24

O-RING(6R7)

93210-17MA4-00

Unavailable

25

OIL SEAL(62T)

93101-25M55-00

Unavailable

26

OIL SEAL

93101-24001-00

Unavailable

27

O-RING

93210-35M72-00

Unavailable

28

OIL SEAL(6R7)

93102-25M34-00

Unavailable

29

OIL SEAL(6R7)

93101-25M50-00

Unavailable

30

. O-RING

93210-46M16-00

$7.15

31

. GASKET

90430-06M03-00

$2.80

32

CARBURETOR REPAIR KIT

6M6-W0093-12-00

Unavailable

33

. O-RING

6K8-14562-00-00

$1.88

34

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

35

. GASKET

6K8-14536-11-00

$8.14

36

O-RING

583-14561-00-00

Unavailable

37

. WASHER

6K8-14537-00-00

$3.18

38

. O-RING

6K8-14564-00-00

$8.51

39

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

40

. SCREW, PILOT

6K8-14923-10-00

Unavailable

41

WASHER,NEEDLE

812-14235-00-00

$2.44

42

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

43

. DIAPHRAGM

6K8-24411-20-00

$29.63

44

. VALVE, CHECK

6K8-24421-10-00

$24.44

45

NEEDLE

61X-14916-16-00

$22.90

46

. O-RING

6K8-14563-00-00

Unavailable
