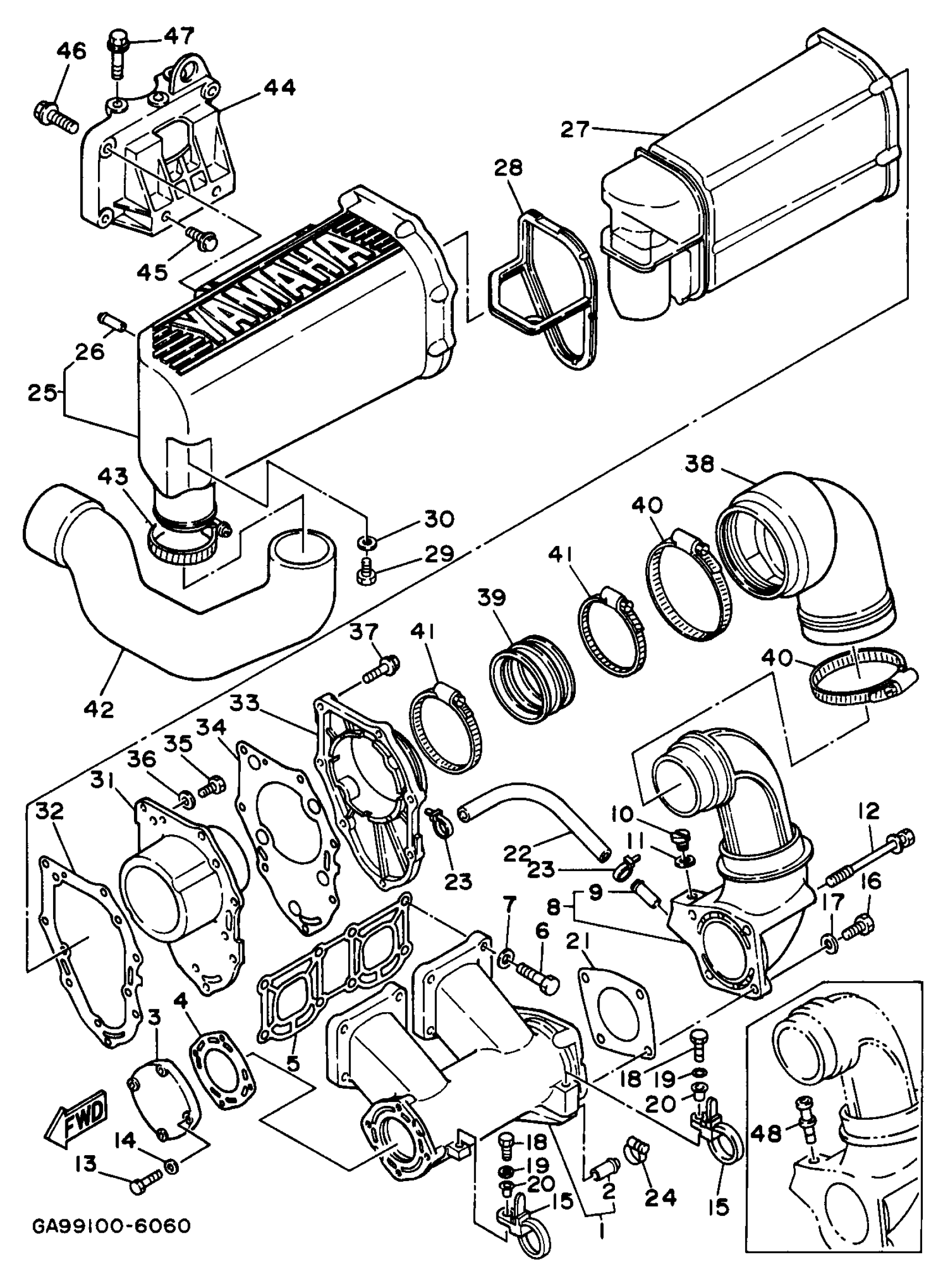

Yamaha WRA650U (WAVE RUNNER III) 1996 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

6R8-14711-00-9M

Unavailable

2

. NIPPLE

6K8-51129-00-00

$9.62

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

5

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.62

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.17

8

RING, JOINT

61L-14712-00-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.62

10

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

11

GASKET

90430-08003-00

$1.08

12

BOLT, WITH WASHER

97513-08590-00

Unavailable

13

BOLT

90101-06M27-00

$3.14

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

CLAMP

90465-12M53-00

$5.00

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

BOLT(7U8)

97080-06020-00

$3.63

19

WASHER, PLAIN (646)

92990-06600-00

$1.84

20

COLLAR

90387-06M05-00

$6.45

21

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

22

HOSE (L380)

90445-14M25-00

Unavailable

23

CLAMP

90465-10098-00

$1.68

24

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

25

MUFFLER 2

6R7-14721-00-8S

$363.62

26

. PIPE, JOINT

6R7-14485-00-00

$11.99

27

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

28

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

29

BOLT(62Y)

97013-06020-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

$1.84

31

DIFFUSER

6R7-14785-00-8S

$104.53

32

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

33

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

34

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

36

WASHER, PLAIN (646)

92990-06600-00

$1.84

37

BOLT, WITH WASHER(63M)

97513-06530-00

$3.98

38

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

39

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

40

CLAMP, HOSE

90460-90M11-00

$42.60

41

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

42

PIPE, OUTLET

6R8-14752-00-00

Unavailable

43

HOSE CLAMP ASSY

90450-94001-00

$14.38

44

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

45

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

46

BOLT, WASHER BASED

90105-10M45-00

$5.45

47

BOLT, WITH WASHER

90119-10M72-00

$5.55

48

PLUG, WATER CHECK

6E0-28193-00-00

$6.79
