1995 Yamaha Wave Runner III (WRA650T) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1995 Yamaha Wave Runner III (WRA650T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

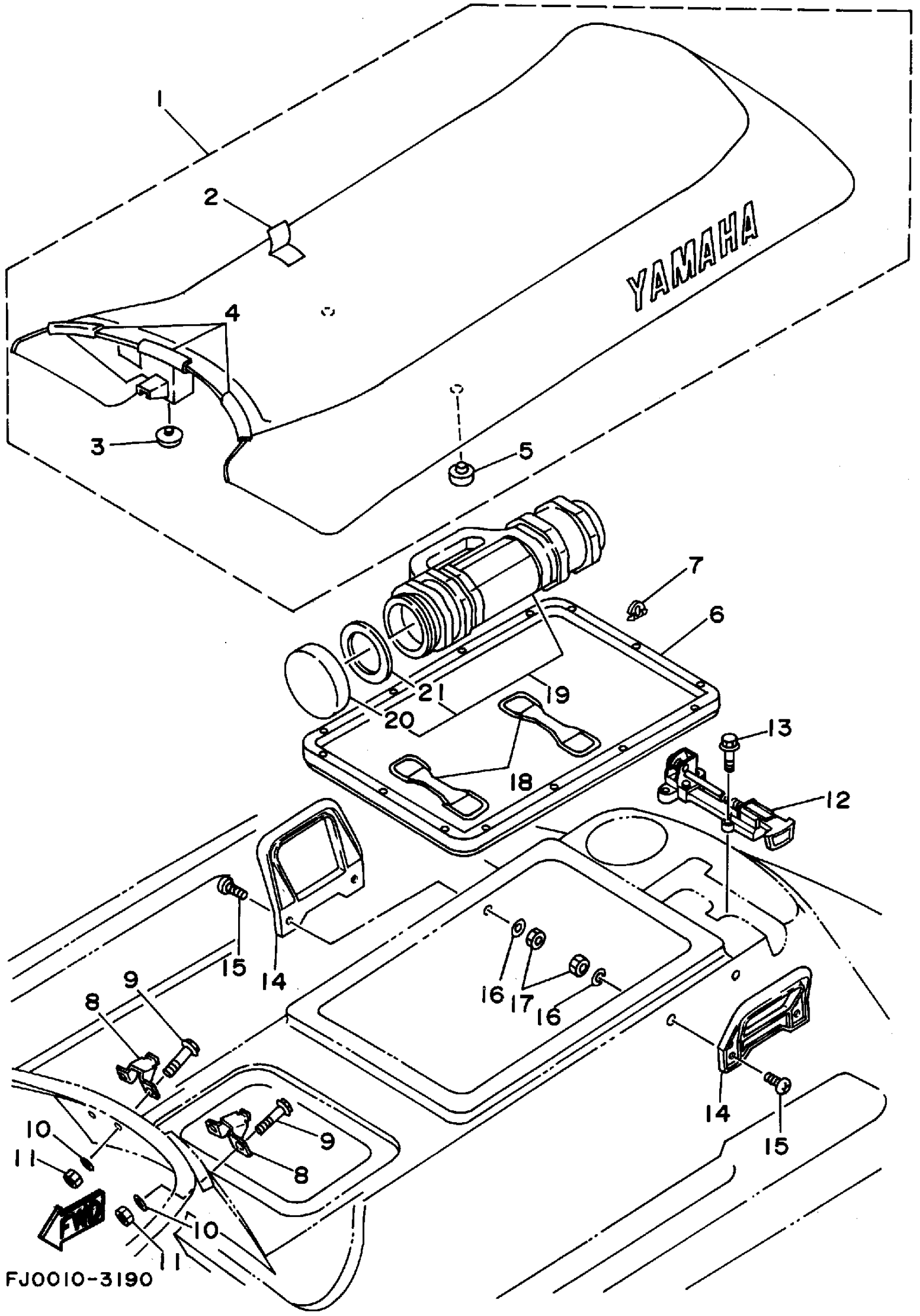

1995 Yamaha Wave Runner III (WRA650T) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

GA9-U371A-40-00

1
Out of stock

2

. COVER, SEAT

GA9-U370B-40-00

1
Out of stock

3

STOPPER MAIN STAND

278-27114-00-00

1

$8.45

In stock

4

. SEAL

GA9-U371K-00-00

1
Out of stock

5

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

6

PACKING 2

FJ0-62664-00-00

1
Out of stock

7

RIVET

90269-06916-00

1
Out of stock

8

STAY, SEAT 1

FJ0-63784-00-00

1
Out of stock

9

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

12

SEAT, LOCK ASSY

FJ0-63850-31-00

1
Out of stock

13

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

14

GRIP, ASSIST

FJ0-63771-30-00

1

$102.49

In stock

15

SCREW

90149-08950-00

1
Out of stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

18

BAND,WATER LOCK

EU0-U756E-00-00

1
Out of stock

19

CASE 2 ASSEMBLY

EW2-65920-00-00

1
Out of stock

20

. CAP, CASE

EW2-65912-30-00

1
Out of stock

21

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock
