1995 Yamaha Wave Runner III (WRA650T) Hull - Deck 1 Diagram

← All diagrams

Find the part on the Hull - Deck 1 diagram for your 1995 Yamaha Wave Runner III (WRA650T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

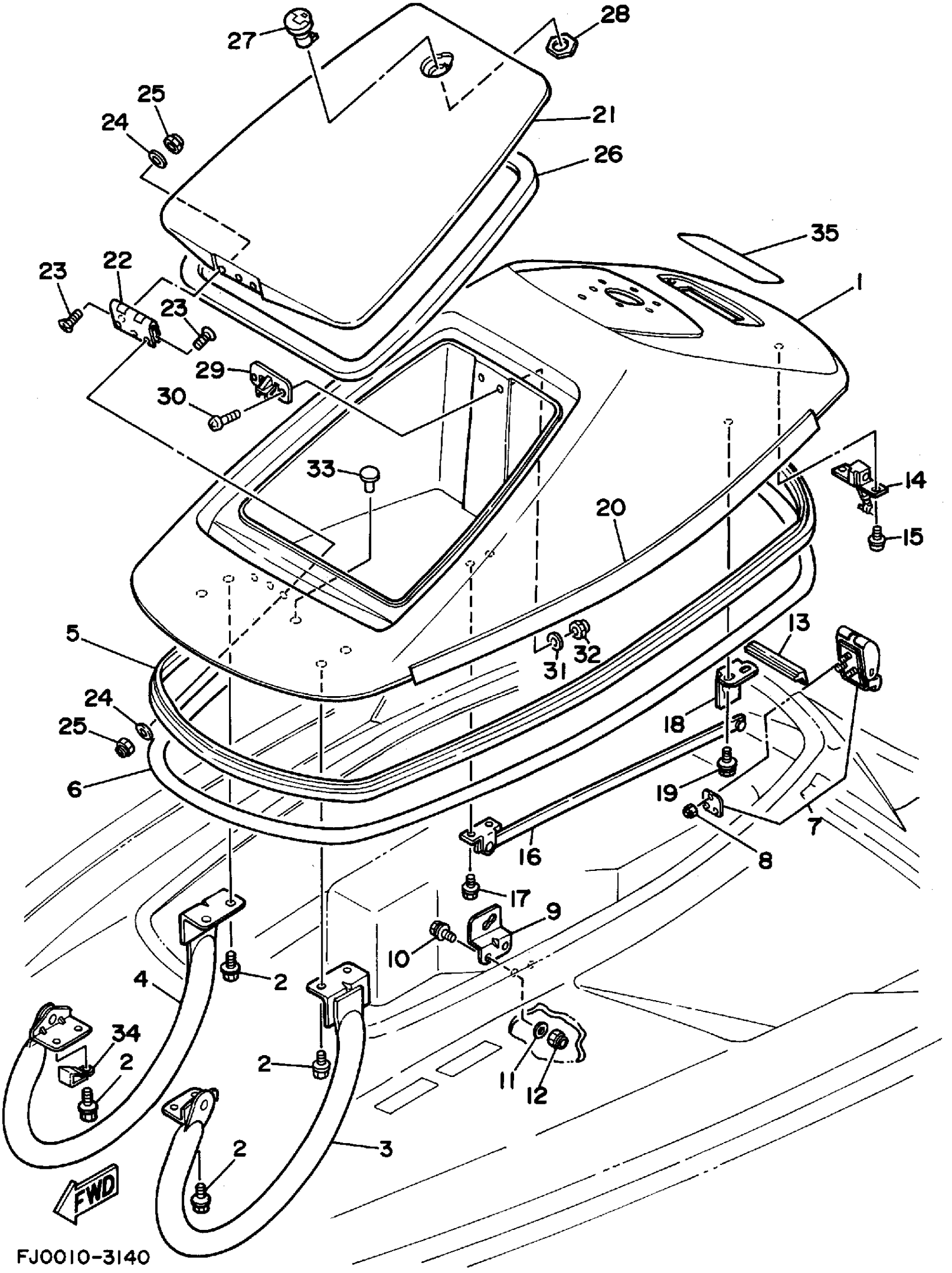

1995 Yamaha Wave Runner III (WRA650T) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP. (GA9-U516A-01-P0)

GA9-U516A-02-P0

1
Out of stock

2

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

3

HINGE, HATCH (LH)

FJ0-65163-11-00

1
Out of stock

4

HINGE, HATCH (RH)

FJ0-65163-21-00

1
Out of stock

5

PACKING

FJ0-62663-00-00

1
Out of stock

6

TAPE

90654-91300-00

1
Out of stock

7

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

8

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

9

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

1
Out of stock

10

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

13

TRIM

GA9-U5162-00-00

1
Out of stock

13

TRIM

GA9-U5162-00-00

1
Out of stock

14

HOOK, HATCH LOCK

FJ0-62843-00-00

1
Out of stock

15

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

16

SUPPORT, HATCH

FJ0-62891-01-00

1

$121.99

In stock

17

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

18

FIX, PLATE

FJ0-62892-30-00

1
Out of stock

19

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

20

TRIM 1

GA9-U516C-30-00

1
Out of stock

21

LID, ENGINE HATCH

GA9-U517B-00-P2

1
Out of stock

22

HINGE

FJ0-65173-00-00

1

$45.99

In stock

23

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

24

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

25

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

26

PACKING 3

FJ0-62665-00-00

1
Out of stock

27

LOCK, LID

FJ0-65172-00-00

1

$36.03

In stock

28

NUT, HEXAGON (1E6)

90170-22187-00

—

$9.83

In stock

29

HOOK, LID LOCK

FJ0-65174-00-00

1
Out of stock

30

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

31

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

32

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

33

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

34

CLAMP

90465-08M33-00

1

$9.98

In stock

35

EMBLEM A

GA9-U4121-00-00

1
Out of stock
