1995 Yamaha Wave Runner III (WRA650T) Hull - Deck 3 Diagram

← All diagrams

Find the part on the Hull - Deck 3 diagram for your 1995 Yamaha Wave Runner III (WRA650T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

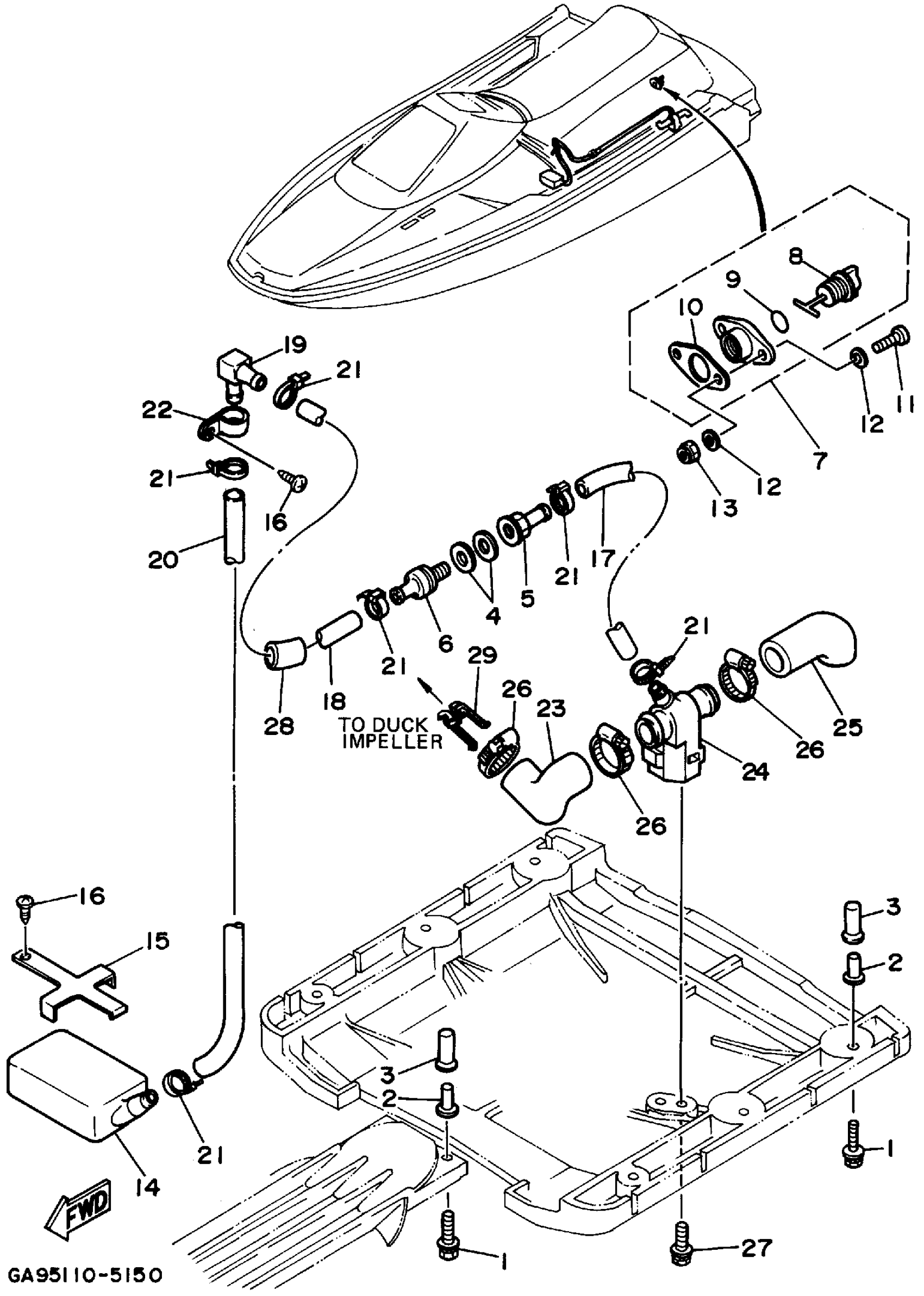

1995 Yamaha Wave Runner III (WRA650T) Hull - Deck 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

2

NUT

90179-06931-00

1
Out of stock

3

CLING

90190-06014-00

1
Out of stock

4

GASKET

90430-13909-00

1
Out of stock

5

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

6

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

7

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

8

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

9

. O-RING

EU0-62283-00-00

1

$3.95

In stock

10

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

13

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

14

STRAINER, BILGE

F4R-6761D-00-00

1

$31.99

In stock

15

BASE

FJ0-67618-00-00

1
Out of stock

16

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

17

HOSE

90445-14M11-00

1
Out of stock

18

HOSE

90445-149U2-00

1
Out of stock

19

JOINT, HOSE

6K8-51162-00-00

1

$11.49

In stock

20

HOSE

90445-149U3-00

1
Out of stock

21

CLAMP

90465-10098-00

1

$2.24

In stock

22

CLIP, NYLON 17

90600-91728-00

1

$5.54

In stock

23

HOSE, PLASHER

6R8-51161-00-00

1
Out of stock

24

BODY, VALVE

6K8-7610K-01-00

1
Out of stock

25

HOSE SUCTION

6K8-51141-00-00

1
Out of stock

26

HOSE CLAMP ASSY

90450-32097-00

1

$13.99

In stock

27

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

28

PACKING, HOSE 2

FJ0-67578-00-00

1
Out of stock

29

SCREEN

6R8-51384-00-00

1
Out of stock
