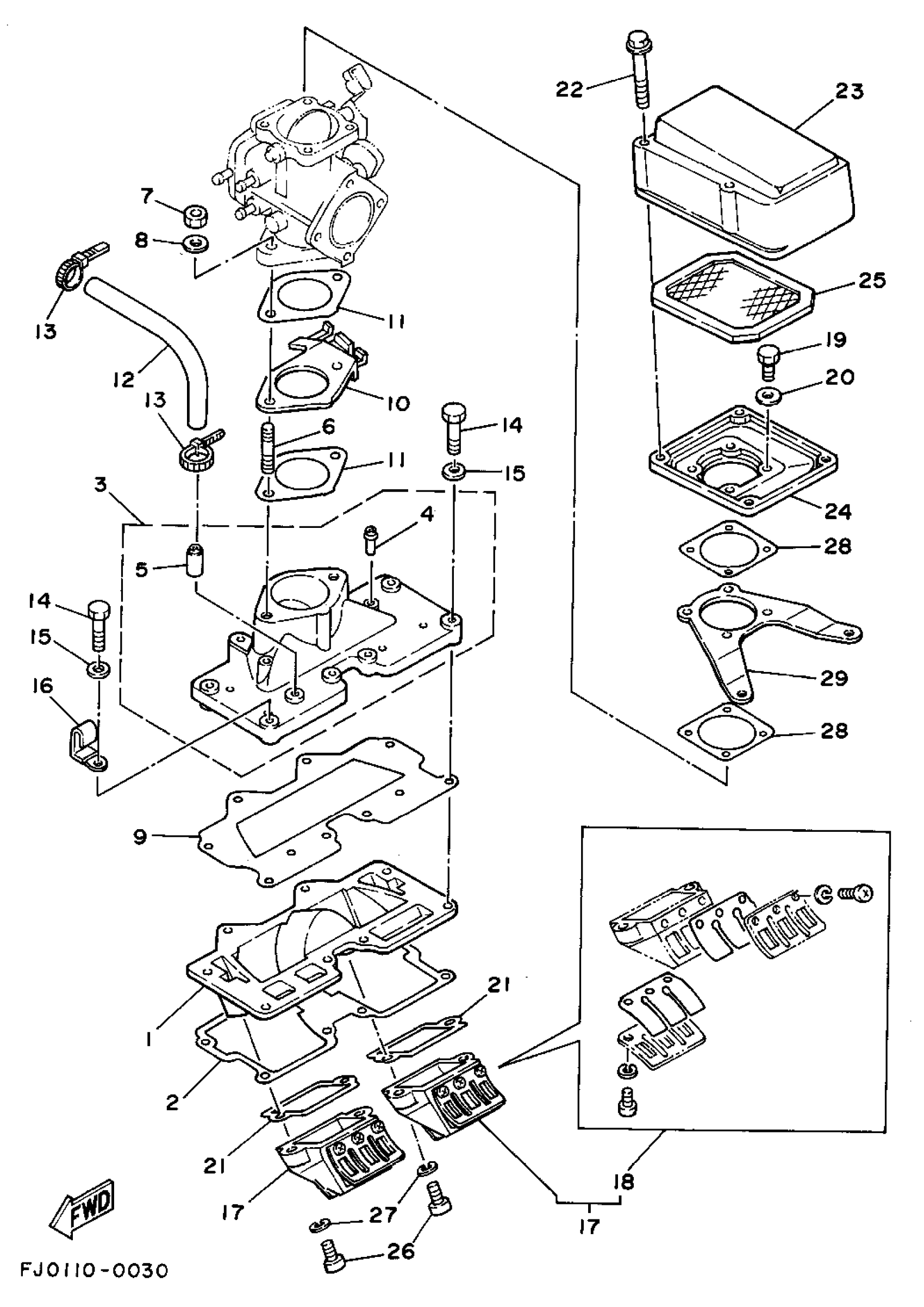

Yamaha WRA650D (WAVE RUNNER III) 1990 AIR FILTER Diagram

#

Description
Price

1

MANIFOLD 1

6M6-13641-00-94

Unavailable

2

GASKET

6M6-13566-A2-00

Unavailable

3

MANIFOLD,INTAKE

6M6-13555-01-94

Unavailable

3

MANIFOLD, INTAKE

6R8-13555-00-94

Unavailable

4

. PIPE, JOINT

6H1-14485-00-00

$6.64

5

. PIPE, JOINT 4

652-24461-00-00

$5.31

6

BOLT, STUD

90116-08M14-00

$5.07

7

NUT (661)

95380-08600-00

$6.14

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

GASKET

6M6-13563-A1-00

Unavailable

10

PLATE

6M6-14527-02-94

Unavailable

11

GASKET, MANIFOLD

6M6-13556-A1-00

$5.91

12

HOSE (L400)

90445-10M43-00

$5.96

13

CLAMP

90465-10098-00

$1.68

14

BOLT(3RV)

97014-06035-00

$1.54

15

WASHER, PLAIN (646)

92990-06600-00

Unavailable

16

CLAMP

90465-08M08-00

$11.41

17

REED VALVE ASSEMBLY

6R7-13610-01-00

Unavailable

18

. REED SET

6R7-W0004-00-00

Unavailable

19

BOLT(7U8)

97080-06020-00

$3.63

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

GASKET, VALVE SEAT

6M6-13621-A1-00

Unavailable

22

BOLT, WITH WASHER

90119-05M02-00

$3.46

23

COVER, CARB.

99999-02651-00

Unavailable

24

COVER, CARBURETOR 2

6M6-14284-00-8P

Unavailable

24

COVER, CARBURETOR 2

6R8-14284-00-98

Unavailable

25

ELEMENT, AIR CLEANER

6M6-14451-00-00

Unavailable

26

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.99

29

PLATE

6R7-14255-00-00

Unavailable
