1990 Yamaha Wave Runner III (WRA650D) Carburetor Diagram

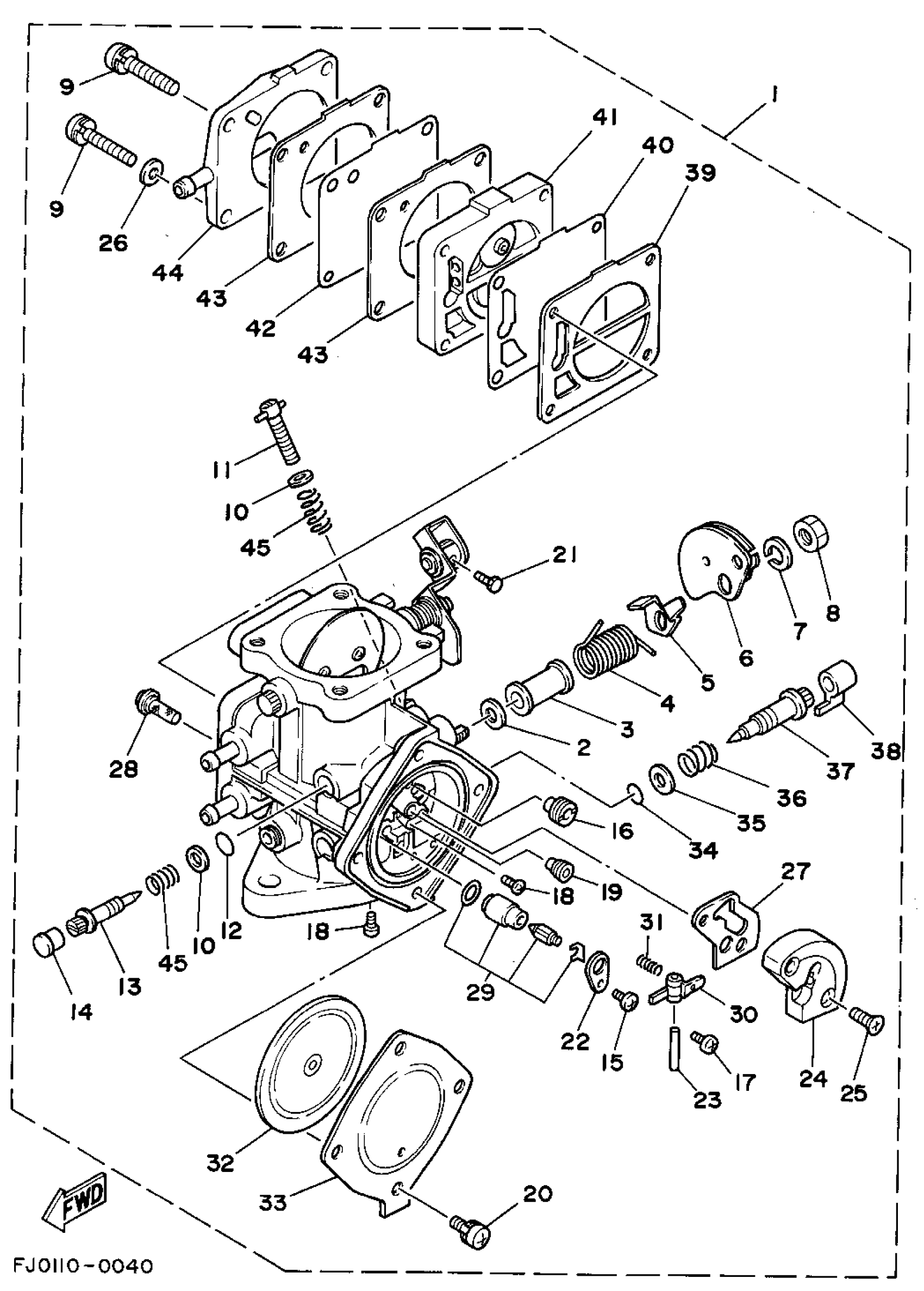

Find the part on the Carburetor diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1 (6R8-14301-00-00)
6R8-14301-01-00
2
. WASHER
6R7-14596-00-00
4
. SPRING
6K8-14556-10-00
6
. THROTTLE SHAFT ASSEMBLY
6K8-14930-00-00
10
WASHER,NEEDLE
812-14235-00-00
19
. JET, MAIN (#120)
830-14231-24-00
21
. SCREW
6K8-14592-00-00
25
. SCREW, FLAT HEAD (98702-04014-00 )
6K8-14523-10-00
26
WASHER, PLAIN (646)
92990-05600-00
30
ARM, DIAPHRAGM
812-14387-00-00
33
BODY,PUMP 1
6R7-14542-10-00
34
O-RING
36Y-14147-00-00
37
. SCREW, PILOT
6K8-14923-10-00
38
. CAP, CARBURETOR
6K8-14481-10-00
39
. GASKET, BODY 2
6K8-24435-10-00
40
. DIAPHRAGM
6K8-24411-10-00
41
. BODY 2
6K8-24413-10-00
45
. SPRING, ADJUST SCREW
6K8-14531-00-00
