1990 Yamaha Wave Runner III (WRA650D) Fuel Filter Diagram

← All diagrams

Find the part on the Fuel Filter diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

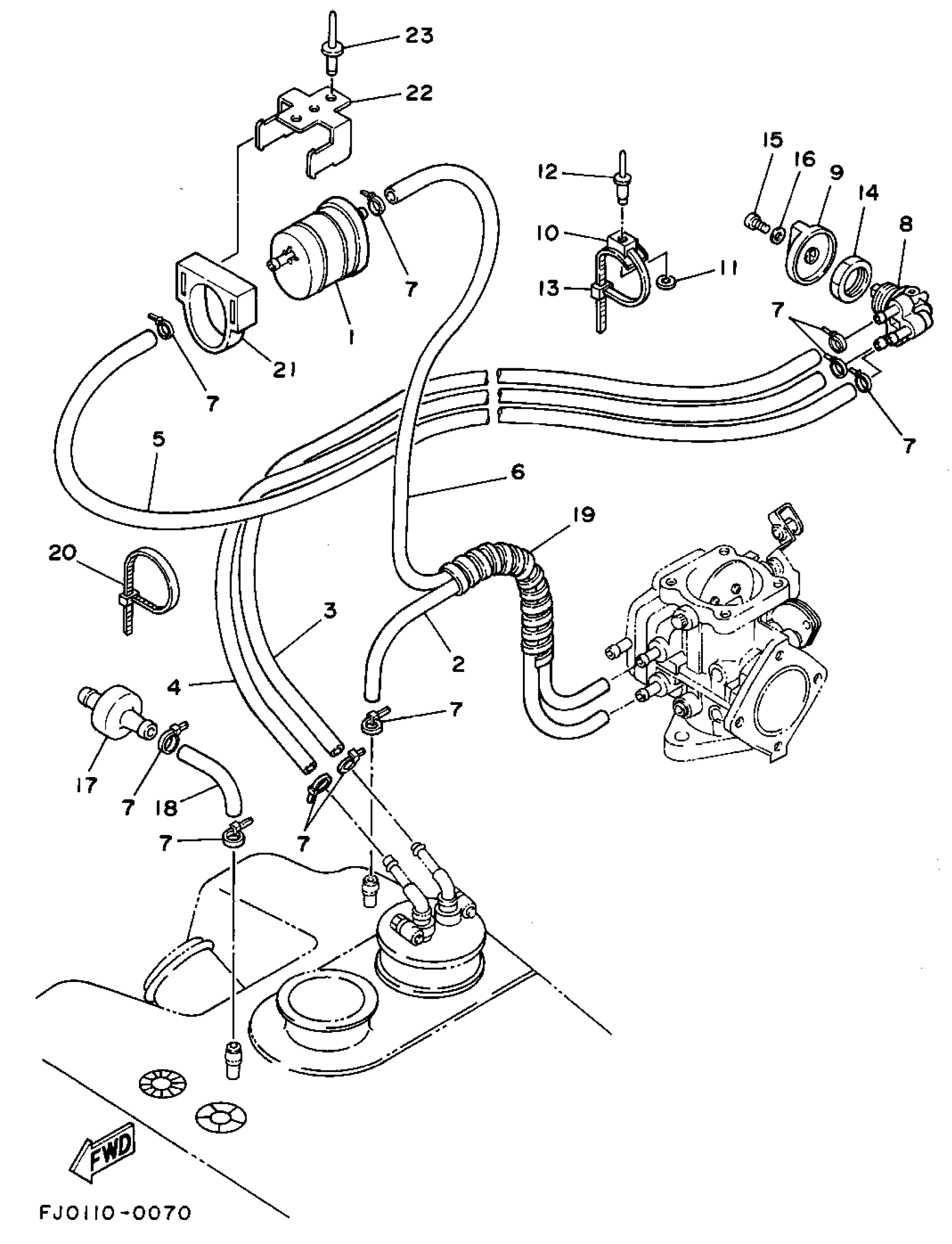

1990 Yamaha Wave Runner III (WRA650D) Fuel Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

2

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

3

HOSE (L1700)

90445-10M87-00

1
Out of stock

4

HOSE (L1700)

90445-10M87-00

1
Out of stock

5

HOSE (L1700)

90445-10M87-00

1
Out of stock

6

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

7

CLAMP

90465-10098-00

1

$2.24

In stock

8

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

9

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

10

CLAMP (90600-91729-00)

90-60092-52-70

1
Out of stock

11

. WASHER, PLAIN

90201-05925-00

1
Out of stock

12

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

13

BAND

90601-20008-00

1

$7.38

In stock

14

NUT

90170-22M11-00

1
Out of stock

15

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

16

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

17

CHECK VALVE

EU0-67767-31-00

1

$30.97

In stock

18

HOSE, AIR VENT 1

EU0-67856-00-00

1
Out of stock

19

SPI-LAP 11

90699-36100-00

1
Out of stock

20

BAND (EU0)

90601-20009-00

1

$6.46

In stock

21

HOLDER

EU0-67817-00-00

1

$17.99

In stock

22

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

23

RIVET (EU0)

90267-48938-00

1

$5.08

In stock
