Description

Price

1

MANIFOLD 1

6M6-13641-00-94

Unavailable

2

GASKET

6M6-13566-A2-00

Unavailable

3

MANIFOLD,INTAKE

6M6-13555-01-94

Unavailable

4

. PIPE, JOINT 4

652-24461-00-00

$5.31

5

CLAMP

90465-08028-00

$4.31

6

BOLT, STUD

90116-08M14-00

$5.07

7

NUT (661)

95380-08600-00

$6.14

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

GASKET

6M6-13563-A1-00

Unavailable

10

PLATE

6M6-14527-02-94

Unavailable

11

GASKET, MANIFOLD

6M6-13556-A1-00

$5.91

12

HOSE (L400)

90445-10M43-00

$5.96

13

CLAMP

90465-10098-00

$1.68

14

BOLT(3RV)

97014-06035-00

$1.54

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

REED VALVE ASSEMBLY

6M6-13610-00-00

Unavailable

17

. REED SET

688-W0004-00-00

$46.80

18

GASKET, VALVE SEAT

6M6-13621-A1-00

Unavailable

19

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

20

WASHER, PLAIN (646)

92990-05600-00

Unavailable

21

COVER, CARB. 1

(6M6-14283-01-98)

Unavailable

22

COVER, CARBURETOR 2

6M6-14284-00-8P

Unavailable

23

ELEMENT, AIR CLEANER

6M6-14451-00-00

Unavailable

24

BOLT, WASHER BASED

90105-05M52-00

Unavailable

25

BOLT(7U8)

97080-06020-00

$3.63

26

WASHER, PLAIN (646)

92990-06600-00

$1.84

27

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.99

28

PLATE

(6R7-14255-00-EK)

Unavailable

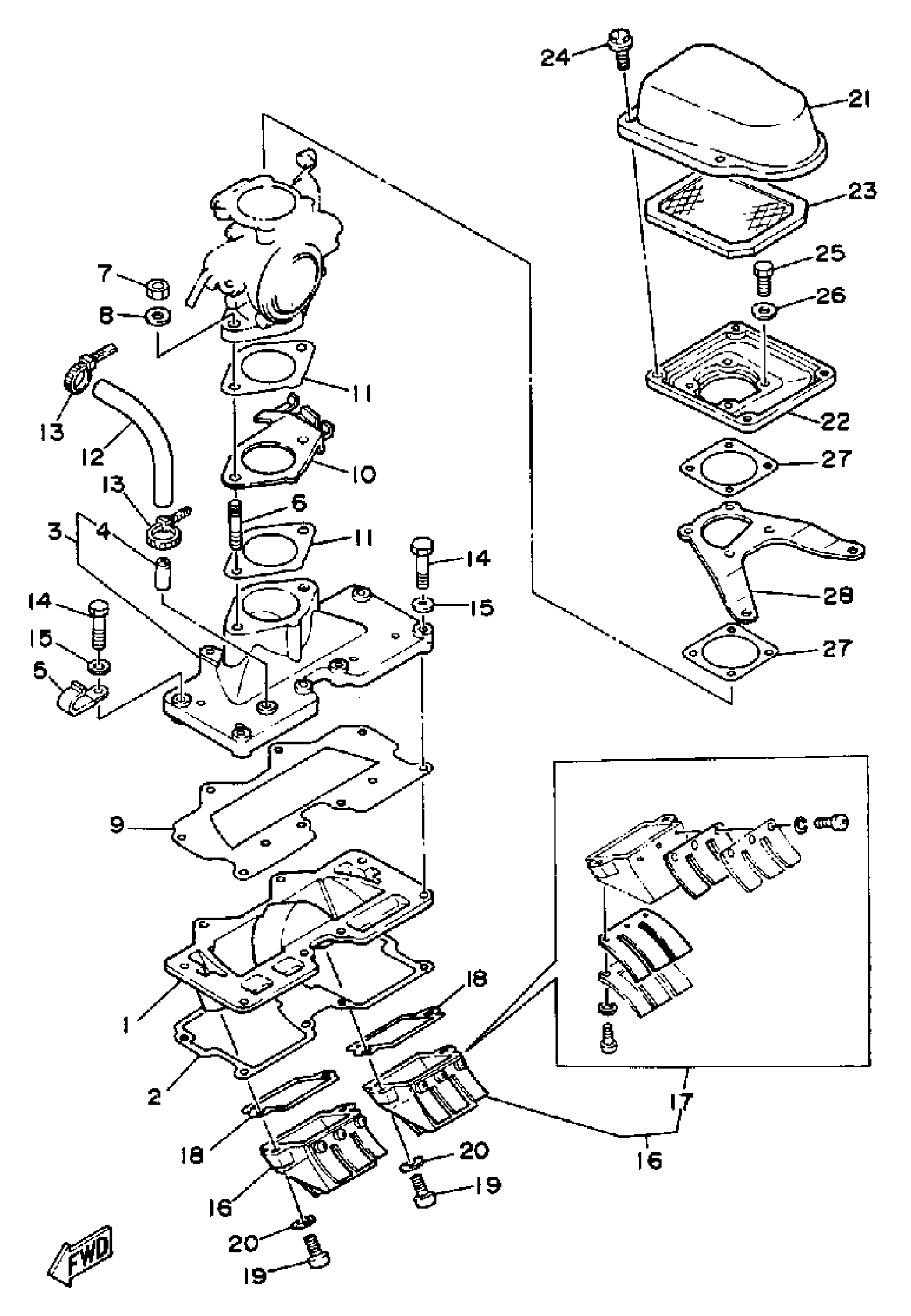

Yamaha WR650P 1991 AIR FILTER Diagram

MANIFOLD 1

GASKET

MANIFOLD,INTAKE

. PIPE, JOINT 4

CLAMP

BOLT, STUD

NUT (661)

.. WASHER, PLATE

GASKET

PLATE

GASKET, MANIFOLD

HOSE (L400)

CLAMP

BOLT(3RV)

WASHER, PLAIN (646)

REED VALVE ASSEMBLY

. REED SET

GASKET, VALVE SEAT

SCREW, PAN HEAD(6B0)

WASHER, PLAIN (646)

COVER, CARB. 1

COVER, CARBURETOR 2

ELEMENT, AIR CLEANER

BOLT, WASHER BASED

BOLT(7U8)

WASHER, PLAIN (646)

GASKET, AIR COOLER COVER 1

PLATE
