1991 Yamaha WR650P Exhaust 2 Diagram

← All diagrams

Find the part on the Exhaust 2 diagram for your 1991 Yamaha WR650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

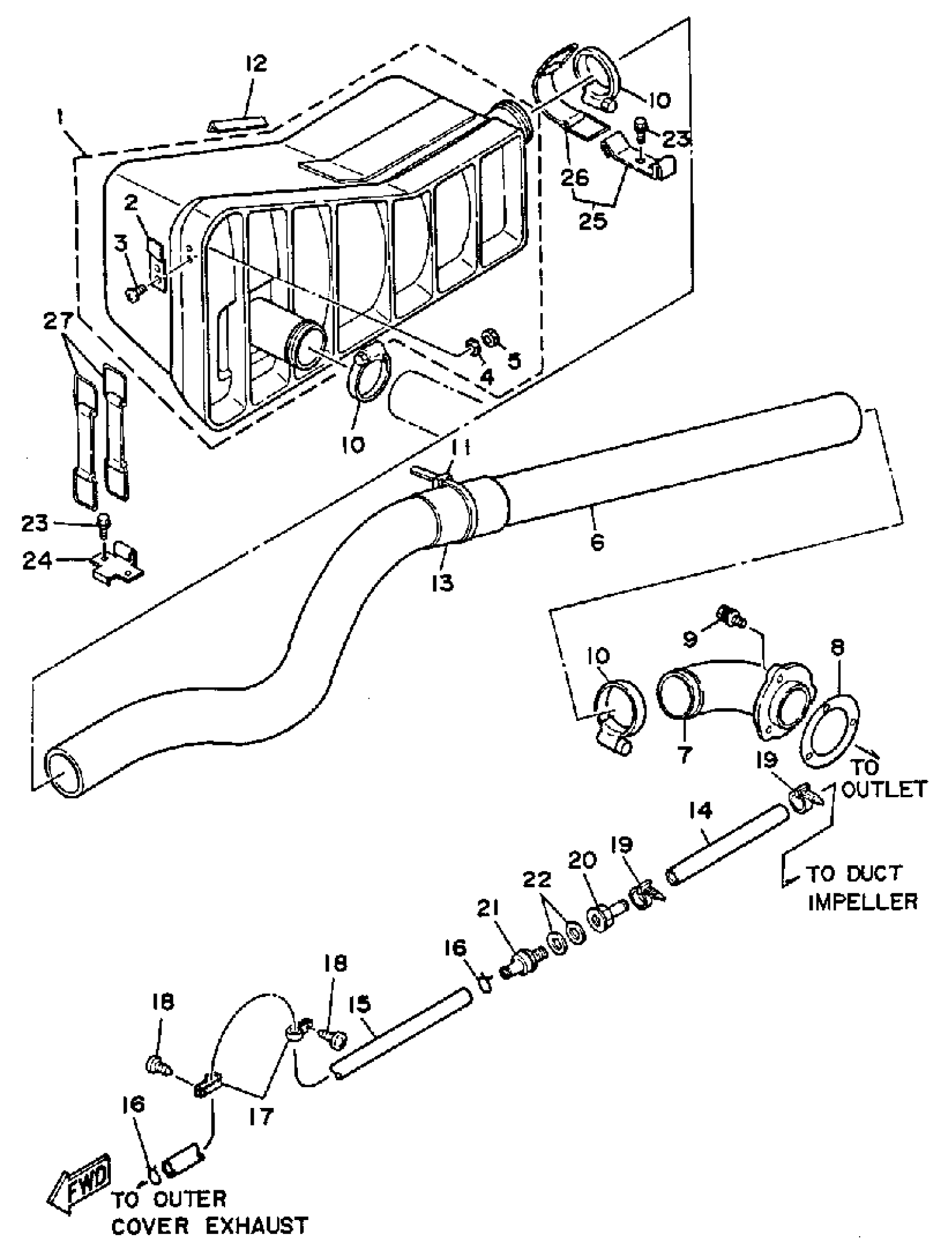

1991 Yamaha WR650P Exhaust 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER LOCK COMP.

EU0-67550-03-00

1
Out of stock

2

HOOK B

EU0-67567-00-00

1
Out of stock

3

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

6

HOSE, EXHAUST

EU0-U7555-00-00

1
Out of stock

7

THRU-HULL

EU0-67565-00-00

1
Out of stock

8

PACKING

EU0-67525-01-00

1
Out of stock

9

BOLT, WITH WASHER (EW3)

90119-05912-00

1

$4.00

In stock

10

BAND, HOSE 52

90601-15272-00

1
Out of stock

11

BAND (EU0)

90601-20009-00

1

$6.46

In stock

12

MAT 5

EU0-67593-61-00

1
Out of stock

13

HOSE, PROTECTOR

EU0-67576-00-00

1
Out of stock

14

HOSE

90445-13M04-00

1
Out of stock

15

HOSE

90445-13M05-00

1
Out of stock

16

. CLIP

90467-12M11-00

1

$2.10

In stock

17

CLIP, NYLON 17

90600-91728-00

1

$5.54

In stock

18

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

19

CLAMP

90465-10098-00

1

$2.24

In stock

20

CONNECTION, THRU-HULL 1/4

90604-80757-00

1
Out of stock

21

CONNECTION, THRU-HULL 1/4

90604-80758-00

1
Out of stock

22

GASKET

90430-13909-00

1
Out of stock

23

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

24

HOOK D

EU0-67568-00-00

1
Out of stock

25

HOOK C

EU0-67570-00-00

1
Out of stock

26

BAND

EU0-67569-02-00

1
Out of stock

27

BAND

EU0-67569-02-00

1
Out of stock
