1990 Yamaha Wave Runner LX (WR650D) Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 1990 Yamaha Wave Runner LX (WR650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

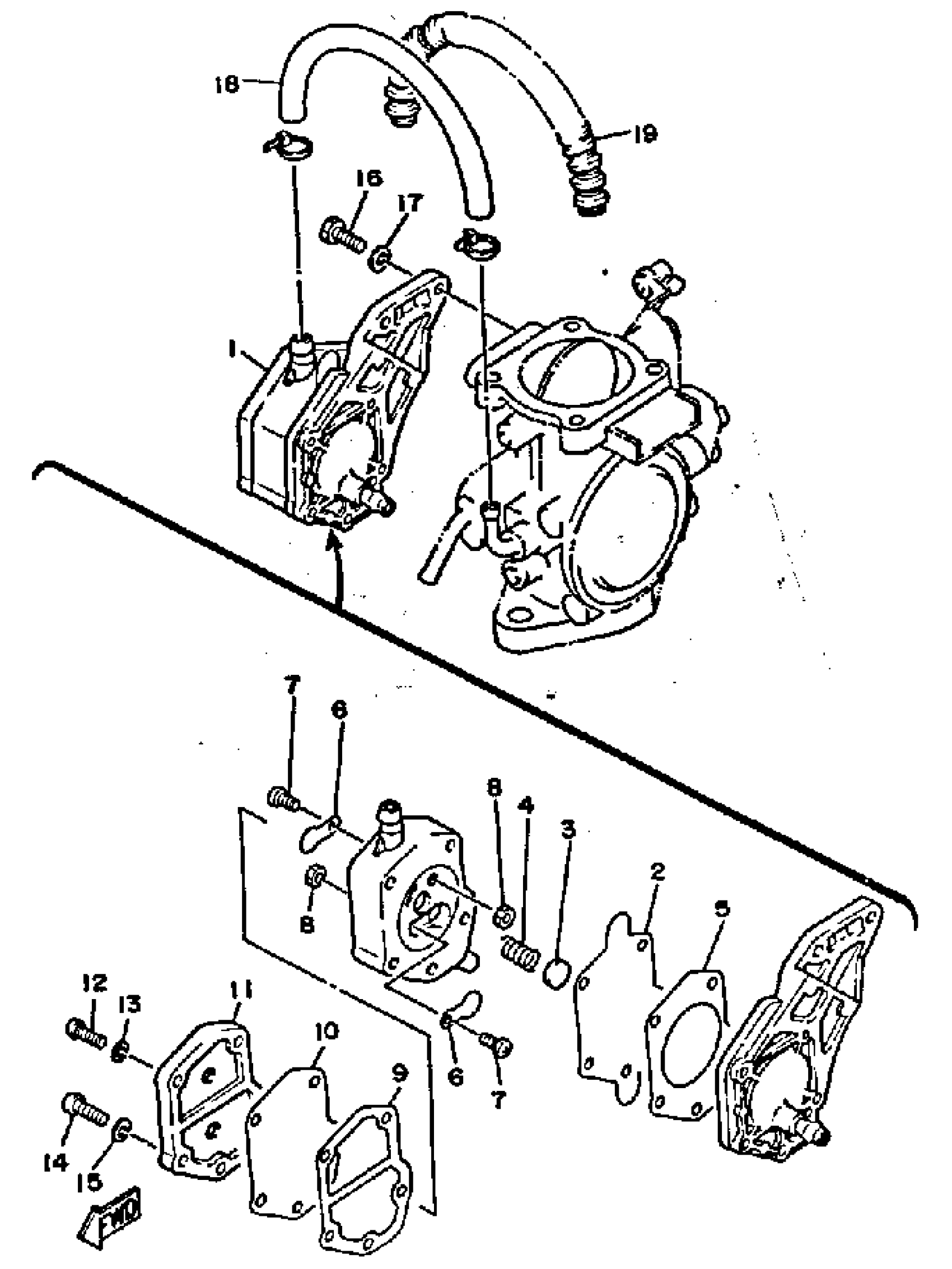

1990 Yamaha Wave Runner LX (WR650D) Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP ASSEMBLY

6M6-24410-01-00

1
Out of stock

2

. DIAPHRAGM

648-24411-00-00

1

$25.37

In stock

3

. SEAT, SPRING

648-24424-00-00

1

$4.38

In stock

4

. SPRING, DIAPHRAGM

648-24423-00-00

1

$5.38

In stock

5

. GASKET, BODY

648-24434-01-00

1

$7.12

In stock

6

VALVE, CHECK

62Y-24421-01-00

1

$13.45

In stock

7

. SCREW, PAN HEAD

90147-03M00-00

1
Out of stock

8

. NUT

98813-03100-00

1
Out of stock

9

GASKET, BODY 2

648-24435-03-00

1
Out of stock

10

. DIAPHRAGM

663-24411-00-00

1

$9.10

In stock

11

BODY 2

6M6-24413-02-00

1

$46.49

In stock

12

. SCREW, PAN HEAD

98580-05530-00

1

$3.84

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

BOLT(7U8)

97080-06020-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

19

HOSE(6TC)

90446-14M51-00

—

$6.08

In stock
