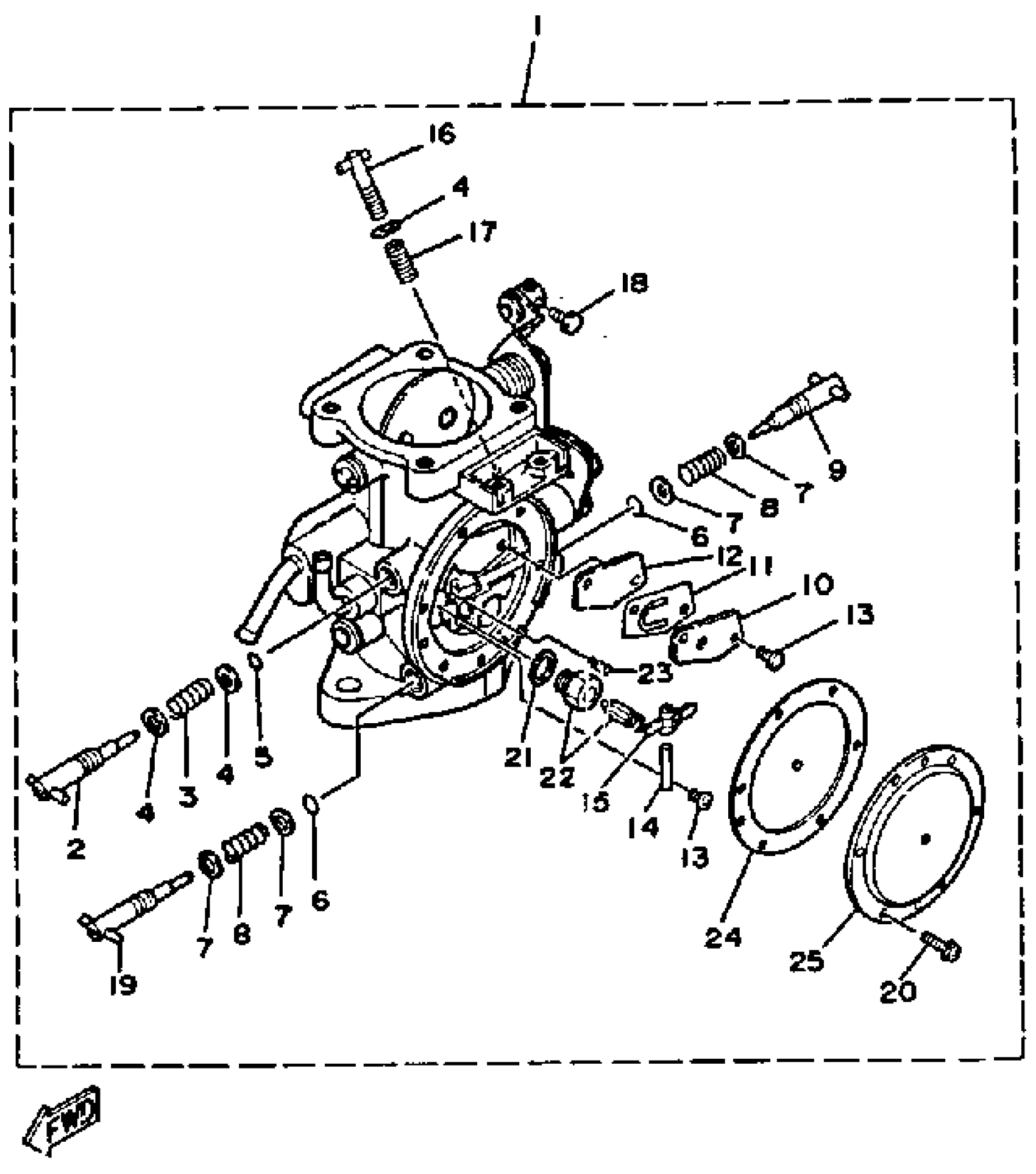

Find the part on the Carburetor diagram for your 1990 Yamaha Wave Runner LX (WR650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner LX (WR650D) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY

6M6-14301-11-00

1
Out of stock

2

. PLATE, NEEDLE FTNG

6M6-14946-00-00

1
Out of stock

3

. SPRING, ADJUST SCREW

6K8-14533-00-00

1
Out of stock

4

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

5

. O-RING

6K8-14562-00-00

1

$1.91

In stock

6

. O-RING

6K8-14561-00-00

1
Out of stock

7

. WASHER

6K8-14537-00-00

1

$3.23

In stock

8

. SPRING

6K8-14589-00-00

1

$4.62

In stock

9

. SPRING

6K8-14923-00-00

1
Out of stock

10

PLATE

6K8-14527-00-00

1
Out of stock

11

. DIAPHRAGM

6K8-14545-00-00

1
Out of stock

12

. GASKET

6M6-14536-00-00

1
Out of stock

13

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

14

. PIN, FLOAT

6K8-14579-00-00

1
Out of stock

15

. ARM, FLOAT

6K8-14547-01-00

1

$7.56

In stock

16

SCREW,ADJUST

6M6-14521-01-00

1
Out of stock

17

. SPRING, ADJUST SCREW

6K8-14531-00-00

1
Out of stock

18

. SCREW

6K8-14592-00-00

1
Out of stock

19

. SCREW, PILOT

6M6-14923-00-00

1
Out of stock

20

. SCREW, WITH WASHER

97980-04108-00

1

$2.77

In stock

21

. WASHER

6K8-14597-00-00

1

$6.46

In stock

22

. NEEDLE

6M6-14916-00-00

1
Out of stock

23

. SPRING

6K8-14253-00-00

1
Out of stock

24

. DIAPHRAGM

6K8-14541-00-00

1
Out of stock

25

. COVER

6M6-14293-00-00

1
Out of stock
