1990 Yamaha Wave Runner LX (WR650D) AIR Filter Diagram

← All diagrams

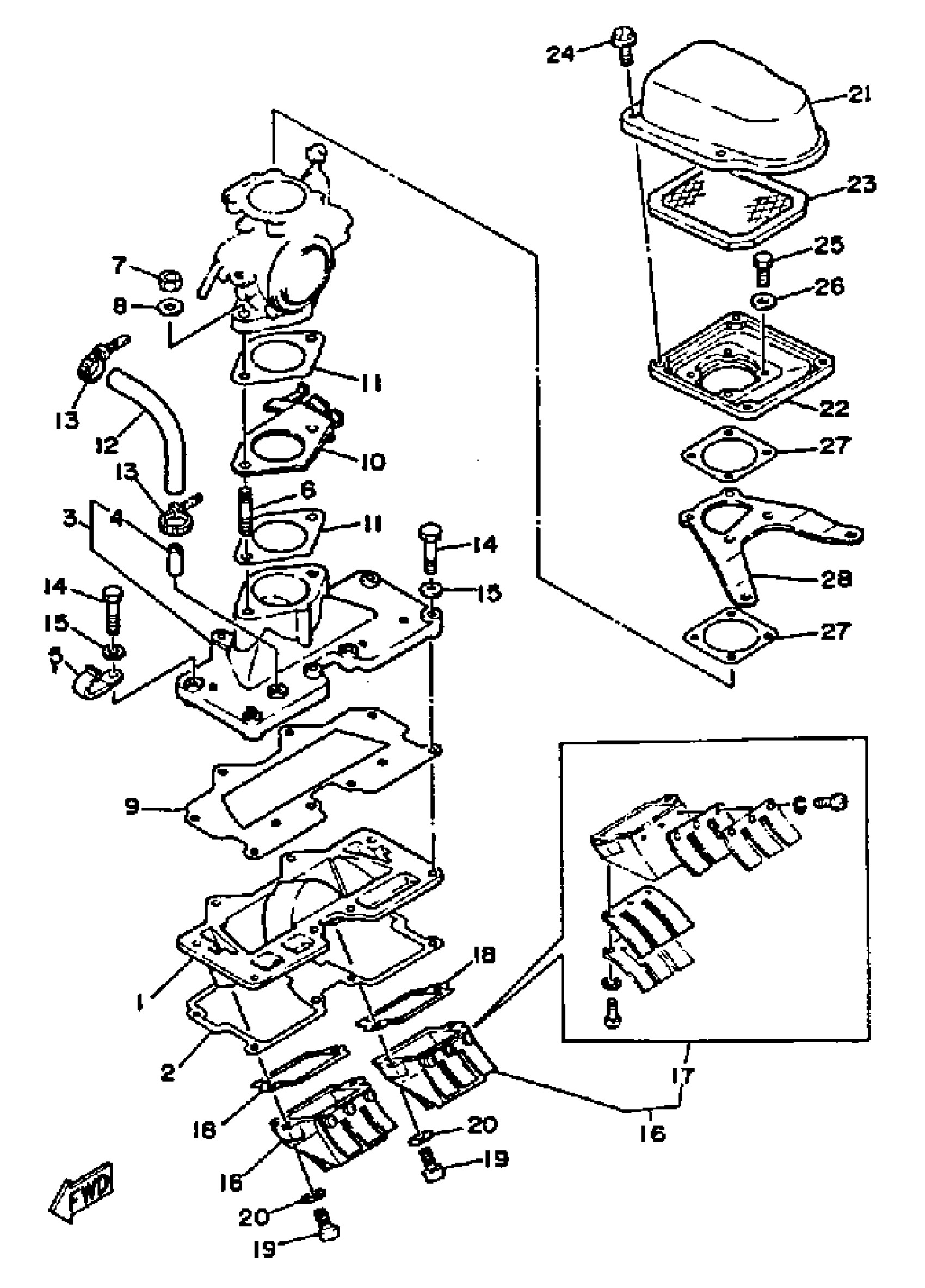

Find the part on the AIR Filter diagram for your 1990 Yamaha Wave Runner LX (WR650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner LX (WR650D) AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD 1

6M6-13641-00-94

1
Out of stock

2

GASKET

6M6-13566-A2-00

1
Out of stock

3

MANIFOLD,INTAKE

6M6-13555-01-94

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1

$4.74

In stock

5

CLAMP

90465-08028-00

1

$4.62

In stock

6

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

7

NUT (661)

95380-08600-00

1

$6.23

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

GASKET

6M6-13563-A1-00

1
Out of stock

10

PLATE

6M6-14527-02-94

1
Out of stock

11

GASKET, MANIFOLD

6M6-13556-A1-00

1

$6.00

In stock

12

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

REED VALVE ASSEMBLY

6M6-13610-00-00

1
Out of stock

17

. REED SET

688-W0004-00-00

1

$63.06

In stock

18

GASKET, VALVE SEAT

6M6-13621-A1-00

1
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

21

COVER, CARBURETOR

6M6-14283-00-98

1

$111.99

In stock

22

COVER, CARBURETOR 2

6M6-14284-00-8P

1
Out of stock

23

ELEMENT, AIR CLEANER

6M6-14451-00-00

1
Out of stock

24

BOLT, WASHER BASED

90105-05M44-00

1
Out of stock

25

BOLT(7U8)

97080-06020-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

27

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1

$5.08

In stock

28

PLATE

6M6-14255-00-EK

1
Out of stock
