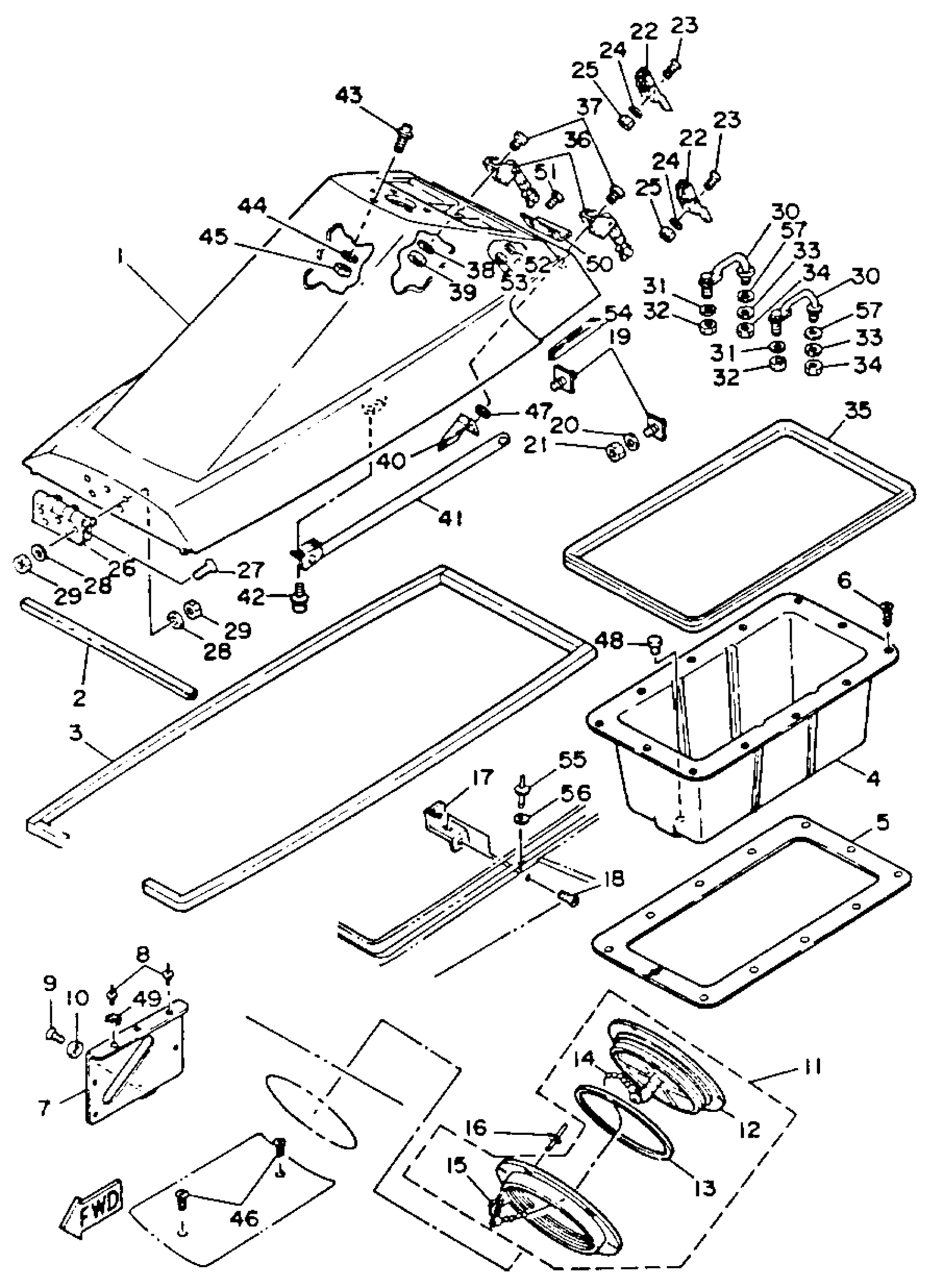

Yamaha WR500Q (WAVE RUNNER) 1992 HULL - DECK 1 Diagram

#

Description
Price

1

ENGINE HATCH (BLUE)

EU0-U516A-00-00

Unavailable

2

PACKING 8

EU0-U2688-00-00

Unavailable

3

PACKING 2

EU0-U2664-00-00

Unavailable

4

LOCKER, UNDER 2

EU0-64742-01-00

Unavailable

4

LOCKER, UNDER 2

EU0-64742-01-00

Unavailable

5

PACKING 34

90656-U1131-00

Unavailable

6

SCREW, TAPPING

97780-50220-00

$2.24

6

SCREW, TAPPING

97780-50220-00

$2.24

7

BRACKET

EU0-68156-02-00

Unavailable

8

RIVET, BLIND

90267-48934-00

Unavailable

9

SCREW, FLAT HEAD

98780-06016-00

$5.22

10

WASHER, FINISH

90207-06901-00

$6.27

11

INSPECTION CVR ASY

EU0-62720-31-00

Unavailable

12

COVER, INSPECTION

EU0-62721-31-00

Unavailable

13

. RING

93211-03902-00

Unavailable

14

. CHAIN BALL

EU0-67835-30-00

Unavailable

15

COUPLING

EU0-67839-00-00

$6.27

16

RIVET, BLIND

90267-40937-00

$3.84

17

BRACKET, HATCH SUPP

EU0-62884-02-00

Unavailable

18

SCREW, FLAT HEAD

98780-06016-00

$5.22

19

STOPPER, SEAT 1

EU0-63729-03-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

$2.52

21

NUT, NYLON (6J8)

95780-08300-00

$11.48

22

BRACKET, HATCH LOCK

EU0-62841-01-00

Unavailable

23

SCREW, FLAT HEAD

98780-05020-00

$2.16

24

. WASHER, PLAIN

92990-05200-00

$4.71

25

NUT, FLANGE

95720-05300-00

$1.29

26

HINGE

90600-70069-00

$107.45

27

SCREW, FLAT HEAD

98780-05020-00

$2.16

28

. WASHER, PLAIN

92990-05200-00

$4.71

29

NUT, FLANGE

95720-05300-00

$1.29

30

CLEAT

EU0-61638-01-00

Unavailable

31

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

32

NUT, SELF-LOCKING

95720-06300-00

$1.72

33

WASHER, PLAIN

92990-08200-00

$2.52

34

. NUT, SELF-LOCKING

95720-08300-00

$3.41

35

PACKING 1

EU0-62663-01-00

$197.00

36

HOOK, HATCH LOCK

EU0-62843-02-00

Unavailable

37

SCREW, PAN HEAD

98580-05020-00

$1.43

38

. WASHER, PLAIN

92990-05200-00

$4.71

39

NUT, FLANGE

95720-05300-00

$1.29

40

FIX PLATE

EU0-62892-02-00

Unavailable

41

SUPPORT, HATCH

FJ0-62891-01-00

$119.39

42

SCREW, WITH WASHER

90159-06901-00

$8.94

43

PIN, STOPPER

EU0-61314-30-00

Unavailable

44

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

45

NUT, FLANGE

95780-10300-00

$10.25

46

SCREW, FLAT HEAD

98780-04016-00

$1.29

47

. WASHER, PLAIN

92990-05200-00

$4.71

48

PLUG(EU0)

90605-50201-00

Unavailable

49

WASHER, SPEC. SHAPE

90209-07919-00

Unavailable

50

GUIDE, SEAT

EU0-U3783-00-00

Unavailable

51

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.31

52

. WASHER, PLAIN

92990-05200-00

$4.71

53

NUT, FLANGE

95720-05300-00

$1.29

54

TRIM

EU0-U5162-00-00

Unavailable

55

RIVET (EU0)

90267-48938-00

$4.72

56

. WASHER, PLAIN

92990-05200-00

$4.71

57

WASHER, PLAIN

90202-08920-00

Unavailable
