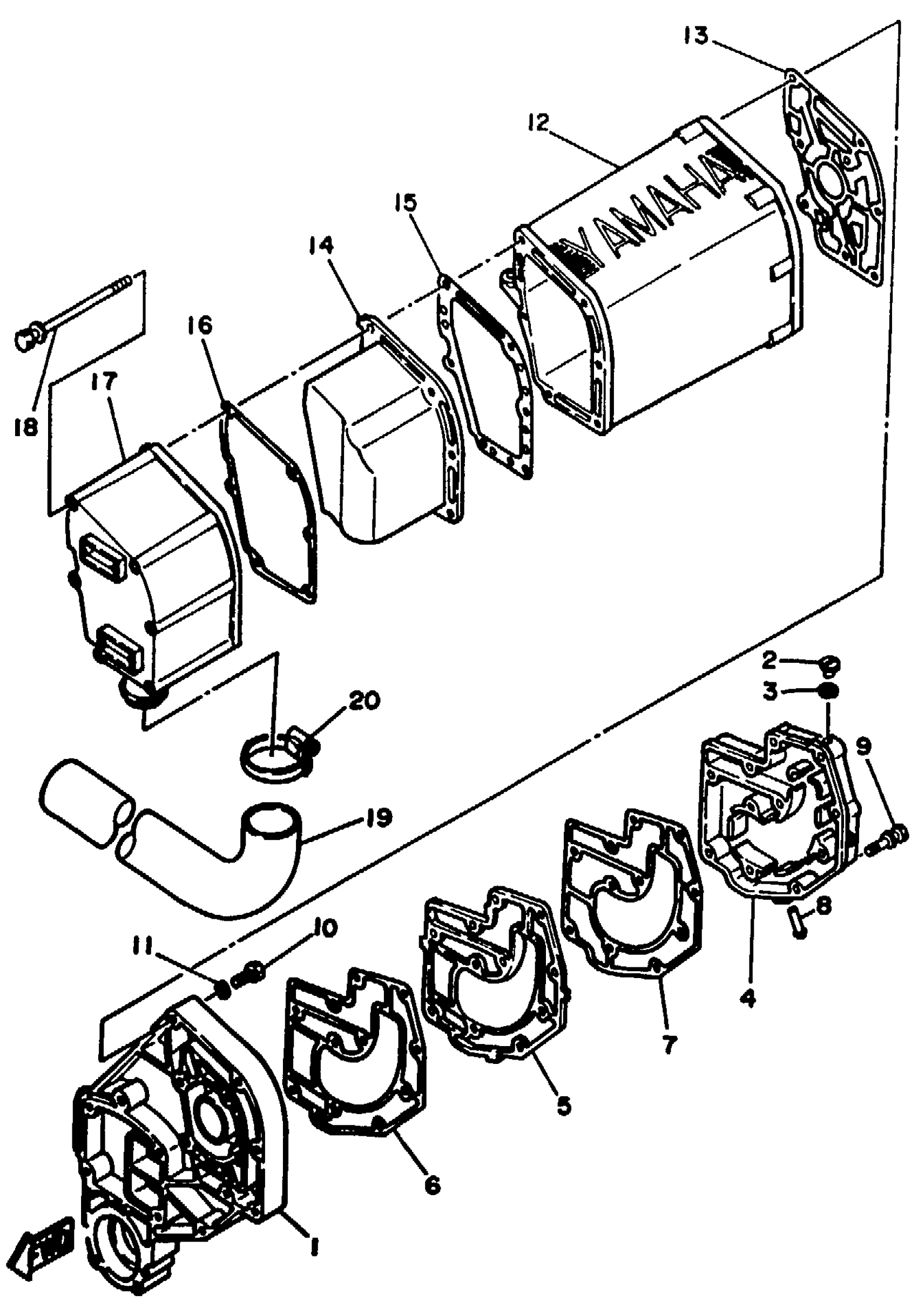

Find the part on the Exhaust 1 diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner (WR500D) Exhaust 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST GUIDE

6K8-41137-00-94

1
Out of stock

2

PLUG, STRAIGHT SCREW

90340-08002-00

1
Out of stock

3

GASKET

90430-08003-00

1
Out of stock

4

EXHAUST OUTER CVR.

6K8-41113-00-8S

1
Out of stock

5

EXHAUST INNER CVR.

6K8-41111-00-9M

1
Out of stock

6

1

$22.99

In stock

7

. GASKET EXHAUSTEXHAUST INNER COVER

6K8-41112-A1-00

1
Out of stock

8

. PIPE

6K8-51385-00-00

1
Out of stock

9

BOLT, WITH WASHER

90119-08M38-00

1
Out of stock

10

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

PROTECTOR, MUFF 1

6K8-14718-00-9M

1

$91.99

In stock

13

. GASKET, SILENCER

6K8-14755-A1-00

1
Out of stock

14

MUFFLER R

6K8-14721-00-9M

1
Out of stock

15

. GASKET, MUFF DMPR 1MUFFLER DAMPER 1

6K8-14739-A1-00

1
Out of stock

16

. GASKET, MUFF DMPR 2MUFFLER DAMPER 2

6K8-14749-A1-00

1
Out of stock

17

PROTECTOR, MUFF 1

6K8-14718-00-9M

1

$91.99

In stock

18

BOLT, WITH WASHER

90119-06M37-00

1
Out of stock

19

PIPE, OUTLET

6K8-14752-00-00

1
Out of stock

20

BAND, HOSE 52

90601-15272-00

1
Out of stock
