1990 Yamaha Wave Runner (WR500D) Crankshaft - Piston Diagram

← All diagrams

Find the part on the Crankshaft - Piston diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

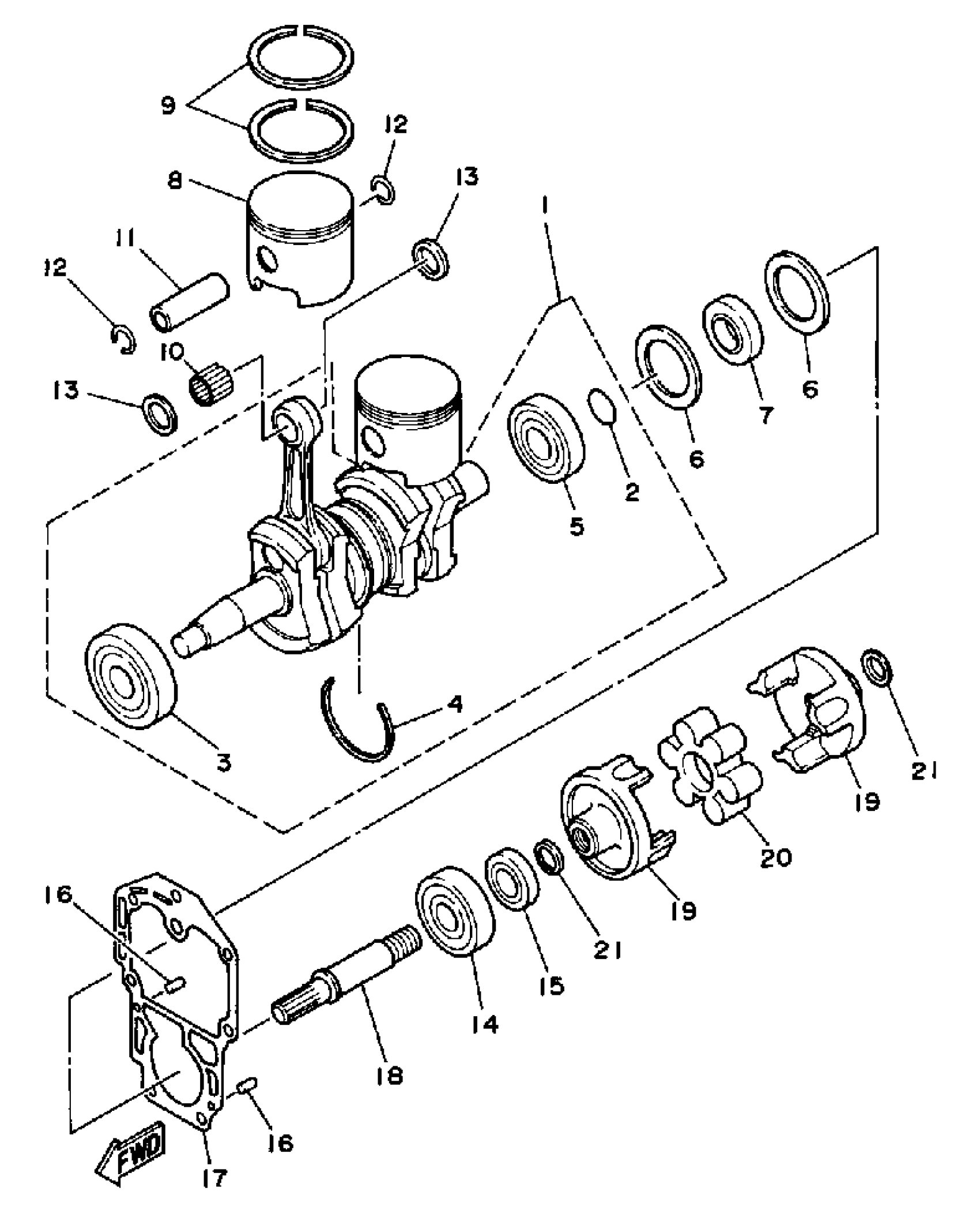

1990 Yamaha Wave Runner (WR500D) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

6K8-11400-00-00

1
Out of stock

2

O-RING (M124)

93210-16772-00

1

$1.45

In stock

3

. BEARING

93306-306U3-00

1
Out of stock

4

. CIRCLIP, OUTER

93440-62021-00

1
Out of stock

5

BEARING

93306-30571-00

1
Out of stock

6

WASHER, PLATE

90201-50306-00

1

$5.53

In stock

7

. OIL SEAL, S-TYPE

93101-25M38-00

1
Out of stock

8

PISTON (STD) (STD)

6K8-11631-00-95

1
Out of stock

8

1

$114.99

In stock

9

PISTON RING SET (STD)

6K8-11610-01-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

6K8-11610-21-

1
Out of stock

10

PIN, DOWEL

93602-20M02-00

1

$3.30

In stock

11

PIN, PISTON

689-11633-00-00

1

$13.83

In stock

12

CLIP, PISTON PIN

688-11634-00-00

1

$5.08

In stock

13

WASHER, PLATE

90201-20M27-00

1
Out of stock

14

BEARING

93306-305U6-00

1
Out of stock

15

. OIL SEAL

93101-25M35-00

1

$13.85

In stock

16

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

17

GASKET, UPPER CASING

61T-45113-A0-00

1

$15.14

In stock

18

SHAFT, DRIVE 4

6K8-45514-00-00

1
Out of stock

19

FLANGE COUPLING

6K8-45813-00-9M

1

$85.99

In stock

20

RUBBER SHAFT CPLNG

6K8-4581J-00-00

1

$116.99

In stock

21

WASHER, PLATE

90201-20M21-00

1

$6.77

In stock
