1990 Yamaha Wave Runner (WR500D) Crankcase - Cylinder Diagram

← All diagrams

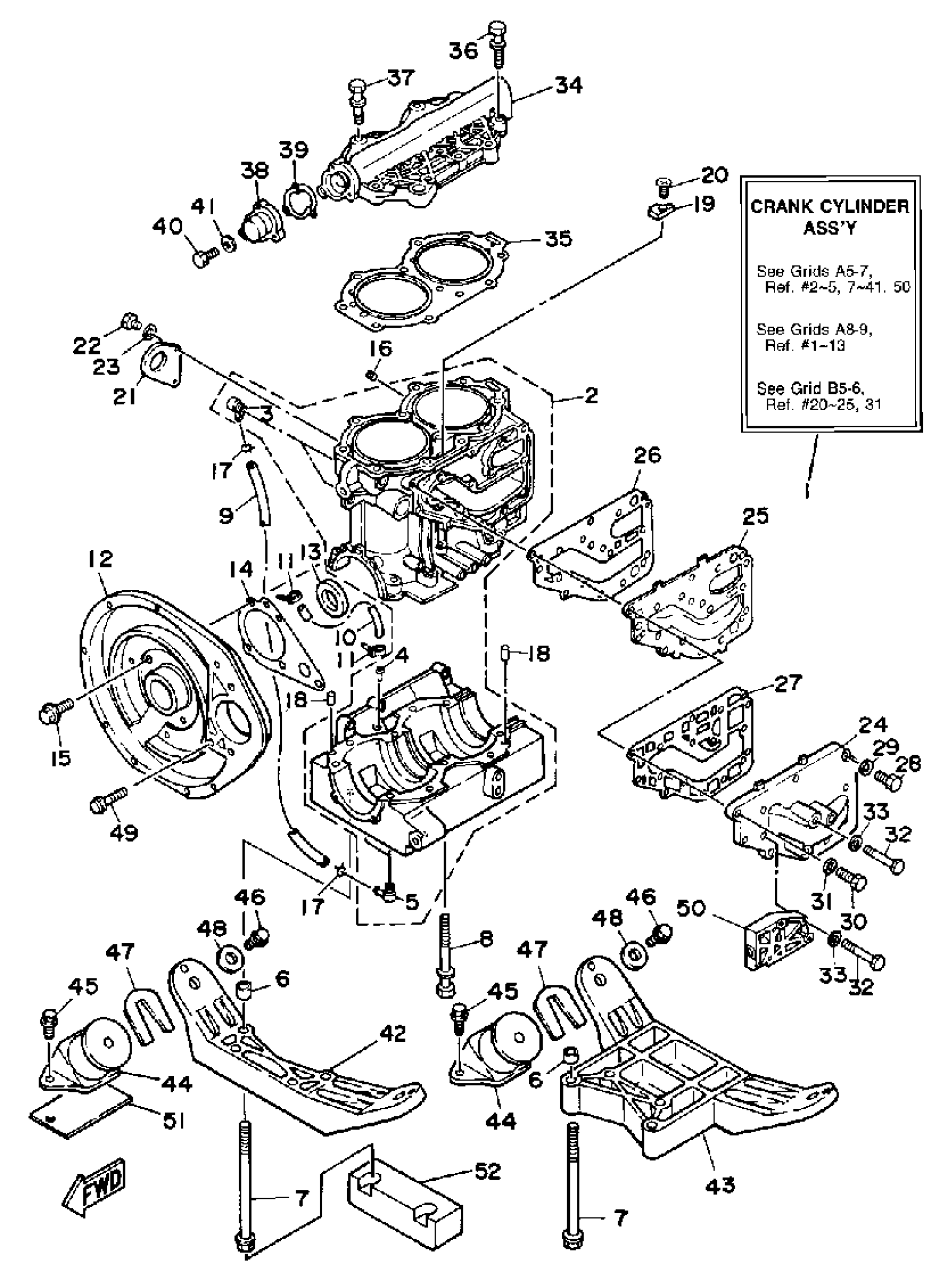

Find the part on the Crankcase - Cylinder diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner (WR500D) Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK-CYL ASY

6K8-W0090-04-4D

1
Out of stock

2

CRANKCASE ASY

6K8-15100-01-8P

1
Out of stock

3

NIPPLE, HOSE

650-11372-01-00

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1
Out of stock

5

CHECK VALVE ASSY

646-11370-01-00

1
Out of stock

6

COLLAR(3HM)

90387-085N0-00

1
Out of stock

7

BOLT, WITH WASHER

90119-08M98-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08M99-00

1
Out of stock

9

HOSE (L390)

90445-07M90-00

1
Out of stock

10

HOSE

90445-09222-00

1
Out of stock

11

CLAMP

90465-10098-00

1
Out of stock

12

HOUSING, OIL SEAL

6K8-15359-01-94

1
Out of stock

13

OIL SEAL

(93102-25M45-00)

1
Out of stock

14

. GASKET, O/SL HSNG

6K8-15369-A1-00

1
Out of stock

15

BOLT, FLANGE

90105-06M09-00

1
Out of stock

16

PLUG, TAPER

90336-10003-00

1
Out of stock

17

CLIP

90467-06016-00

1
Out of stock

18

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

19

ANODE

689-11325-00-00

1
Out of stock

20

SCREW, FLAT

98707-06020-00

—
Out of stock

21

HANGER, ENGINE

6K8-11119-00-00

1
Out of stock

22

BOLT (661)

97013-06012-00

—
Out of stock

23

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

24

OUTER COVER, EXHST

6K8-41123-00-9M

1
Out of stock

25

INNER COVER,EXHAUST

6K8-41121-00-1S

1
Out of stock

26

. GASKET, EXHAUST OUTER COVER

6K8-41124-A1-00

1
Out of stock

27

. GASKET, EXHAUST INNER COVER

6K8-41122-A1-00

1
Out of stock

28

BOLT

90101-06M27-00

1
Out of stock

29

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

30

BOLT(JF7)

97080-06030-00

—
Out of stock

31

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

32

BOLT, HEXAGON

97013-06050-00

—
Out of stock

33

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

34

HEAD, CYLINDER

689-11111-01-1S

1
Out of stock

35

. GASKET, CYLINDER HEAD 1

6K8-11181-A1-00

1
Out of stock

36

BOLT, WITH WASHER

90119-08009-00

1
Out of stock

37

BOLT, WITH WASHER(63V)

90119-08M07-00

—
Out of stock

38

COVER, THERMOSTAT

655-12413-01-1S

1
Out of stock

39

. GASKET, COVER

655-12414-A1-00

1
Out of stock

40

BOLT(7U8)

97080-06020-00

1
Out of stock

41

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

42

BRACKET COMP.1

6K8-44518-00-94

1
Out of stock

43

BRACKET 2

6K8-44519-00-94

1
Out of stock

44

MOUNT RUBBER

6K8-44517-01-94

1
Out of stock

45

BOLT, WASHER BASED

90105-08M38-00

1
Out of stock

46

BOLT, WITH WASHER

90119-08904-00

1
Out of stock

47

SHIM (T=0.1)

EU0-67354-A0-00

1
Out of stock

47

SHIM (T=0.3)

EU0-67354-B0-00

1
Out of stock

47

SHIM (T=0.5)

EU0-67354-C0-00

1
Out of stock

47

SHIM (T=1.0)

EU0-67354-D0-00

1
Out of stock

47

SHIM (T=2.0)

EU0-67354-E0-00

1
Out of stock

48

PLATE

EU0-67324-00-00

1
Out of stock

49

BOLT, WASHER BASED

90105-08M38-00

1
Out of stock

50

BRACKET, STRTG MTR

6K8-81822-00-94

1
Out of stock

51

LINER

EU0-67323-00-00

1
Out of stock

52

DAMPER

EU0-67361-01-00

1
Out of stock
