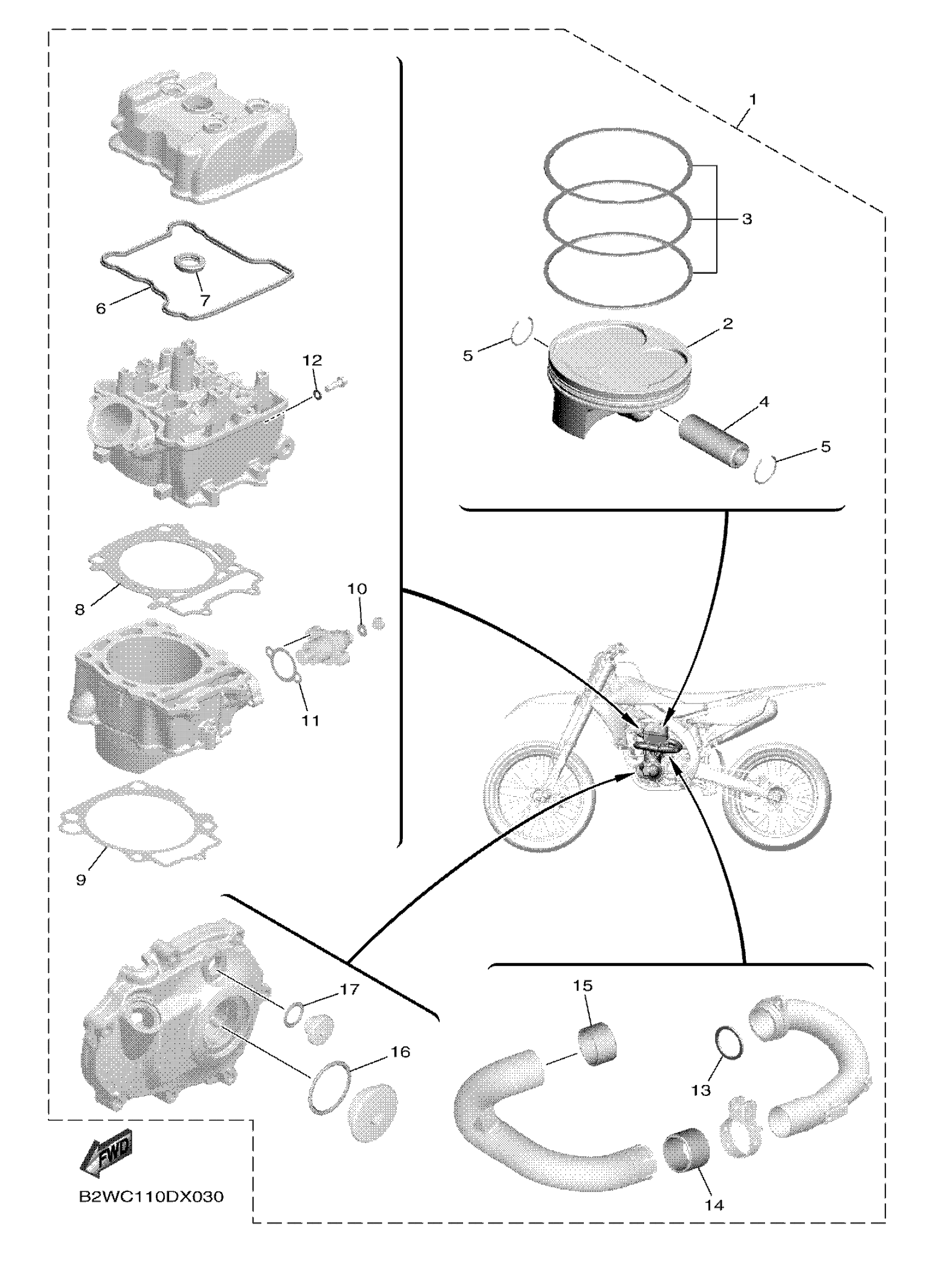

Yamaha WR450FP (WR450F) BDBA 2023 4 PISTON REBUILT KIT Diagram

PISTON REBUILT KIT

B2W-WB033-10-00

$165.97

PISTON (STD)

B2W-11631-00-00

$108.15

PISTON RING SET (STD)

B2W-11603-00-00

$37.78

PIN, PISTON

BR9-11633-10-00

$56.42

CIRCLIP (2F1)

93450-19052-00

$5.17

GASKET, HEAD COVER 1

B2W-11193-00-00

$17.45

GASKET, HEAD COVER 2

1SM-11194-00-00

$13.33

GASKET, CYLINDER HEAD 1

B2W-11181-00-00

$21.79

GASKET, CYLINDER

B2W-11351-00-00

$11.42

GASKET

5EL-12214-00-00

$5.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

GASKET 256113960000

90430-06014-00

Unavailable

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

GASKET, MUFFLER

5XD-14714-00-00

$24.60

GASKET, MUFFLER

1SL-14714-00-00

$23.98

O-RING

93210-35804-00

Unavailable

O-RING (2H9)

93210-14369-00

Unavailable
