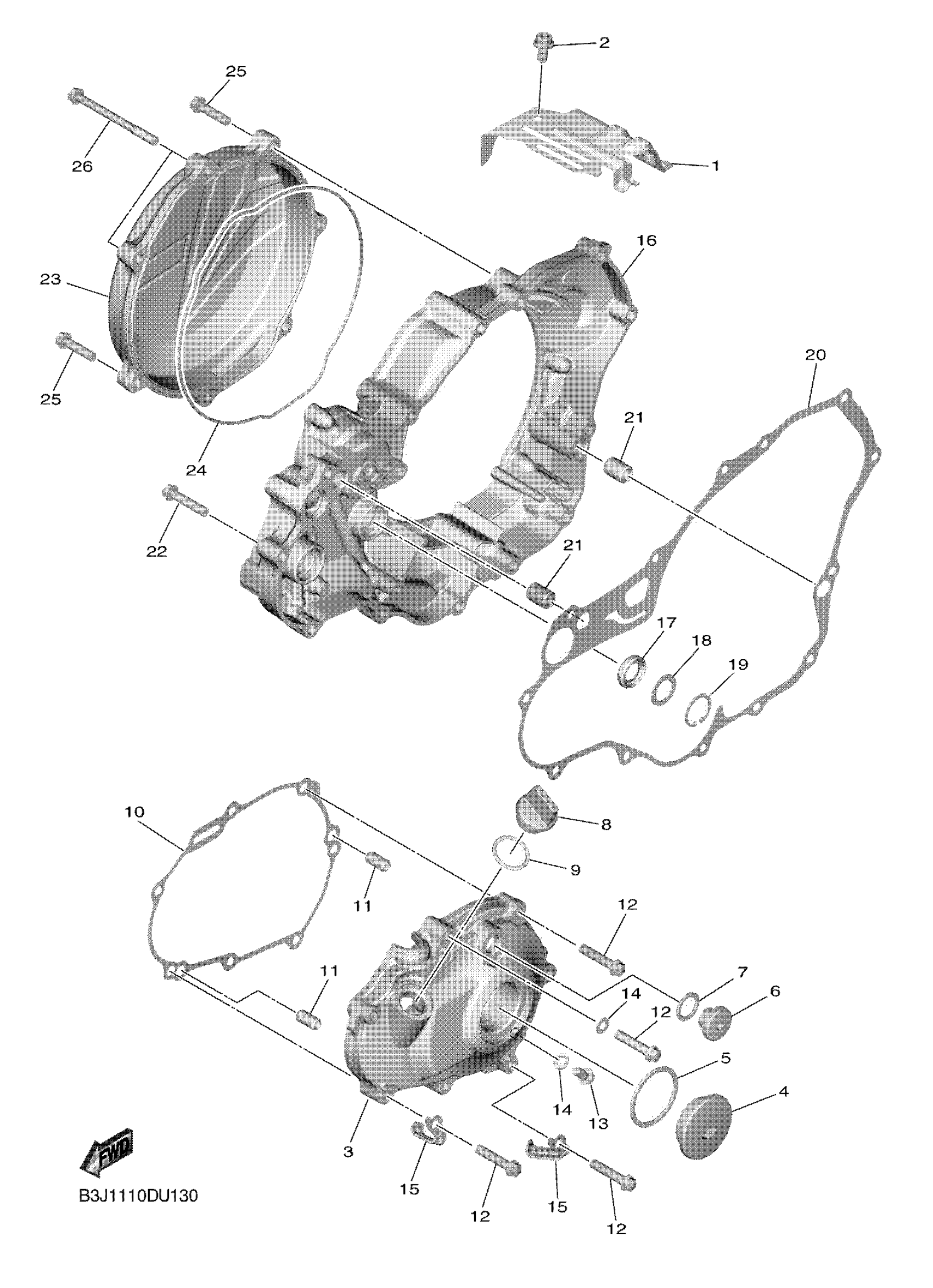

Yamaha WR450FP (WR450F) BDBA 2023 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, STARTING MOTOR

B3J-15436-00-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-06427-00

Unavailable

3

COVER, CRANKCASE 1

BR9-15411-00-00

$131.86

4

PLUG, STRAIGHT SCREW

90340-36007-00

$20.85

5

O-RING

93210-35804-00

$0.46

6

PLUG, STRAIGHT SCREW

90340-14021-00

$25.03

7

O-RING (2H9)

93210-14369-00

$5.42

8

PLUG, OIL

3Y1-15363-10-00

$15.94

9

O-RING (646)

93210-19123-00

Unavailable

10

GASKET, CRANKCASE COVER 1

BR9-15451-00-00

$9.99

11

PIN, DOWEL(3XW)

91808-16023-00

$5.26

12

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.67

13

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.86

14

GASKET 256113960000

90430-06014-00

Unavailable

15

CLAMP

90465-08062-00

$3.45

16

COVER, CRANKCASE 3

BR9-15431-00-00

Unavailable

17

OIL SEAL(4GY)

93101-14164-00

Unavailable

18

WASHER (566)

90201-15701-00

Unavailable

19

CIRCLIP

99009-22500-00

Unavailable

20

GASKET, CRANKCASE COVER 3

BR9-15462-00-00

Unavailable

21

PIN, DOWEL

99530-12016-00

Unavailable

22

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.67

23

COVER, 1

33D-15415-20-00

Unavailable

24

GASKET

33D-15453-00-00

Unavailable

25

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable

26

BOLT, FLANGE DEEP RECESS

95E32-06070-00

Unavailable
