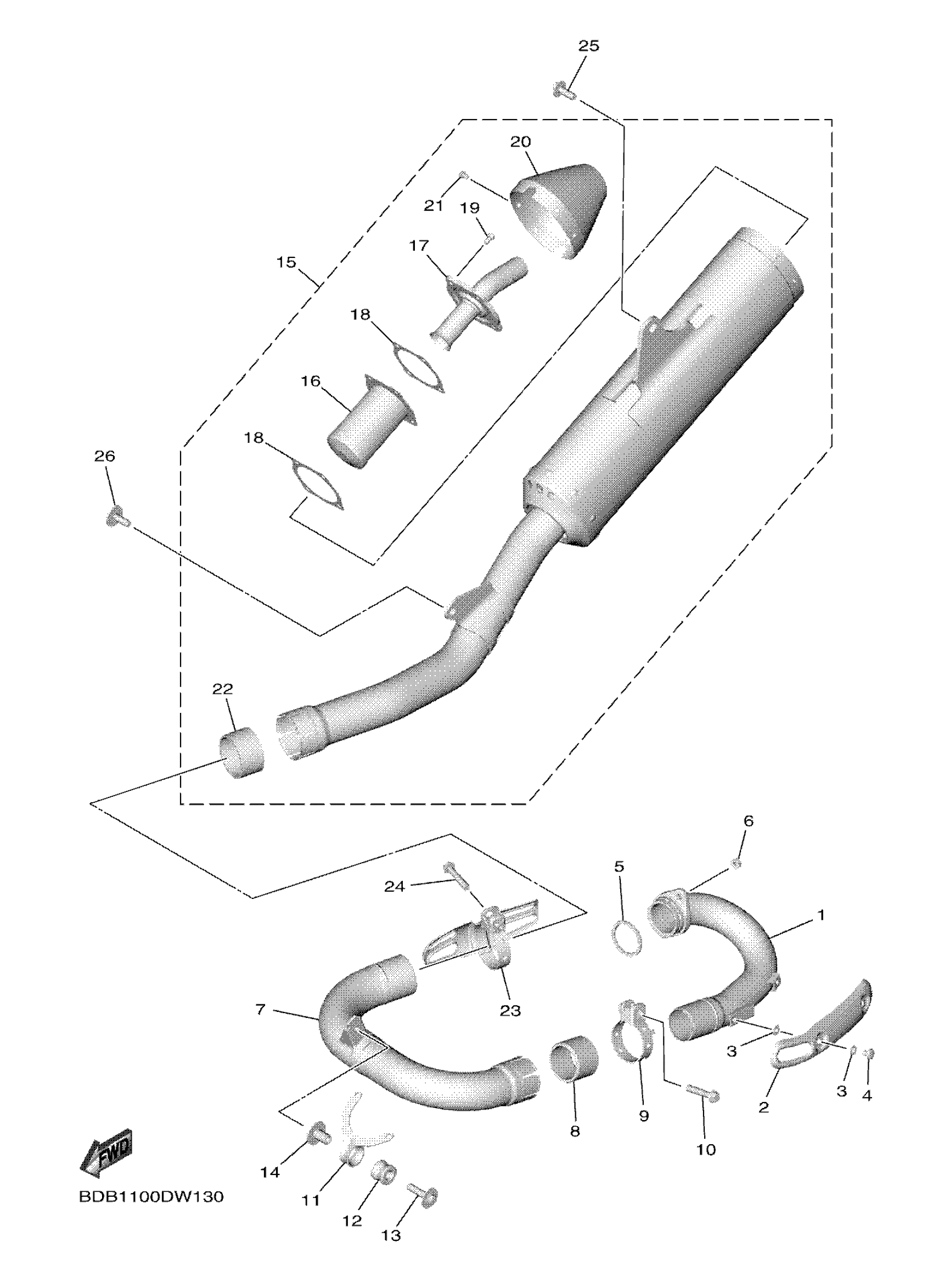

Yamaha WR450FP (WR450F) BDBA 2023 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

B2W-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1SL-14628-00-00

$32.59

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$0.58

5

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

6

NUT, FLANGE(7NB)

95780-06500-00

$1.88

7

PIPE, EXHAUST 2

B2W-14621-00-00

Unavailable

8

GASKET, MUFFLER

5XD-14714-00-00

$24.60

9

BAND, SILENCER

1SL-14788-00-00

$26.38

10

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.24

11

STAY, EXHAUST PIPE 1

B2W-14639-00-00

Unavailable

12

DAMPER, MUFFLER

5VY-14747-00-00

$11.48

13

BOLT, WITH WASHER

90119-08174-00

$4.62

14

COLLAR

90387-08081-00

$6.94

15

MUFFLER COMP.

BDB-14701-00-00

$648.99

16

SPARK ARRESTER ASSY

5TJ-14780-00-00

Unavailable

17

PIPE, TAIL

BAK-14784-00-00

Unavailable

18

GASKET, EXHAUST PIPE

5TJ-14623-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

Unavailable

20

CAP

5TJ-14799-00-00

Unavailable

21

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

22

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

23

BAND, MUFFLER

BR9-14715-00-00

Unavailable

24

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.24

25

BOLT, WITH WASHER

90119-08170-00

Unavailable

26

BOLT, WITH WASHER

90119-08178-00

Unavailable
