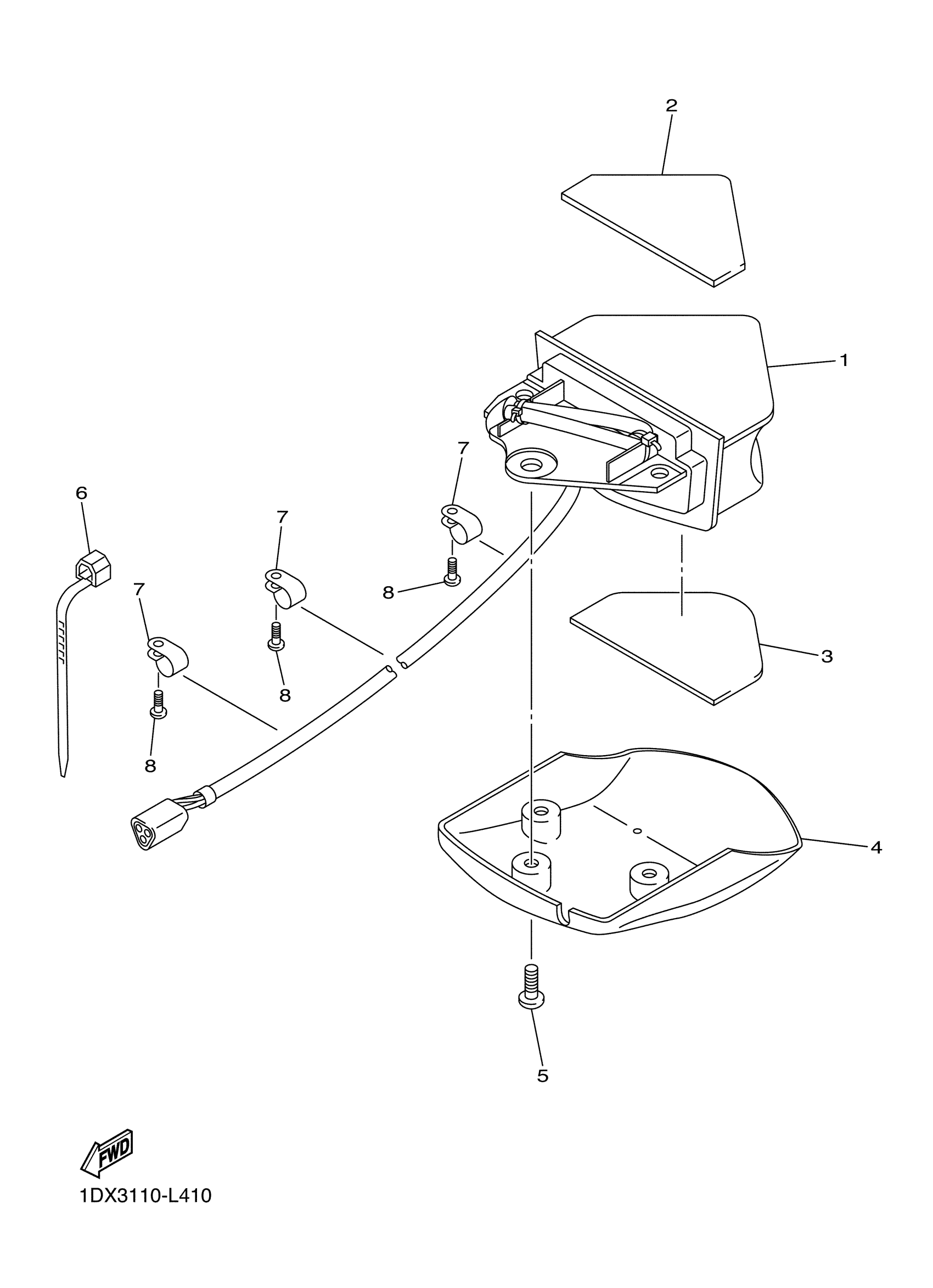

Yamaha WR450FE (WR450F) 1DXC 2014 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

BNK-84710-00-00

$216.26

2

DAMPER, TAIL 1

5UM-84736-E0-00

$3.94

3

DAMPER, TAIL 2

5UM-84737-E0-00

Unavailable

4

COVER, TAILLIGHT

5UM-84716-E0-00

Unavailable

5

SCREW, TAPPING

97702-50016-00

$1.85

6

CLAMP(4FM)

90464-15195-00

$2.57

7

CLAMP

90464-11M18-00

$5.31

8

SCREW, TAPPING

97702-40010-00

$2.30
