2014 Yamaha WR450F (WR450FE) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2014 Yamaha WR450F (WR450FE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

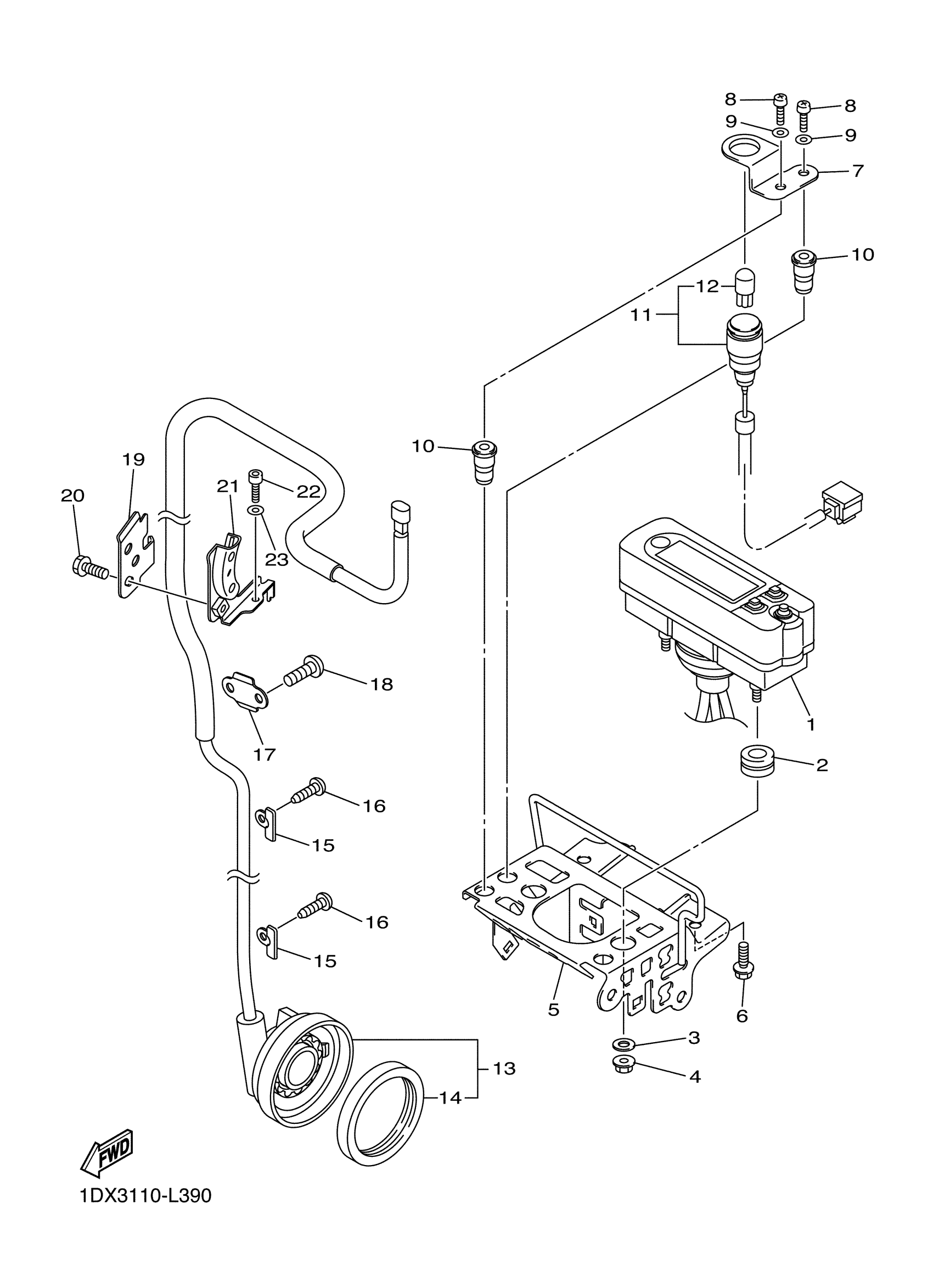

2014 Yamaha WR450F (WR450FE) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY (MPH)

1DX-83500-20-00

—
Out of stock

2

GROMMET

90480-14012-00

—

$10.20

In stock

3

WASHER, PLATE

90201-05021-00

1

$1.65

In stock

4

NUT, FLANGE

95702-05500-00

1

$0.74

In stock

5

BRACKET, METER

1DX-83519-00-00

—
Out of stock

6

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock

7

BRACKET, INDICATOR LIGHT 2

1DX-83575-00-00

—
Out of stock

8

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

9

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

10

NUT

90179-05013-00

—
Out of stock

11

PILOT LIGHT ASSY

1DX-83530-00-00

—
Out of stock

12

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

13

SENSOR, SPEED

5TJ-83755-C3-00

1
Out of stock

14

SEAL,OIL

93105-47007-00

1
Out of stock

15

PLATE 2

5TJ-8375F-C0-00

1
Out of stock

16

SCREW, TAPPING

97702-40010-00

—

$2.46

In stock

17

PLATE 1

5TJ-8375E-C0-00

—
Out of stock

18

BOLT, BUTTON HEAD

92012-05008-00

—

$2.34

In stock

19

CLAMP

5UM-83595-E0-00

—
Out of stock

20

BOLT, FLANGE

90105-06105-00

—

$6.32

In stock

21

BRACKET 1

5UM-23591-E0-00

—
Out of stock

22

BOLT, BUTTON HEAD

92012-06012-00

—

$2.49

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
