2012 Yamaha WR25R (WR25RBL) Headlight Diagram

← All diagrams

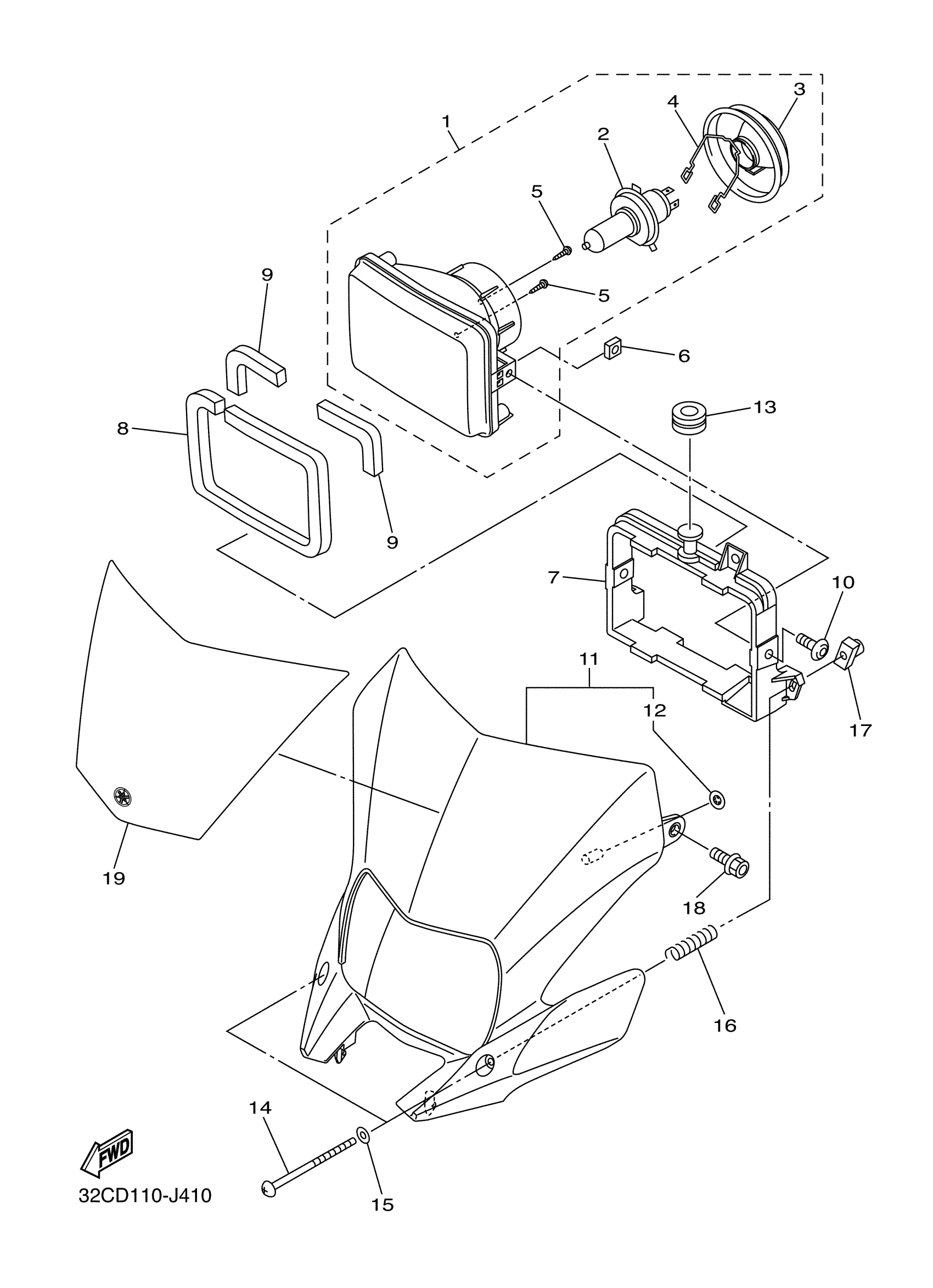

Find the part on the Headlight diagram for your 2012 Yamaha WR25R (WR25RBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha WR25R (WR25RBL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

32C-84310-00-00

—

$400.45

In stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

CAP

32D-84378-00-00

—

$43.14

In stock

4

SPRING

32D-84335-00-00

—

$36.94

In stock

5

SCREW

32D-84726-00-00

—

$7.40

In stock

6

NUT

32D-84117-00-00

1

$21.51

In stock

7

STAY, HEADLIGHT 1

32D-84118-00-00

1

$65.86

In stock

8

DAMPER

32D-84527-00-00

1

$6.78

In stock

9

DAMPER

32D-84553-00-00

1

$5.93

In stock

10

—

$4.40

In stock

11

BODY ASSY

32D-84330-00-00

—

$29.29

In stock

12

NUT, SPRING(8AJ)

90183-05068-00

1

$7.46

In stock

13

GROMMET

90480-16008-00

1

$5.28

In stock

14

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

15

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

16

SPRING, ADJUST

341-84332-60-00

—

$8.54

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock

19

GRAPHIC

32D-8411B-00-00

—

$38.80

In stock
