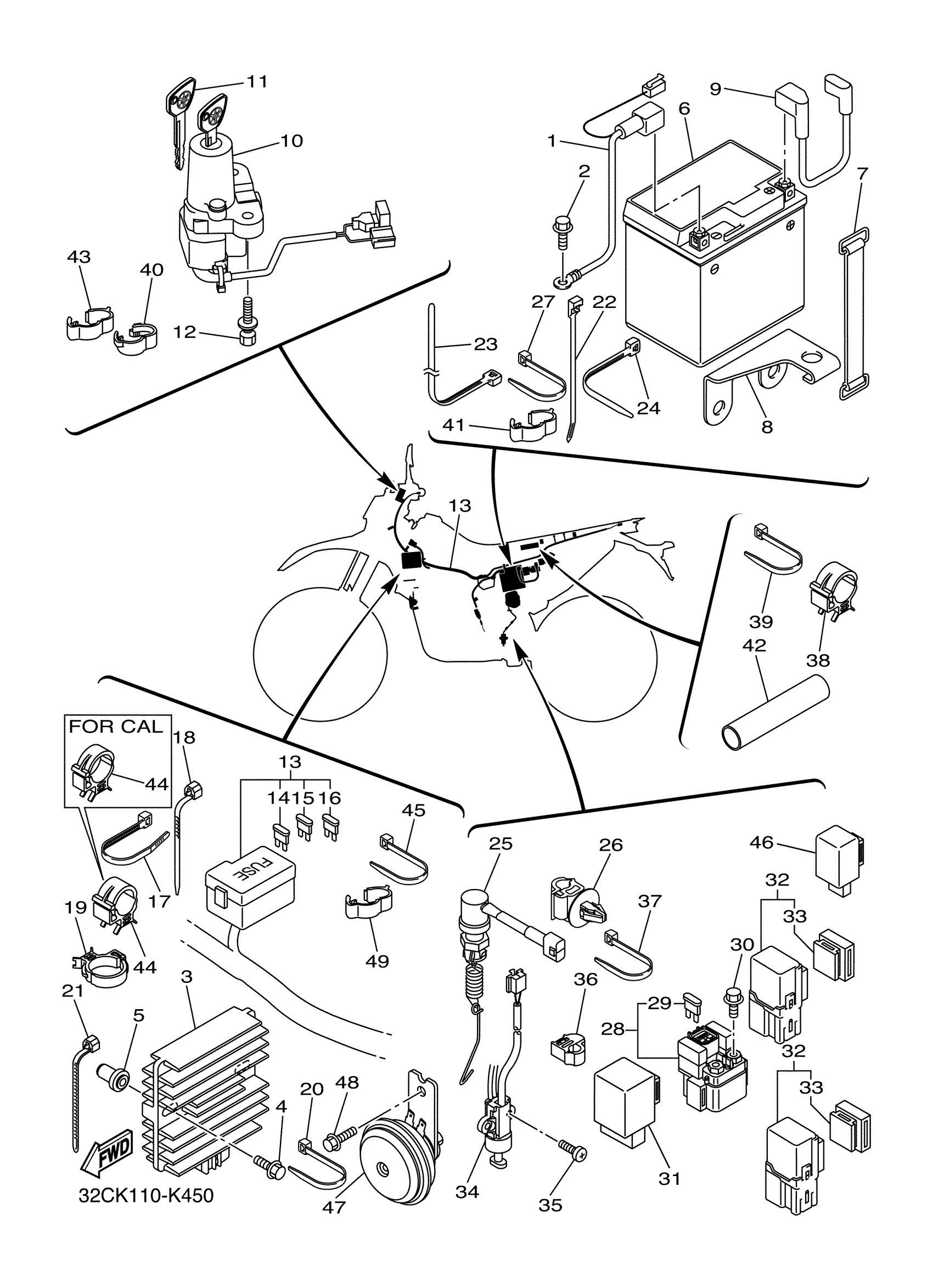

Find the part on the Electrical 2 diagram for your 2012 Yamaha WR25R (WR25RBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha WR25R (WR25RBL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

3D7-82116-00-00

—
Out of stock

2

BOLT, FLANGE

95022-06014-00

1
Out of stock

3

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

1
Out of stock

4

BOLT, FLANGE

95022-06030-00

1
Out of stock

5

NUT

90179-06020-00

1
Out of stock

6

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

1
Out of stock

7

BAND, BATTERY

22F-82131-00-00

1
Out of stock

8

HOOK, BATTERY BAND

3D7-21365-00-00

—
Out of stock

9

WIRE, PLUS LEAD

3D7-82115-00-00

1
Out of stock

10

MAIN SWITCH STEERING LOCK

32D-82501-11-00

—
Out of stock

11

KEY, BLANK (5SJ1)

90890-56028-00

1
Out of stock

12

BOLT

90109-08196-00

1
Out of stock

13

WIRE HARNESS ASSY

32C-82590-10-00

—
Out of stock

14

FUSE (7.5A-BL)

5JJ-82151-00-00

1
Out of stock

15

FUSE (15A)

67F-82151-50-00

1
Out of stock

16

. FUSE (10A)

67F-82151-40-00

1
Out of stock

17

CLAMP

90465-10098-00

1
Out of stock

18

CLAMP(4FM)

90464-15195-00

—
Out of stock

19

CLAMP(4KM)

90464-25217-00

—
Out of stock

20

CLAMP

90464-16061-00

—
Out of stock

21

CLAMP

90464-25004-00

—
Out of stock

22

CLAMP

90464-99006-00

—
Out of stock

23

CLAMP

90464-20258-00

—
Out of stock

24

BAND

1UA-82591-00-00

—
Out of stock

25

STOP SWITCH ASSY

3D7-82530-01-00

—
Out of stock

26

CLAMP

90464-05001-00

—
Out of stock

27

CLAMP

90464-16061-00

—
Out of stock

28

STARTER RELAY ASSY (RC19-076A)

3D7-81940-00-00

—
Out of stock

29

FUSE (12V 30A)

1AE-82151-00-00

—
Out of stock

30

BOLT, FLANGE

95022-06008-00

—
Out of stock

31

RELAY ASSY

5VK-81950-43-00

—
Out of stock

32

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

—
Out of stock

33

HOLDER, RELAY

5JJ-81952-00-00

—
Out of stock

34

SWITCH, SIDE STAND

5KN-82566-41-00

—
Out of stock

35

SCREW, PAN HEAD(3YL)

98580-05014-00

1
Out of stock

36

CLAMP(4GY)

90464-05188-00

—
Out of stock

37

CLAMP

90464-16061-00

—
Out of stock

38

CLAMP(4HM)

90464-15192-00

—
Out of stock

39

CLAMP

90464-16061-00

—
Out of stock

40

CLAMP

90464-16001-00

—
Out of stock

41

CLAMP

90464-16003-00

—
Out of stock

42

HOSE

90446-27001-00

—
Out of stock

43

CLAMP

90464-16003-00

—
Out of stock

44

CLAMP(4GY)

90464-20191-00

—
Out of stock

45

CLAMP

90464-16061-00

—
Out of stock

46

FLASHER RELAY ASSY

4MY-83350-03-00

—
Out of stock

47

HORN

5XT-83371-00-00

—
Out of stock

48

BOLT, FLANGE

95817-06012-00

—
Out of stock

49

CLAMP

90464-16003-00

—
Out of stock
