2012 Yamaha WR25R (WR25RBL) Generator Diagram

← All diagrams

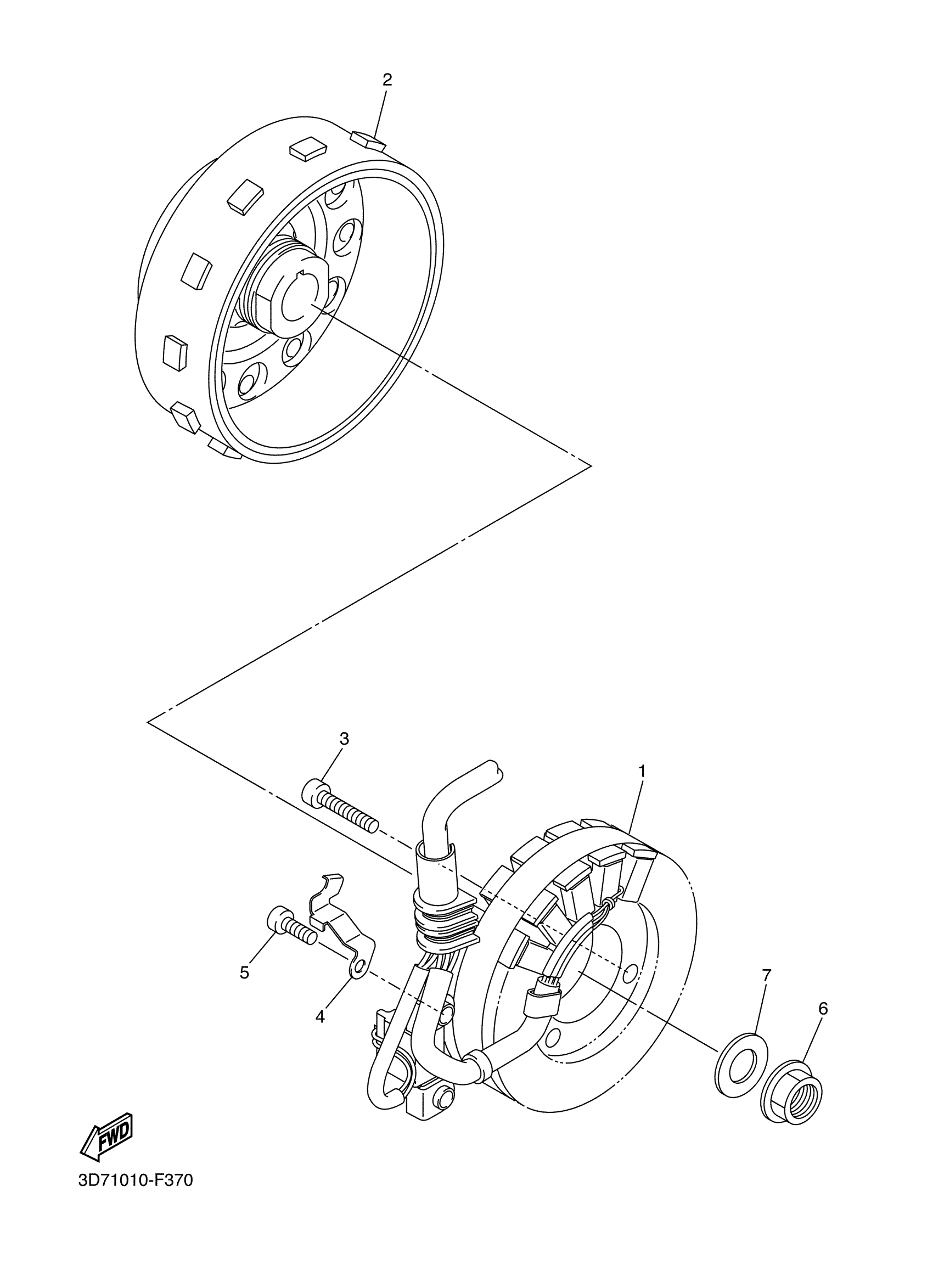

Find the part on the Generator diagram for your 2012 Yamaha WR25R (WR25RBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha WR25R (WR25RBL) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

3D7-81410-03-00

1
Out of stock

2

ROTOR ASSY

3D7-81450-00-00

1

$410.32

In stock

3

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

4

CLAMP 1

3D7-81528-00-00

—

$7.05

In stock

5

BOLT (33M)

91312-06014-00

1

$4.74

In stock

6

NUT(3EF)

90179-12657-00

1

$5.32

In stock

7

WASHER, PLATE

90201-12020-00

1

$6.42

In stock
