2002 Yamaha WR250F (WR250FP) Valve Diagram

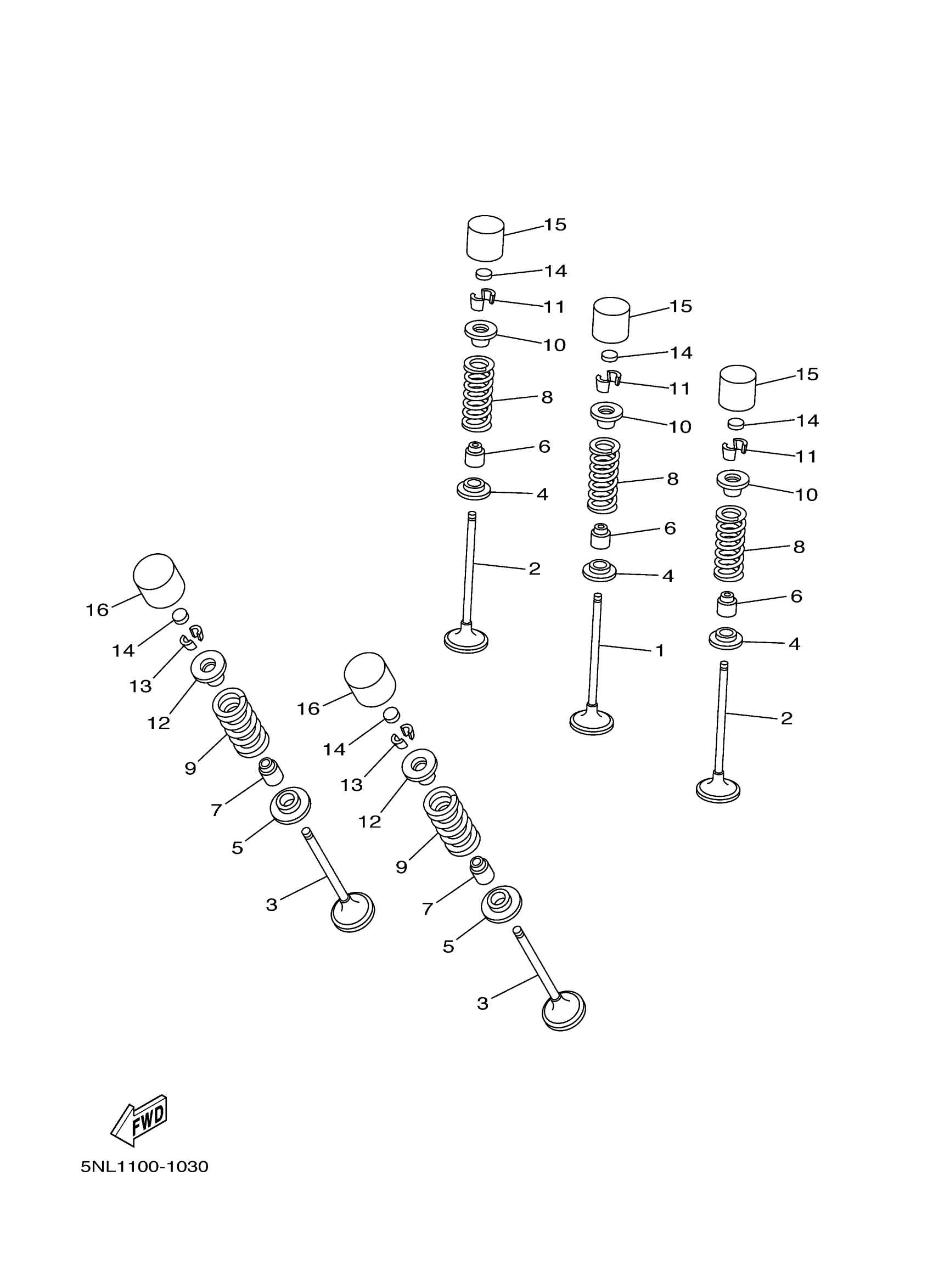

Find the part on the Valve diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
VALVE, INTAKE
5NL-12111-30-00
2
VALVE, INTAKE 2
5NL-12112-30-00
3
VALVE, EXHAUST
5NL-12121-10-00
4
SEAT, VALVE SPRING
5NL-12116-00-00
6
SEAL, VALVE STEM
4TV-12119-00-00
8
SPRING, VALVE INNER
5NL-12113-00-00
9
SPRING, VALVE OUTER
5NL-12114-00-00
10
RETAINER, VALVE SPRING
1HX-12117-00-00
11
COTTER, VALVE
1HX-12118-00-00
12
RETAINER, VALVE SPRING
1WG-12117-00-00
15
LIFTER, VALVE
3LN-12153-00-00
15
LIFTER, VALVE
3LN-12153-10-00
15
LIFTER, VALVE
3LN-12153-20-00
15
LIFTER, VALVE
3LN-12153-30-00
16
LIFTER, VALVE
3FV-12153-00-00
16
LIFTER, VALVE
3FV-12153-20-00
16
LIFTER, VALVE
3FV-12153-30-00
