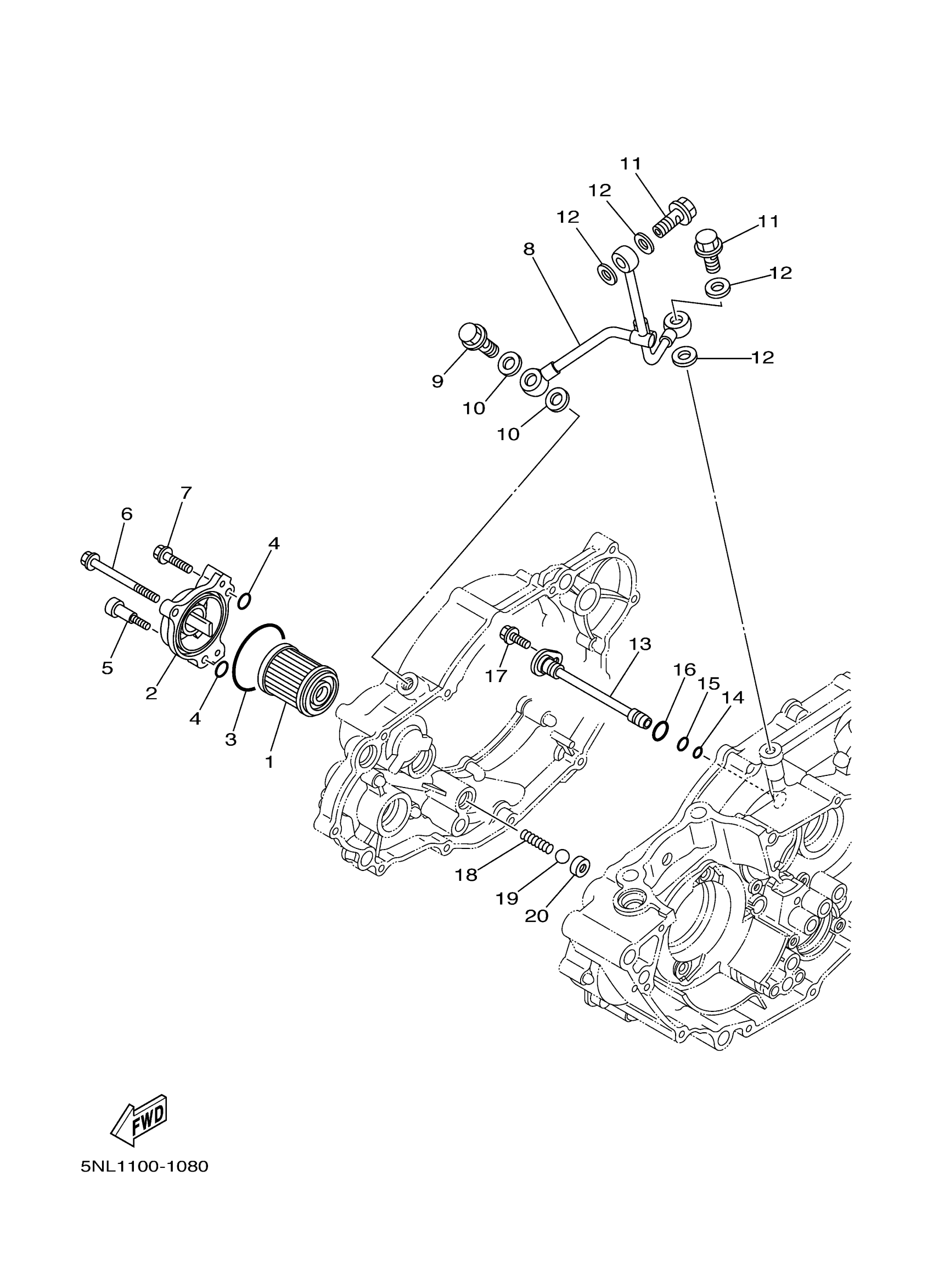

Yamaha WR250FP (WR250F) 5PH5 2002 OIL CLEANER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

1UY-13440-02-00

$14.64

2

COVER, OIL ELEMENT

5BE-13447-00-00

Unavailable

3

O-RING(52H)

93210-47675-00

$5.54

4

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.35

5

BOLT

90109-065G2-00

$2.49

6

BOLT, SMALL FLANGE

95027-06065-00

$2.48

7

BOLT, SMALL FLANGE

95027-06025-00

$3.18

8

PIPE, DELIVERY 1

5NL-13161-21-00

$130.58

9

BOLT, UNION(3GM)

90401-10159-00

$8.85

10

GASKET

90430-10188-00

$5.98

11

BOLT, UNION

90401-08006-00

$5.48

12

GASKET

90430-08119-00

$4.70

13

PIPE, DELIVERY 2

5NL-13171-00-00

$73.72

14

O-RING (11M)

93210-07540-00

$5.77

15

O-RING (137)

93210-09008-00

$8.31

16

O-RING(M01)

93210-12759-00

$4.84

17

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

18

SPRING, COMPRESSION(1VJ)

90501-043E0-00

$3.65

19

BALL

93503-08007-00

$2.35

20

SEAT, CHECK BALL

583-13113-00-00

$20.58
