2002 Yamaha WR250F (WR250FP) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

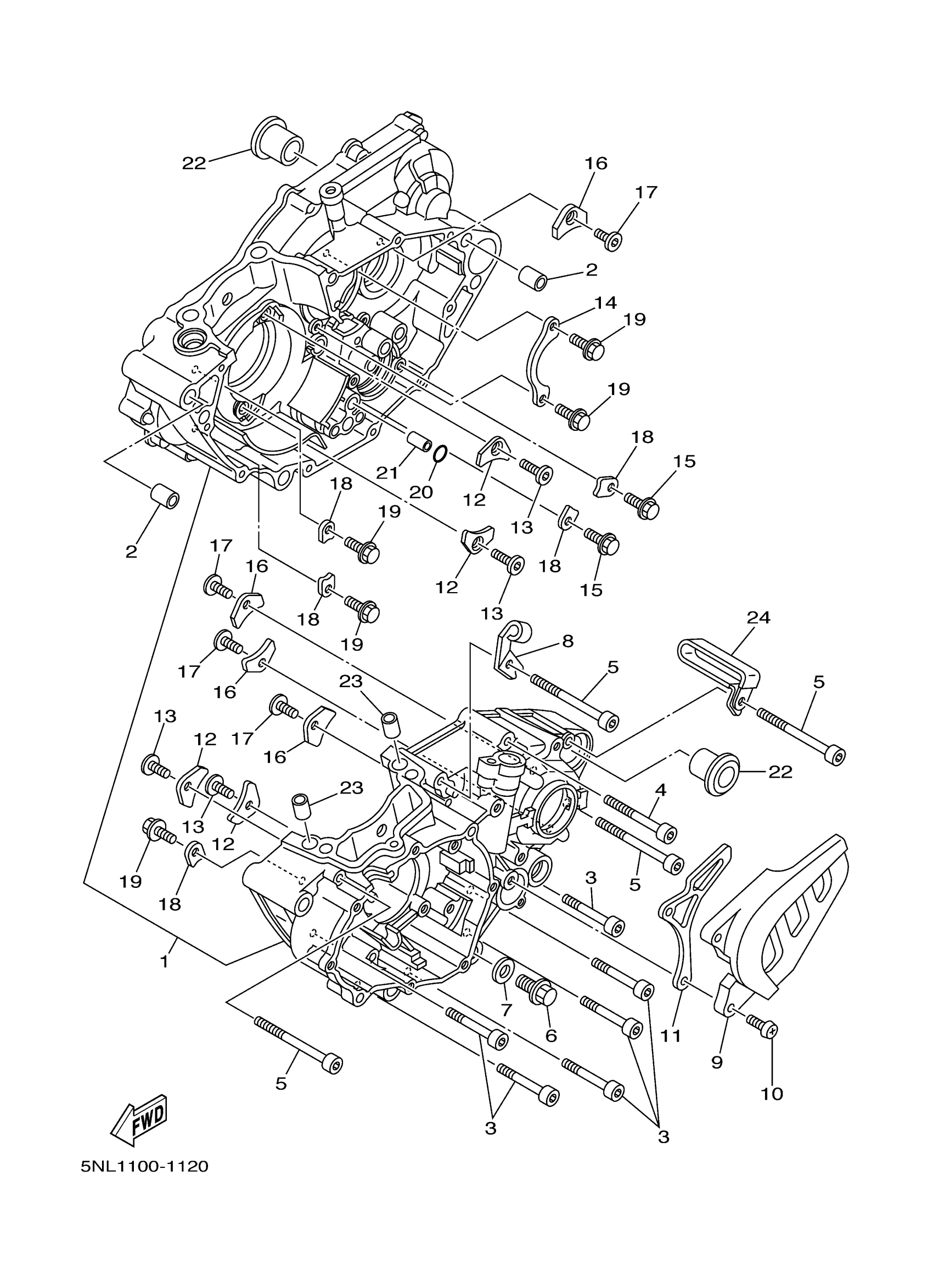

2002 Yamaha WR250F (WR250FP) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5XC-15100-09-YX

1
Out of stock

2

PIN, DOWEL(4XL)

93612-16254-00

1

$4.37

In stock

3

BOLT,SOCKET

91317-06045-00

1
Out of stock

4

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

5

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

6

BOLT, SMALL FLANGE

95027-10016-00

1
Out of stock

7

GASKET

90430-10188-00

1

$5.98

In stock

8

HOLDER, CLUTCH CABLE

5NL-15441-01-00

1
Out of stock

9

COVER, CRANKCASE 2

5BE-15421-20-00

1
Out of stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

GUIDE, CHAIN

5NL-17466-00-00

1
Out of stock

12

PLATE, BEARING COVER

5BE-15383-01-00

1

$9.09

In stock

13

SCREW, FLATHEAD (2H7)

90149-06126-00

1
Out of stock

14

PLATE, BEARING COVER

5NL-15388-00-00

1

$6.48

In stock

15

BOLT, FLANGE(4MY)

95027-06012-00

1

$3.28

In stock

16

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

17

SCREW, COUNTERSUNK

90151-06052-00

—

$6.38

In stock

18

PLATE, STOPPER 2

5DH-18562-00-00

—

$6.72

In stock

19

BOLT, FLANGE(4MY)

95027-06012-00

1

$3.28

In stock

20

O-RING (371)

93210-10197-00

—
Out of stock

21

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

22

COLLAR

90387-18007-00

—

$29.10

In stock

23

PIN, DOWEL(2VG)

99530-10116-00

—

$3.37

In stock

24

CLAMP

90465-10013-00

—
Out of stock
