2002 Yamaha WR250F (WR250FP) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

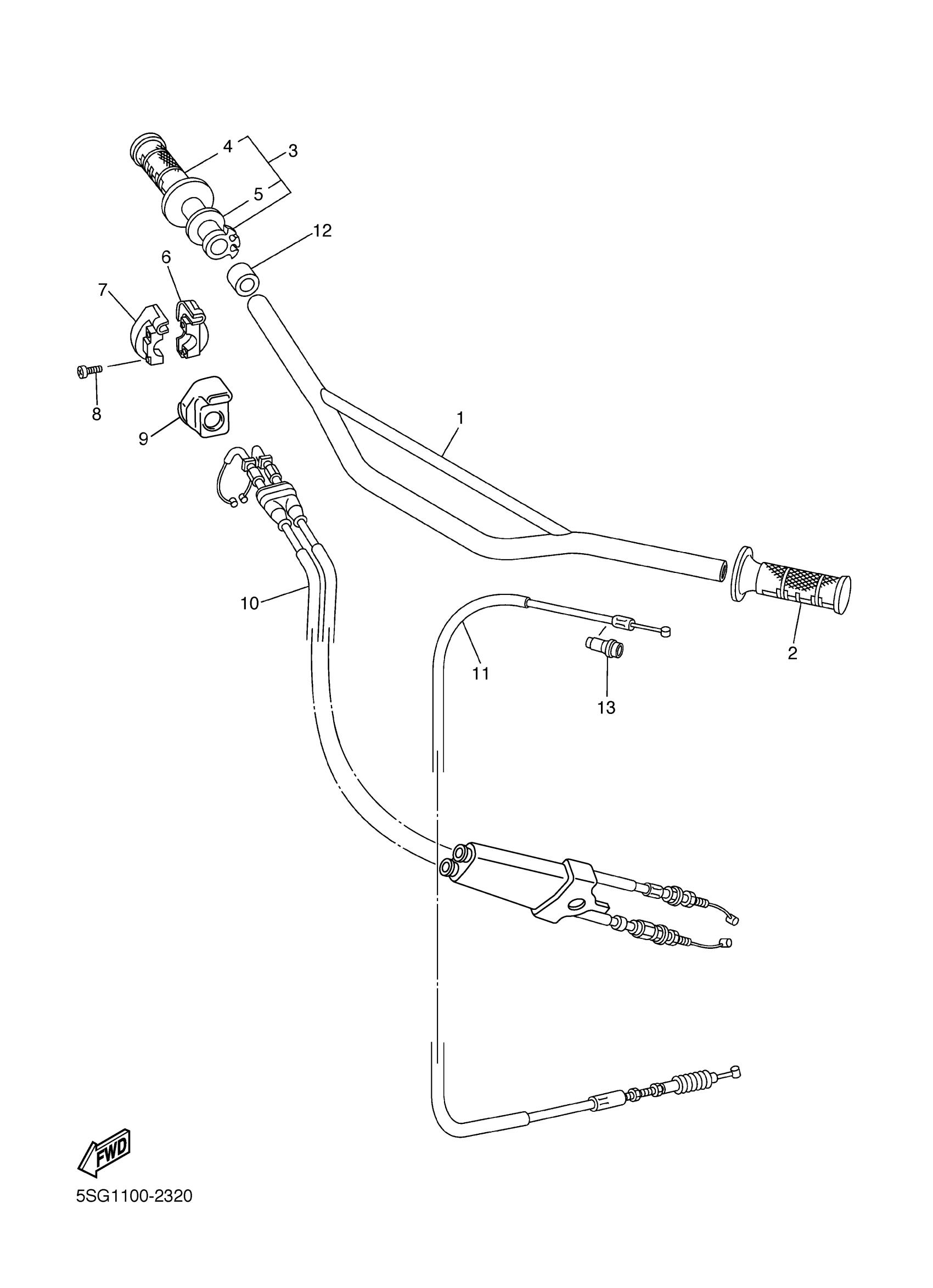

2002 Yamaha WR250F (WR250FP) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4XM-26111-00-00

1
Out of stock

2

GRIP (LEFT)

4GY-26241-00-00

1

$25.66

In stock

3

GRIP ASSY

5BE-26240-00-00

1

$58.60

In stock

4

GRIP (RIGHT)

4GY-26242-00-00

1

$25.66

In stock

5

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

6

CAP, GRIP UPPER

5BE-26281-01-00

1

$52.66

In stock

7

CAP, GRIP LOWER

5BE-26282-00-00

1

$33.86

In stock

8

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

9

COVER, CAP GRIP

5SF-26287-11-00

1

$14.82

In stock

10

THROTTLE CABLE ASSY

5SF-26302-00-00

—
Out of stock

11

CABLE, CLUTCH

5SF-26335-00-00

1
Out of stock

12

COLLAR(1TG)

90387-225N2-00

1
Out of stock

13

BOOT, CABLE

5HD-26342-00-00

1
Out of stock
