2002 Yamaha WR250F (WR250FP) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

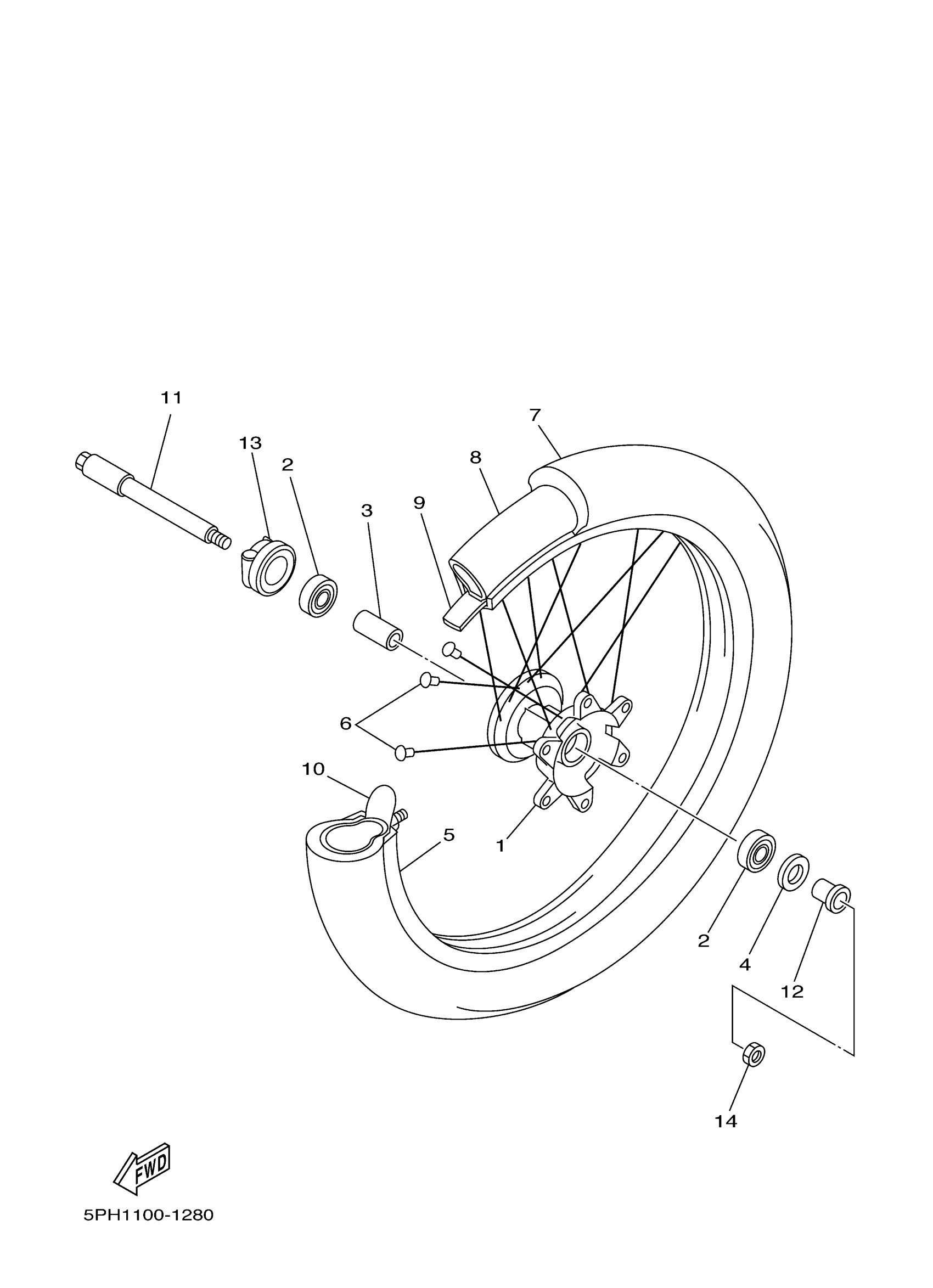

2002 Yamaha WR250F (WR250FP) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

5NG-25111-50-00

—
Out of stock

2

BEARING(2JN)

93306-90403-00

1

$38.65

In stock

3

SPACER, BEARING

5NY-25117-00-00

1

$26.20

In stock

4

OIL SEAL

93102-26468-00

1

$18.32

In stock

5

RIM (1.60-21)

94416-21005-00

—

$372.95

In stock

6

SPOKE SET, FRONT

5NY-25104-00-00

1

$207.00

In stock

7

TIRE FRNT 80/100-21 51M D739FA

94108-21015-00

1
Out of stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

SPACER, BEAD

5SF-25394-00-00

1

$29.40

In stock

11

AXLE, WHEEL

5BE-25181-00-00

1
Out of stock

12

COLLAR, WHEEL

5XC-25183-G0-00

1

$31.57

In stock

13

GEAR UNIT ASSY

5NG-25190-50-00

—
Out of stock

14

NUT(4SR)

90179-16672-00

1
Out of stock
