- WR250FP (WR250F) 5PH5 2002
FRONT FORK

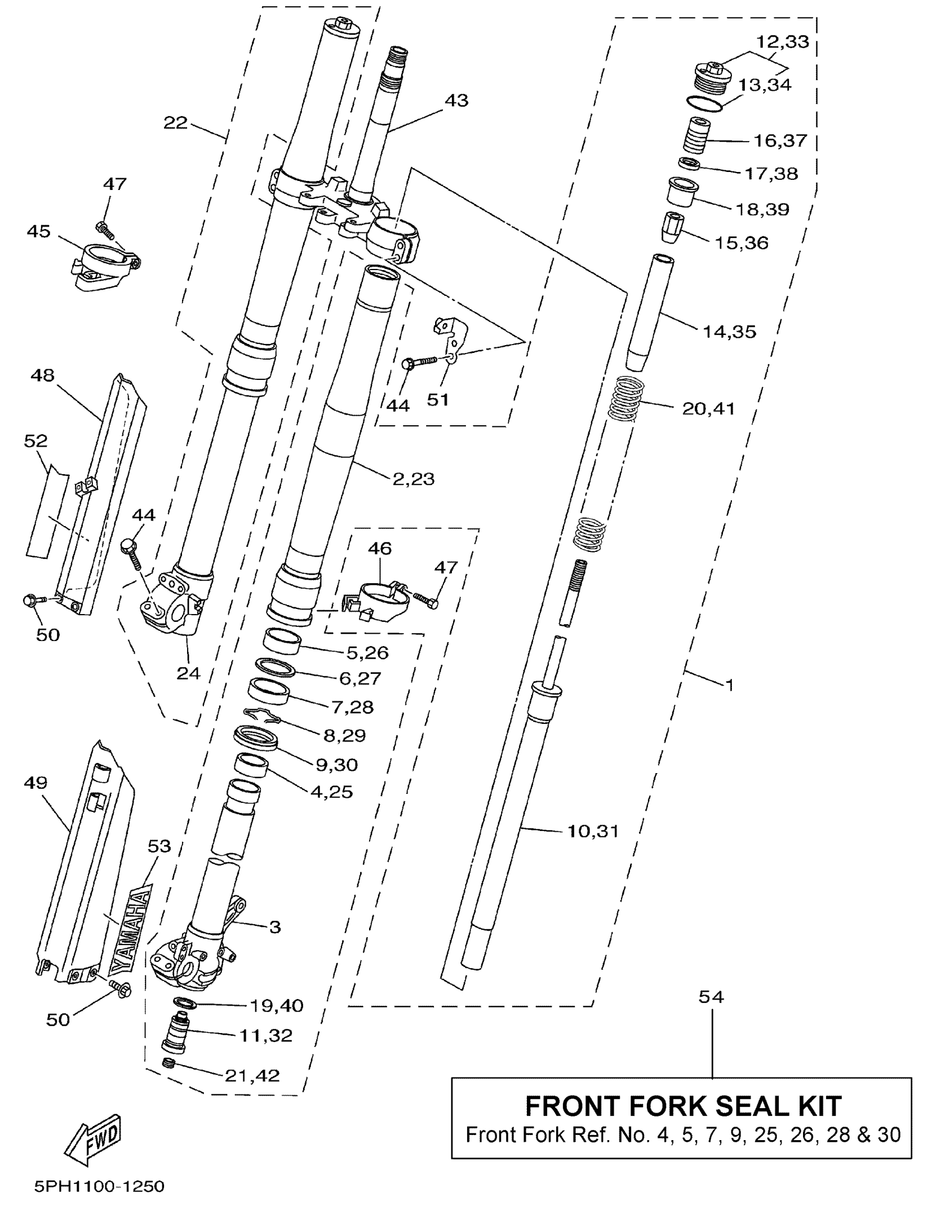

2002 Yamaha WR250F (WR250FP) Front Fork Diagram
Find the part on the Front Fork diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
5PH-23102-50-00
2
. TUBE, OUTER (RIGHT)
5HD-23136-L0-00
3
. INNER TUBE COMP 2
5DH-23120-L0-00
10
. CYLINDER COMP, FRONT FORK
5NG-23170-60-00
11
. VALVE COMP
5PH-2316A-50-00
12
. BOLT, CAP
5NY-23111-L0-00
15
. NUT, SPECIAL
5HD-23393-L0-00
16
RUBBER
5MV-23195-L0-00
18
. SPACER
5DH-23118-L0-00
19
GASKET
4SS-23158-L0-00
20
SPRING, FRONT FORK
5NL-23141-00-00
21
PLUG
3JD-2312G-L0-00
22
FRONT FORK ASSY (R.H)
5PH-23103-50-00
23
. TUBE, OUTER (RIGHT)
5HD-23136-L0-00
24
INNER TUBE COMP.1
5BF-23110-L0-00
31
. CYLINDER COMP, FRONT FORK
5NG-23170-60-00
32
. VALVE COMP
5PH-2316A-50-00
33
. BOLT, CAP
5NY-23111-L0-00
36
. NUT, SPECIAL
5HD-23393-L0-00
37
RUBBER
5MV-23195-L0-00
39
. SPACER
5DH-23118-L0-00
40
GASKET
4SS-23158-L0-00
41
SPRING, FRONT FORK
5NL-23141-00-00
42
PLUG
3JD-2312G-L0-00
43
UNDER BRACKET COMP.
5SG-23340-00-00
44
BOLT 1
5NY-23346-L0-00
47
BOLT 1
4SS-23346-L0-00
48
PROTECTOR COMP., 2
5BF-2314J-00-00
51
GUIDE, CABLE
5HC-2331E-00-00
52
EMBLEM, YAMAHA
4XL-2153A-11-00
53
EMBLEM, YAMAHA
4XL-2153A-11-00
54
FORK SEAL KIT (TWO FORKS)
5ET-W003B-00-00
